The desired residual of the Mumps solver could not be achieved

Using SimScale Solid Mechanics / FEA
#1

I’m getting the subject error message from my project https://www.simscale.com/projects/Buk/belleville_1

I’ve tried both suggested solutions – increasing the residual and finess of the mesh – without improvement.

I suspect it is something really trivial – the project is about as simple as it gets – but I cannot see it?

Anyone?

#2

Hi there, what exactly are you trying to simulate here? :smiley:

Best regards,
Fillia

#3

The compression of a belleville washer

#4

Hi @Buk,

Your model has rigid body motion. Currently, there is nothing holding it in the Dx or Dz directions.

If you add a soft spring as shown below the model should run just fine.

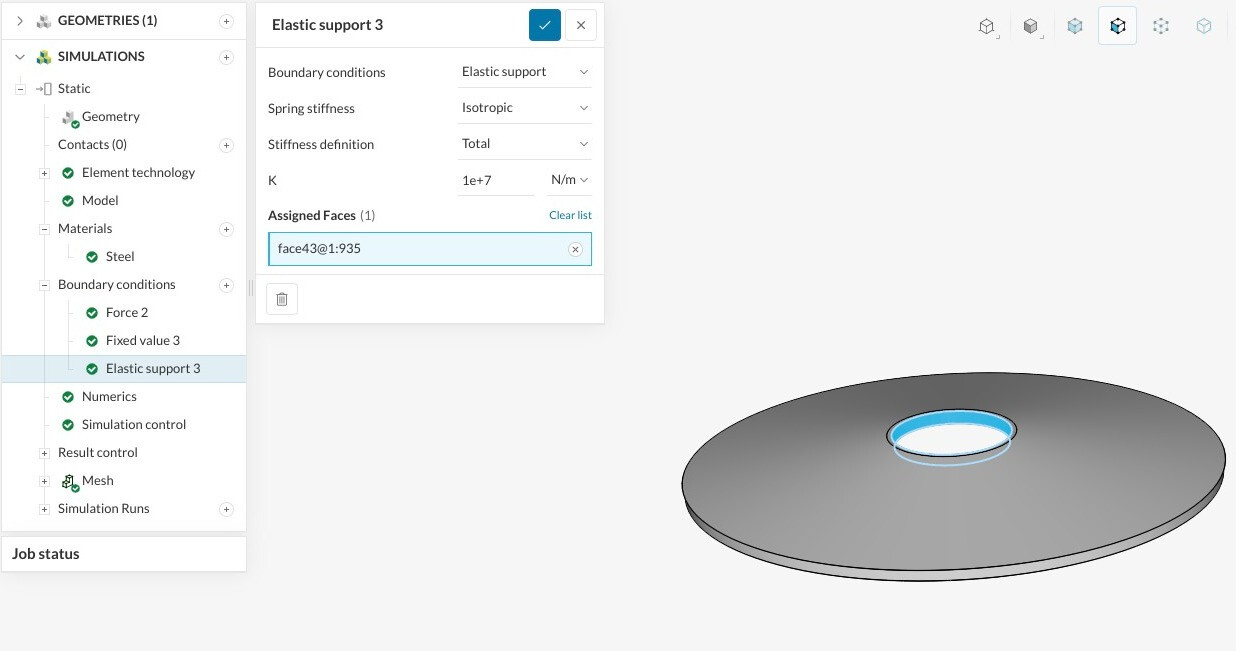

image1236×651 72.4 KB

Good luck!
Christopher

#5

Thanks Christopher.

Especially for providing the solution as well as the diagnosis.

Buk
