'test 2' simulation project by pavel1900


#1

I created a new simulation project called 'test 2':

test 2 only


More of my public projects can be found here.


#2

Hey @pavel1900,

Your geometry seems to have too many small faces, which would be difficult to mesh. Try simplifying your geometry as much as possible in order to mesh it properly.

If you have any question/s, feel free to ask.

-Ahmed (@ahmedhussain18)


#3

Hey @pavel1900!

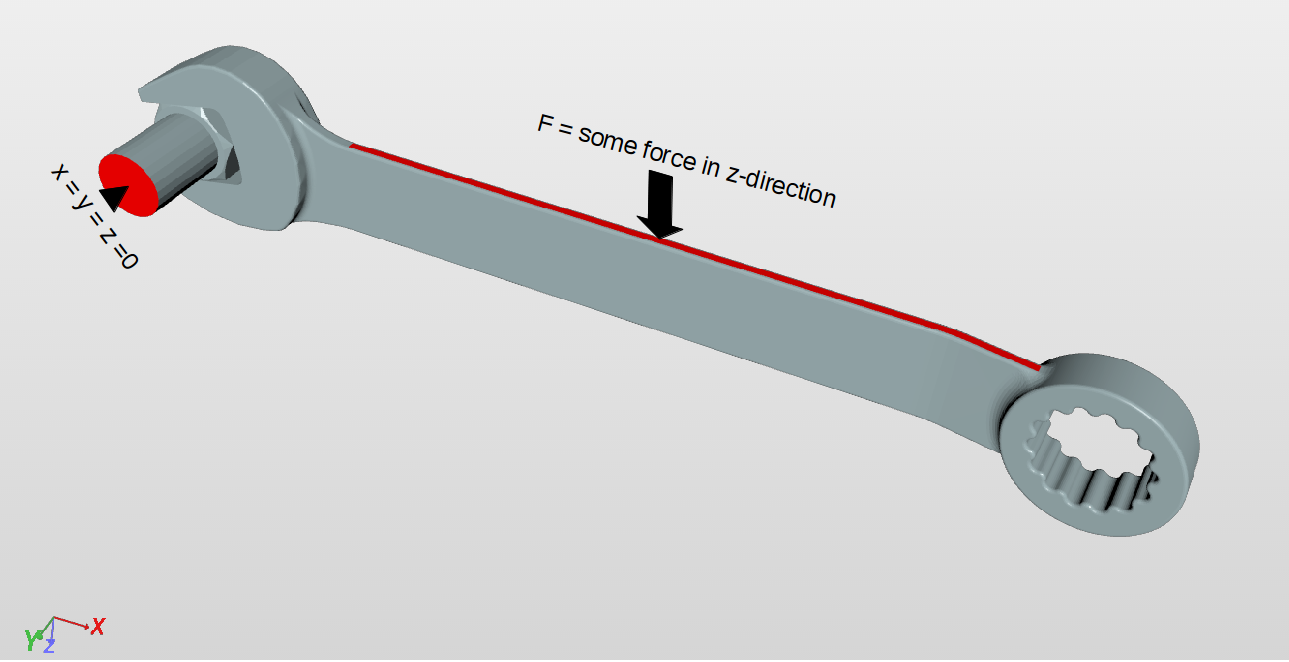

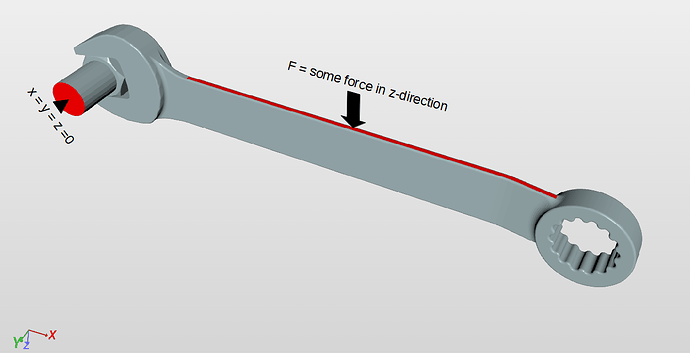

Nice to see that the mesh is finally done! :smile: Now, why not to do a quick stress analysis? Just use Static analysis - advanced and apply the load and constraint as below.

i.e. fix the bolt in all directions and apply some force in z-direction. I am pretty sure it will look awesome :wink:

If you need any help, just comment here and I will try to help you as much as possible. Happy Simulating!

-Ahmed (@ahmedhussain18)
