Streamline plot for flow simulation

Hi folks, maybe this is a constantly asked question and it has been answered somewhere else already. However since I am quite new into SimScale and have serious lack of time for recherche, I kindly ask you, to give me a hint, how I can create a streamline plot for a flow simulation.

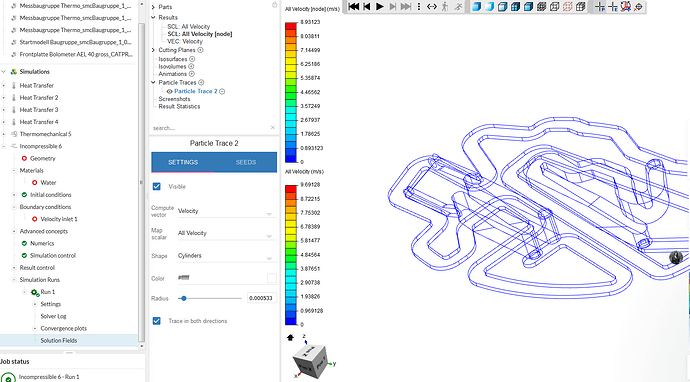

I tried solution > results > Velocity and added a particle trace. But the trace remains empty. :confused:

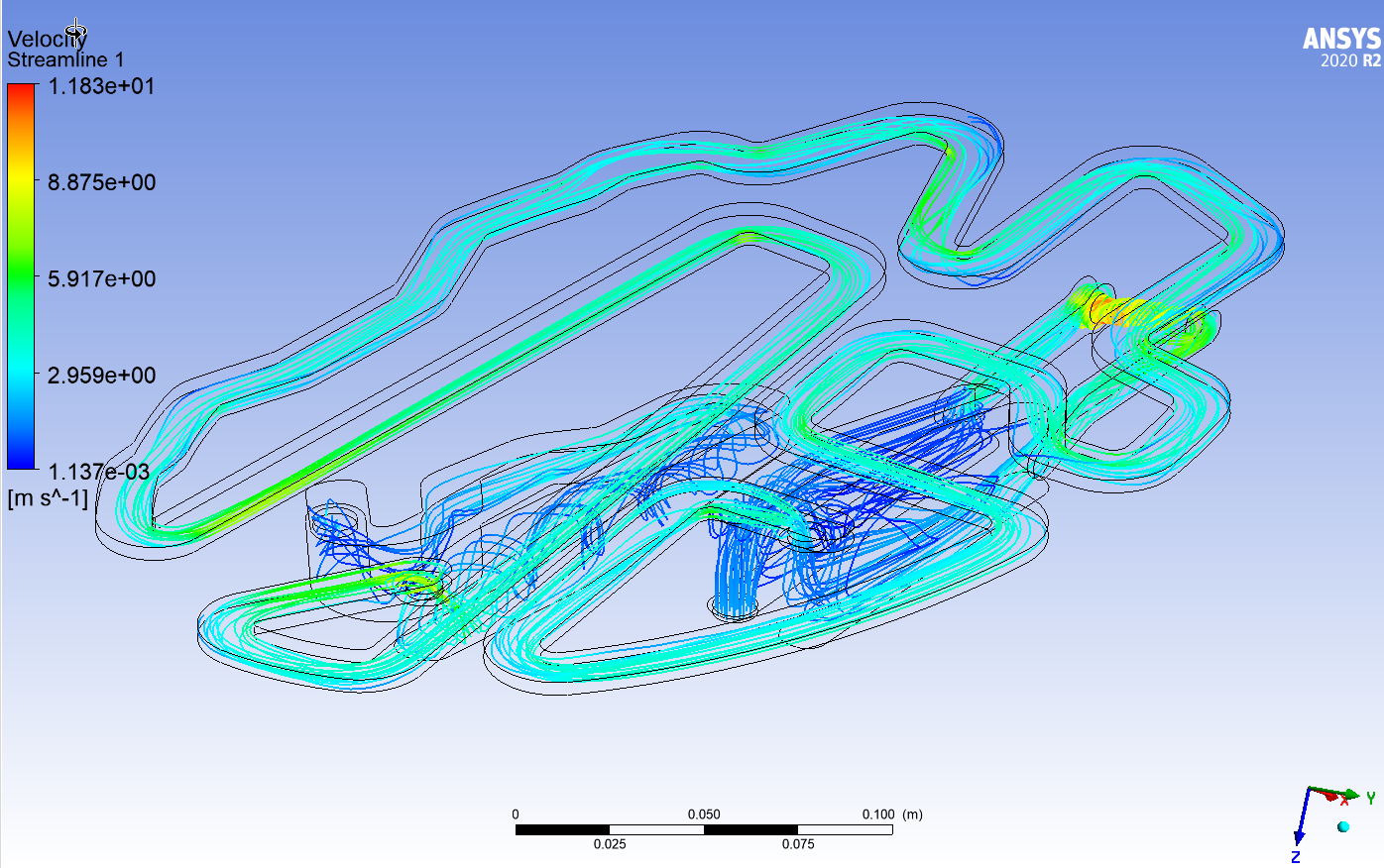

My desired result is something similar to this:

1 Like

Hey, thank you for using the forum!

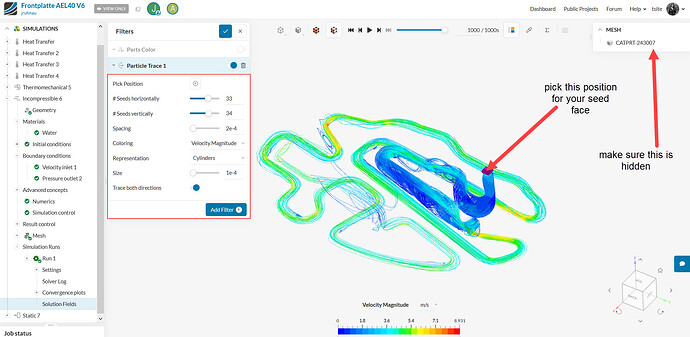

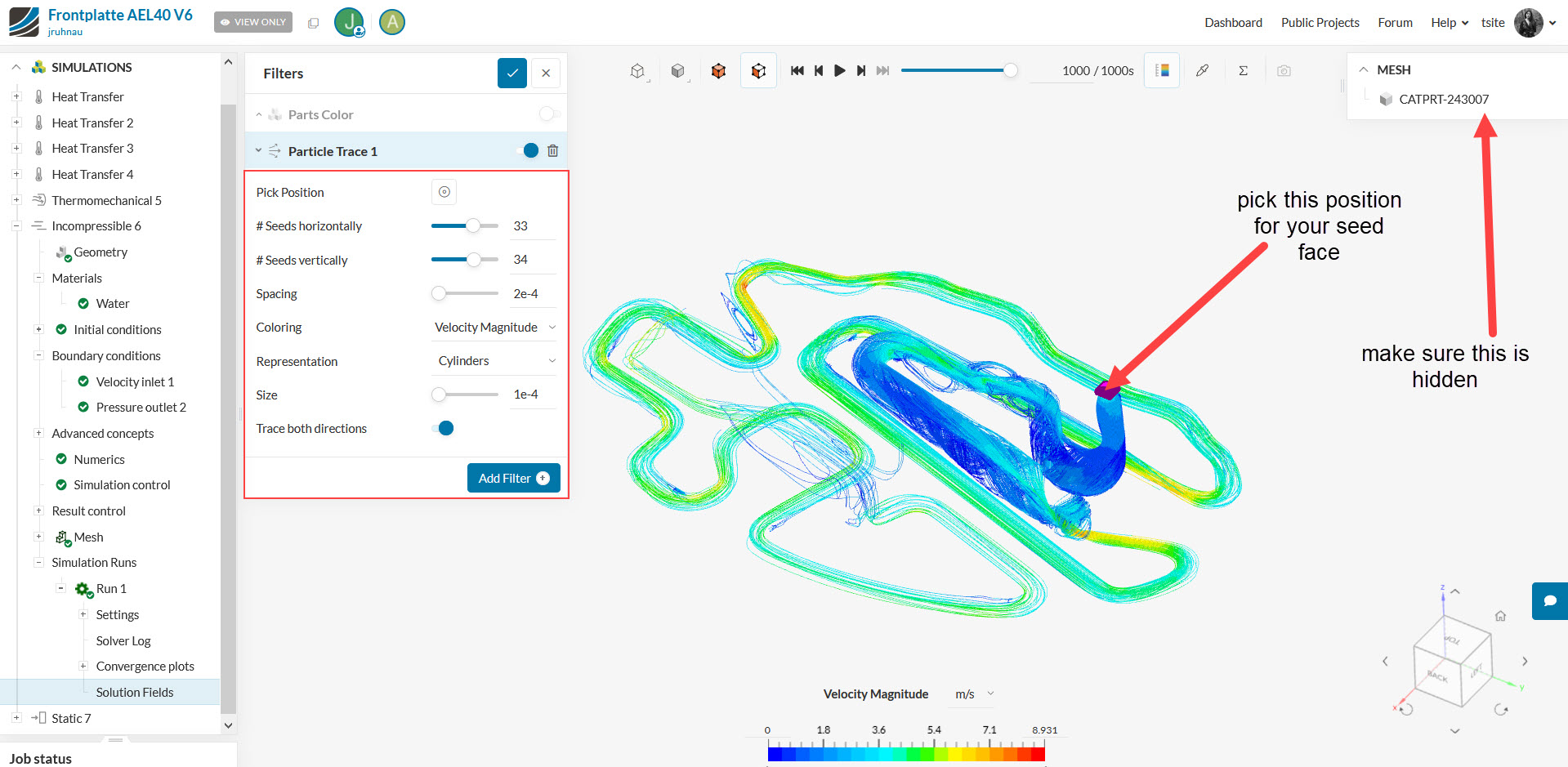

I tried to recreate the desired results:


Let me know what you think!

Best regards,
Fillia
