Hi again @czhang!

Will ask for that! Sending you a pm as soon as I know more!

Cheers!

Jousef


#26

I have the exact same problem, how did you fix it?


#27

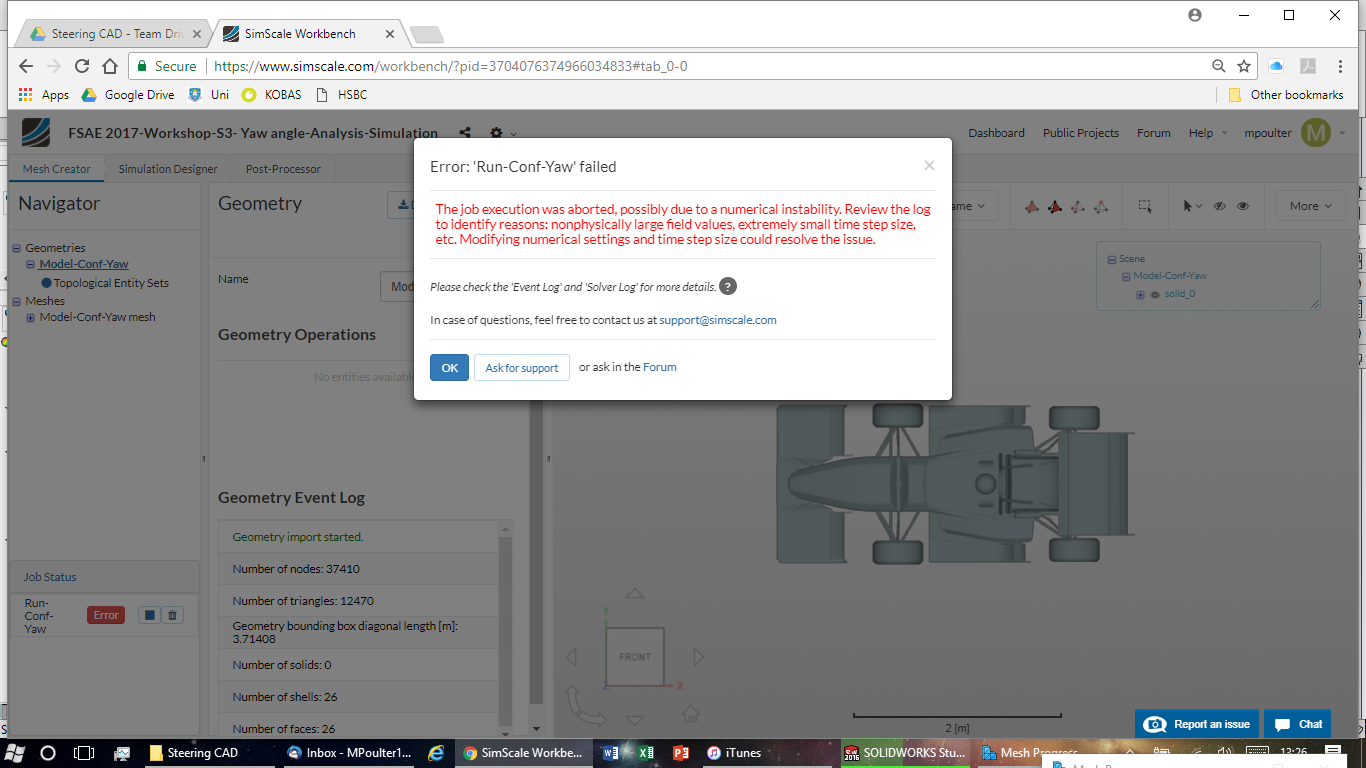

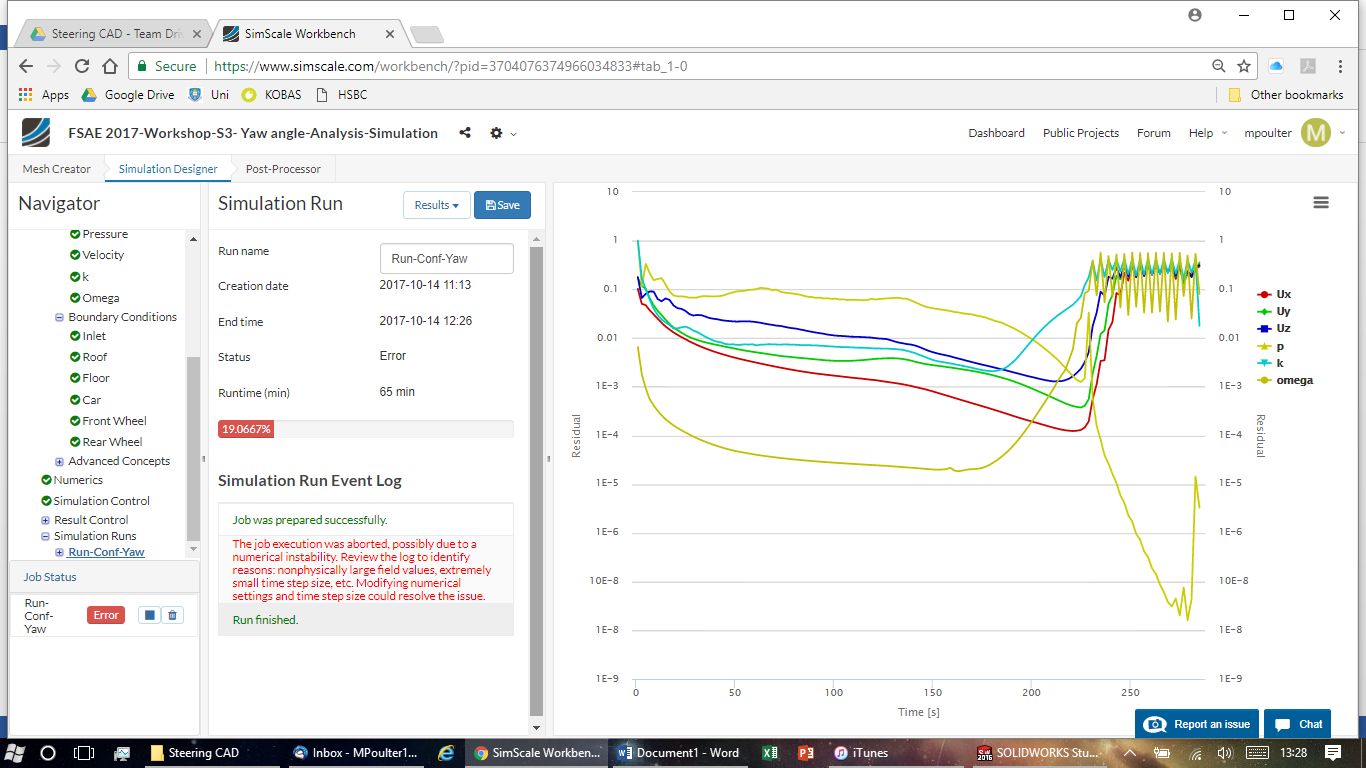

Can someone help me here. Run the simulation multiple times. Rechecked the mesh but could not find any issues.


#28

Hi @enasufi & @mpoulter!

A good approach is to see how others have set up the simulation which is often faster than comparing the project with the step-by-step tutorial. Here is a project from user @atargat for instance who managed to make the simulation run till the end. Have a look at his project.

Compare your project with his side-by-side and see if you missed a small detail that causes the divergence.

Cheers!

Jousef


#29

Hi @jousefm
Could you tell me please if there is a problem with the processing of Tutorial Session 4 and also with the homework for it?
I have not received any notification on my email yet.

Thank you in advance.

Best regards,
Mihnea


#30

Hi @mgall!

Maybe my colleague @drodriguez32 can give you more information about that.

Cheers and thanks for contacting me!

Jousef


#31

Hi @drodriguez32,
Could you tell me please if there is a problem with the processing of Tutorial Session 4 and also with the homework for it?
I have not received any notification on my email yet.

Thank you in advance.

Best regards,
Mihnea


#32

Hey jousefm, I missed the 4th webinar as well and have the same query. Additionally, when will the recording be uploaded to the Youtube channel.
Thanks.


#33

Hey @rishikesh_gr!

Will inform you soon when the last webinar will be released :+1:

Best,

Jousef


#34

Hi!!

I have some problem on Post-Processing

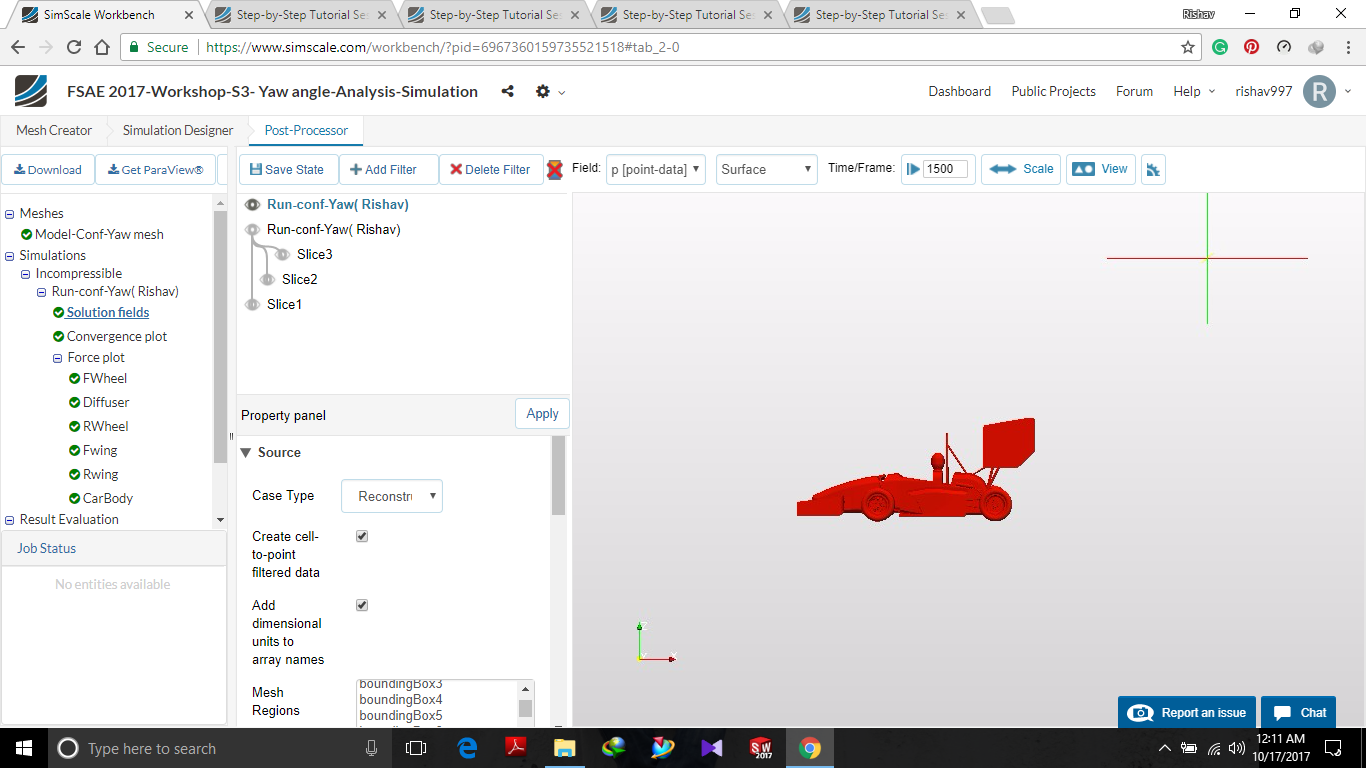

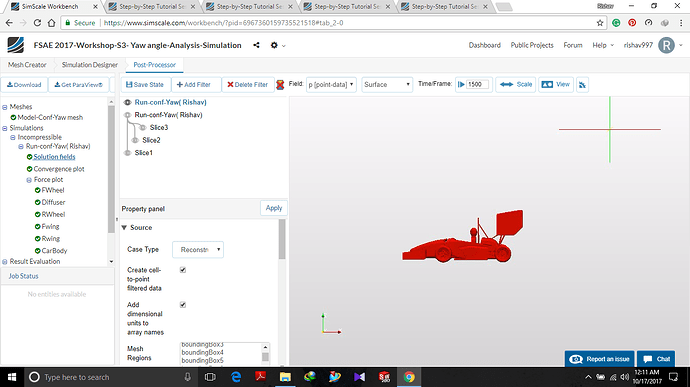

For the first solution field it work well. However, when I added second solution field it went all blank and I could not do any thing. do I miss something? . But the homework session 2 I did not experience this.

Then when I added solution field. It disappear

I have been struggle this for many time and still same problem.

Very appreciate with your kind help.

Thank you.


#35

Sir,
From Simulation setup to its complete run. the above data don’t seem as shown in Tutorials, did I made some mistake in the simulation.


#36

Hi @GLACIALSKIES_04!

Can help you investigating this issue! Please share the project with me.

Cheers and all the best!

Jousef


#37

Hi @rishav997!

First check your boundary conditions and see if you misinterpreted something. Let me know if you need any further help!

Cheers!

Jousef


#38


Yes Sir
I have overlook every boundary conditions but problem till now is not solved.


#39

Hi @rishav997!

Works perfectly fine for me. What exactly does not work for you? Please give me a more detailed description maybe I have missed something here.

All the best!

Jousef


#40

Thank-you Sir

The problem is resolved now.:slight_smile:

greetings of the day

Happy Diwali :fireworks:


#41

Hi Jousef.

Thank you for your notice.
Here is my project link.
https://www.simscale.com/projects/GLACIALSKIES_04/fsae_2017-workshop-s3-_yaw_angle-analysis-simulation_1/

Anyway I will keep try until it done.

Edit : It work fine now. Thank you for your attention :slight_smile:


#42

https://www.simscale.com/workbench/?pid=1685827256800288527#tab_1-0

I have been trying to find my mistake the whole day. I already looked over the step by step tutorial 3 times. Could someone help me find it? When trying to run the simulation comes the following message “Warning: some faces are missing a boundary condition assignment. If you choose to proceed, a no-slip wall boundary will be assumed for those faces.”

Thanks!

Vanessa


#43

It seems to be facing about the same issue. The slice gives me correct numbers for pressure but not for velocity. Could you please check also my project. Thank you a lot.
https://www.simscale.com/workbench/?pid=6478452811612065115#tab_2-0


#44

Hi Vanessa (@vbarreda)!

For the car boundary condition solid_0_Barre is missing.

Best,

Jousef
