Simulation result in paraview does not have blocks

Project Support
1

In this project https://www.simscale.com/workbench/?pid=7755664077313612913
importing the simulation results in paraview gives a blank rectangle.
I suspect this is because I need to hide the surfaces.
However, when attempting to use the “extract block” filter in paraview, I realized that there are no blocks in the simulation result downloaded from Simscale.
What I am trying to do is the use paraview to achieve the things done in Incompressible Turbulent Flow Around a Spoiler | SimScale
How can fix the above black rectangle problem?

Thanks

2

Hey there!

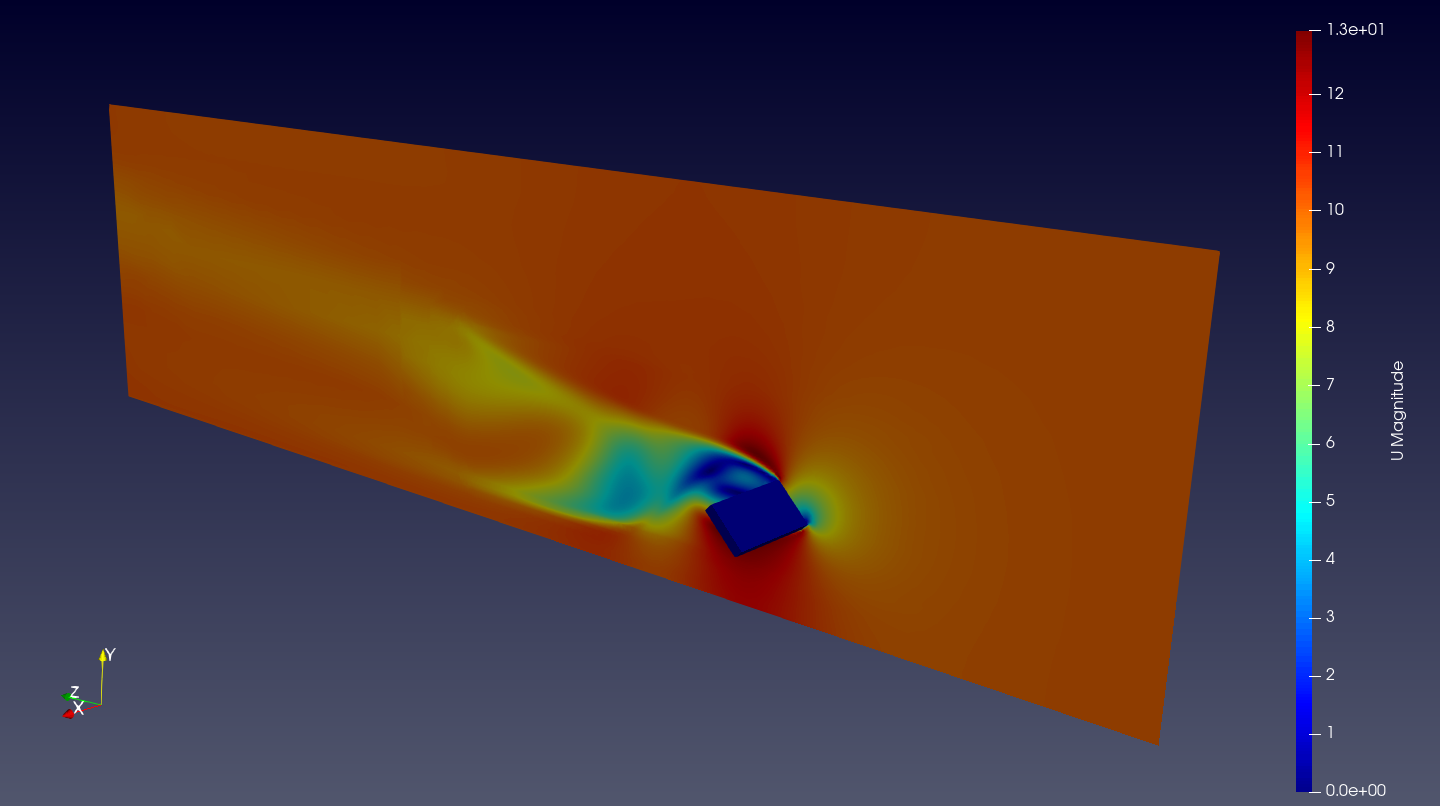

I downloaded the results and they opened ok:

image1440×806 66.6 KB

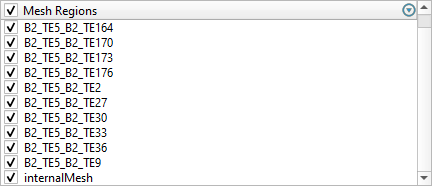

You probably didn’t select the boundary patches upon loading. It should look like this:


3

I see, thanks for confirming that there isn’t a big problem.
I wonder do you see a big rectangular cube when you load the results in Paraview?
For me, I can’t the spoiler mesh inside the rectangle, whereas you seem to be able to.

4

Yes, what I see at the beginning is the flow region rectangle.

I extracted the patch regions to create the plot above.

5

I see, really thanks for the hint. I wonder if you care to share more details of how you do it, perhaps like a video? Yours look pretty good!

6

I don’t see the need for a video, all I did was to use the Extract Block filter you mentioned, thus I assumed you know how to use it.

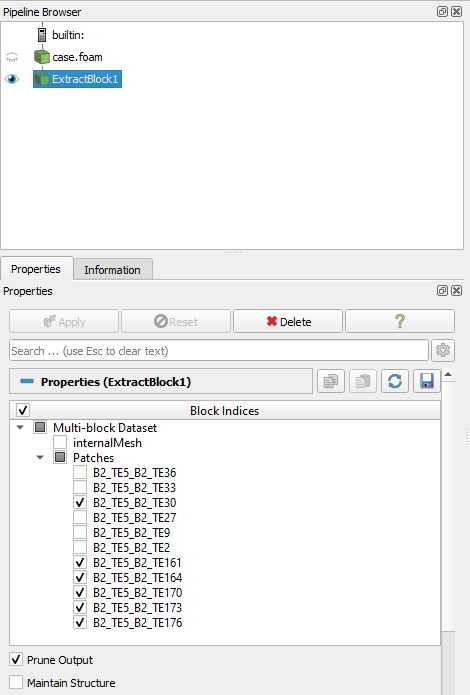

I just selected the patches I wanted shown:

image470×695 17.6 KB

And colored by U magnitude.

7

Ah, I see, really thanks for the hints, which helped me a lot!
