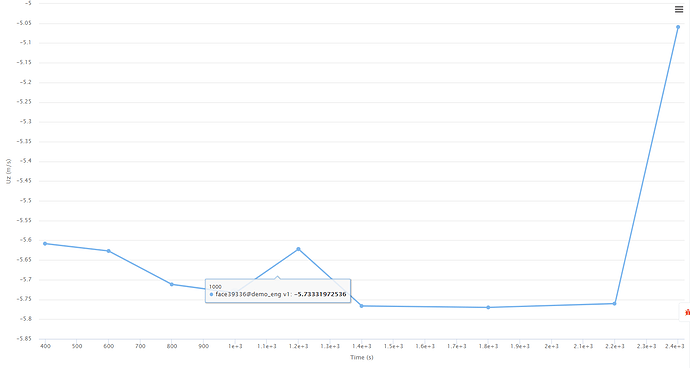

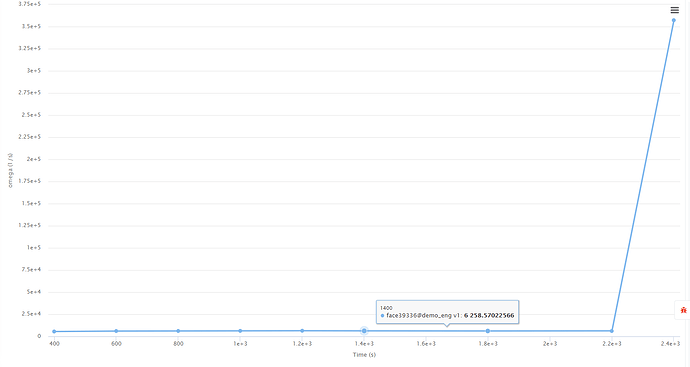

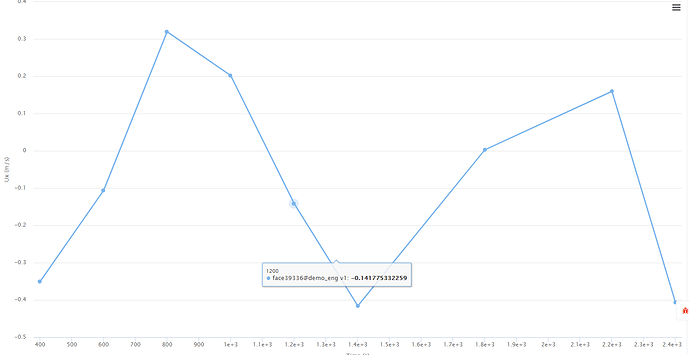

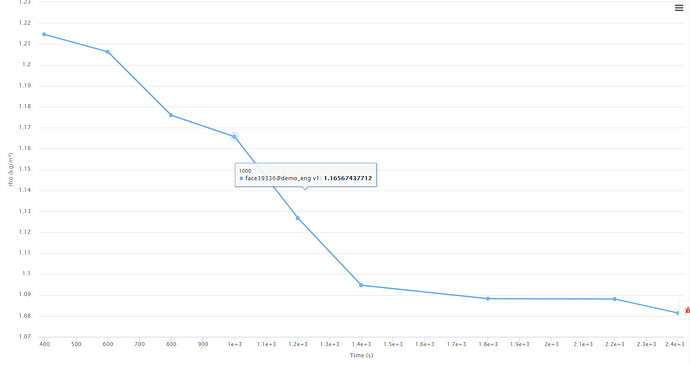

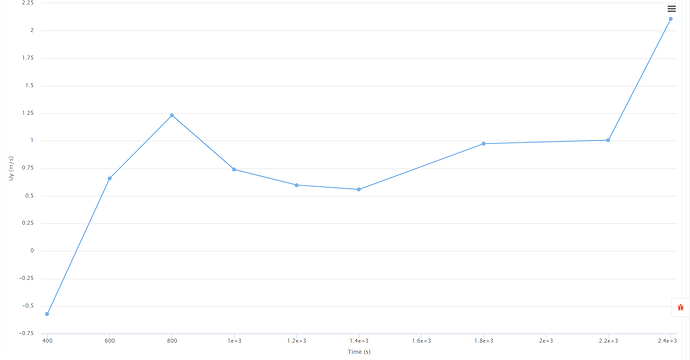

I am currently working on an engine port flow simulation problem but am facing some issues in convergence of my results. I am not able to understand the reason of sudden jumps in the residual values. i would be highly obliged if someone can help me with this problem.
I am also attaching the link to my project-
https://www.simscale.com/projects/anirudh2821998/engine_port_flow_simulation/
Hi @anirudh2821998,
Compressible simulations tend to be very sensitive to mesh quality. Try adjusting the numerics and using first order schemes with a high degree of numerical dampening.
Specifically change the gradient to cell limited gauss linear and see if that helps convergence.
You also might want to post-process your simulation to see where the regions of numerical anomalies lie so that we can see whether they are able to be tackled or not.
Cheers.
Regards,
Barry
Hi,
I would like to add 2 more points.
-

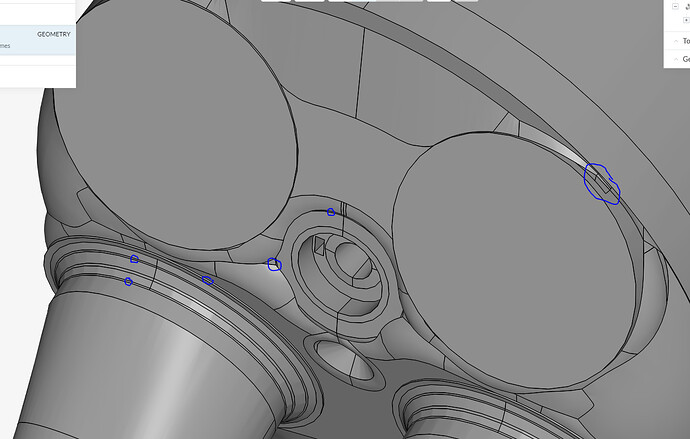

Please try to eliminate the tiny faces in the geometry and simplify it a bit. They can be problematic for meshing.
-
If possible, try using Velocity Inlet / P_outlet combination.
Regards,
Rajan
2 Likes

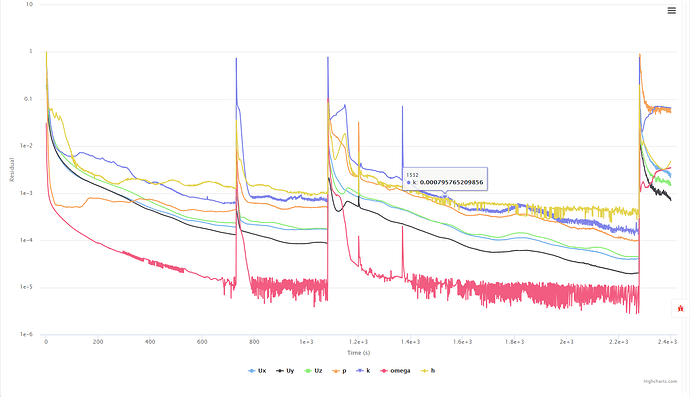

Hi, i tried to simulate with better mesh quality and I am attaching the convergence report below. If I am not wrong, then, It seems that the solution has converged as all the residuals has come under 1e-3.
@rajan19us I cannot use the velocity inlet boundary condition as I don’t have any data regarding the air velocity in the inlet port at 90KPa vacuum condition. Thus, the best idea in this situation was to first simulate with pressure inlet/pressure outlet condition and get a rough idea of the velocity in the intake port and then I can further use that information to complete a new simulation with inlet vel/outlet pressure boundary condition.
Hi Anirudh,
I am afraid that the simulation is not converged. yet Are you expecting max. velocity of 110 m/s?
Also, have you verified your boundary conditions? at inlet atmospheric pressure and at outlet 0.9 bar. What are you trying to achieve here?
This link could help you: OpenFOAM: User Guide: Common Combinations
Regards,
Rajan
1 Like
Hi @rajan19us
Yes the intake air can easily achieve a velocity above 120m/s in the valve proximity area and I will give you a proof of this within a minute(or may be within 5mins
) This simulation tries to study how efficient your engine port design is? The engine flow bench is used for analysing the engine port(may be intake or the exhaust) in which a vacuum pump attached at the end of the cylinder sucks the air through the port with intake valve at a specific lift. So in order to replicate the flow bench I have given inlet pressure of 101KPa and 90KPa on the outlet face. which means that the air will now flow through the cylinder due to a pressure gradient(replicating the vacuum pump). At different valve lift you will get different outlet mass flow rate and you can compare how your air behave at different lift. I am attaching a video of air flow bench, which may help you in better understanding of my objectives.

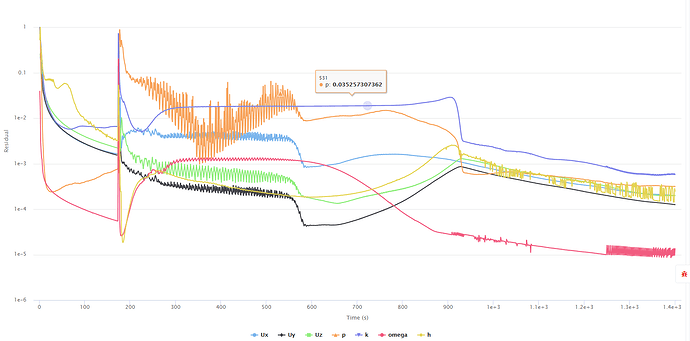

And if I talk about convergence, then my Ux, Uy and Uz residuals have already reached 1e-3(which is sufficient for most of the simulation) and my omega residual value is about to reach 1e-5.
Link- Differential Flow Field Analysis in Engine Development (AVL Tippelmann + LaVision) - YouTube
Thanks
Ani
1 Like

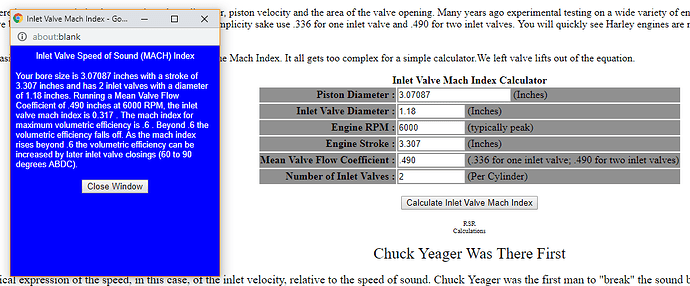

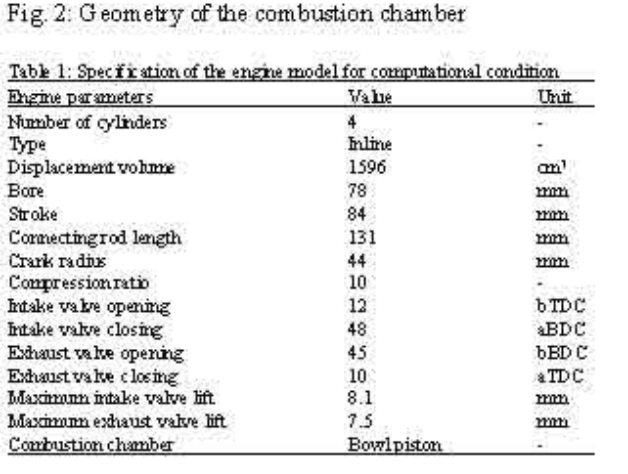

Hello sir, you can have a look at this Intake air mach number calculator- Inlet Valve Mach Index Calculator
