Same topological entity set on different geometries

Project Support
1

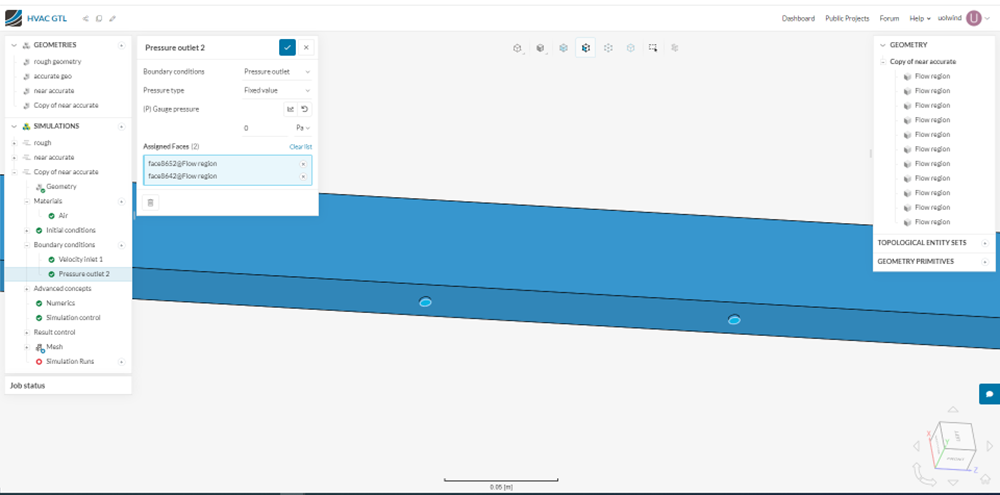

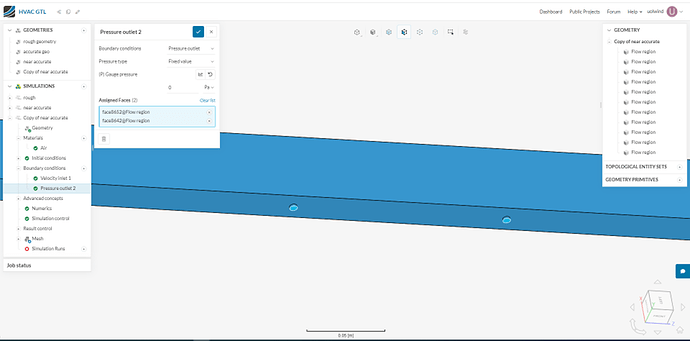

The following screenshot shows the faces I want to select as my pressure outlets. Is there a quicker way to select these as there is 340 across the whole model? They are all the same size and in regular pattern across the model.

image1000×495 87.2 KB

I have made a topological entity set manually for one of my models however I want to make slight changes to the geometry (that won’t effect the outlets) so want to be able to edit geometry while keeping the entity set. Is this possible?

2

Hi there!

Sadly there is no any advanced automatic selection tool. If you feel like leaving some feedback or feature suggestion, you can do it in the following page:

https://roadmap.simscale.com/tabs/2-under-consideration

One tip I can give you is to use box selection, with the icon at the top bar or by pressing ‘b’ in the keyboard. If the faces are aligned, this can speed up the process.
