Results Won't display Displacement

Hi,

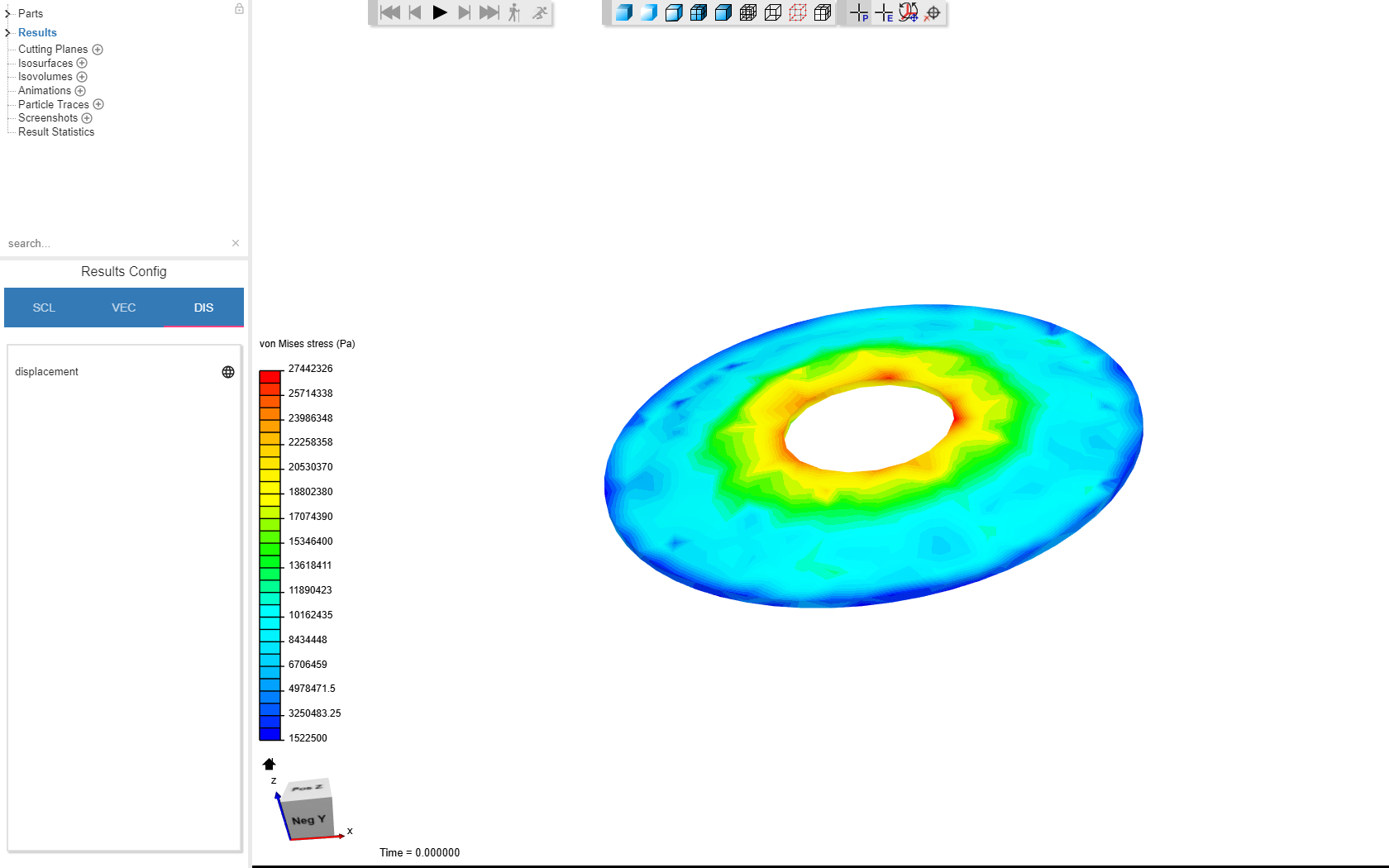

I have succeeded in doing my FEA. I have followed the tutorial in displaying displacement however the von mises Stress colour bar in displayed, not the displacement colour bar. Am I doing something wrong in the post processor.

Hi @steven_tri!

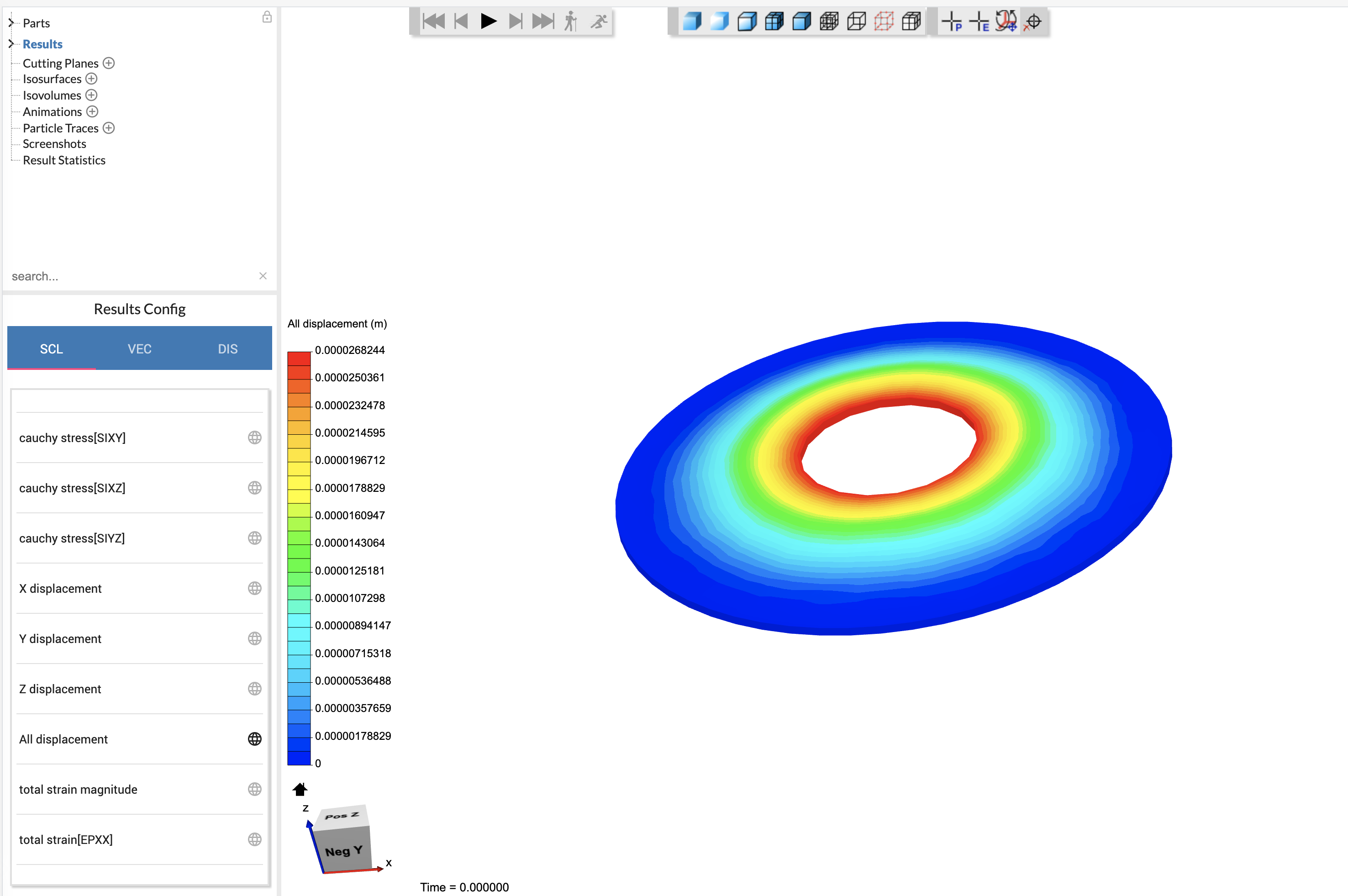

Attached a picture where you can see how you can switch to the displacement.


Hope that helps!

Jousef
