Relief Valve Flow Simulation - with moving valve


#1

SimScalers,

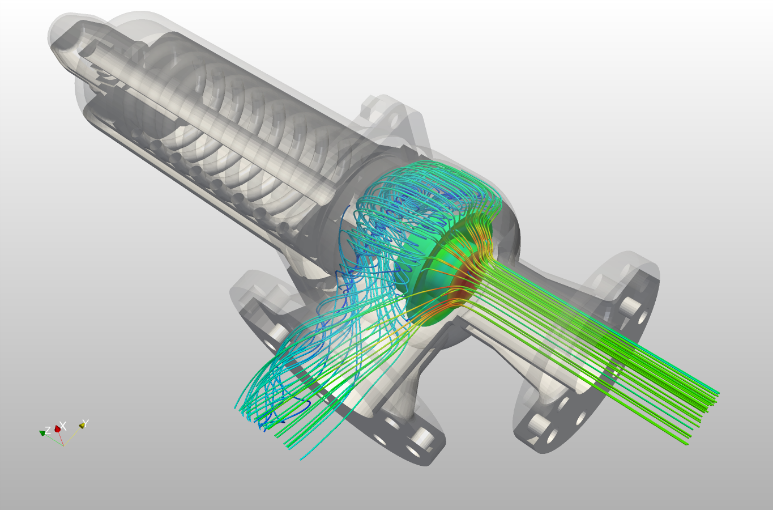

@Ali_Arafat put this beauty of a simulation together:

It leverages the “Six degrees of freedom” (6DOF) motion type, where the valve actually starts moving based on the flow around it. Find it in the library here:

Pressure relief valve analysis with 6-DoF motion

Happy simulating!

David


\underline{\textbf{Visit our SimWiki by clicking on the picture}}


#2

This looks so cool! Good job @Ali_Arafat!!
