Problem Regarding Deformed Shape Visulaization

Project Support
#1

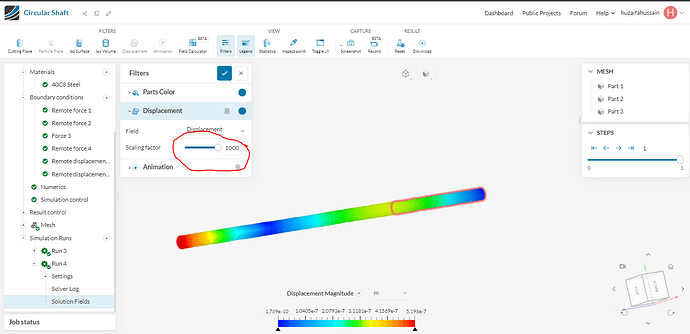

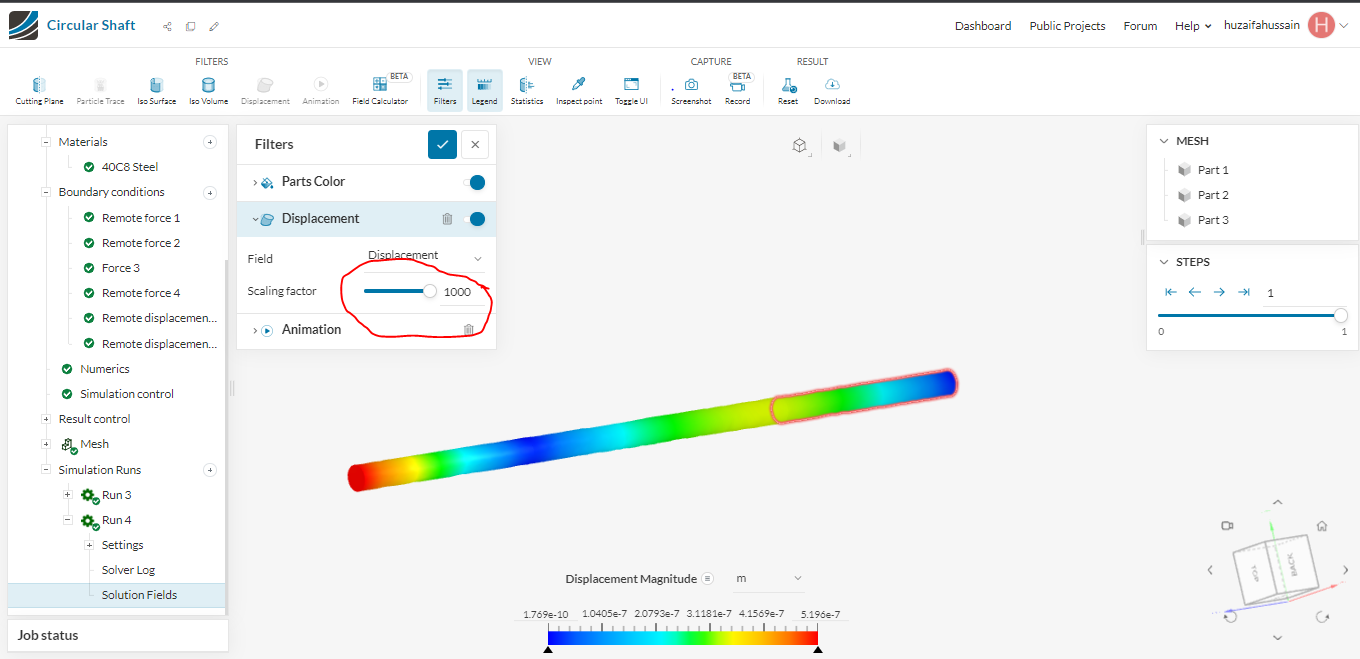

FEA_problem
FEA_problem1360×659 95.4 KB

Hello Everyone!
I want to doing shaft analysis with bearings and pulleys mounted on it. The problem arises is that I am unable to see the deformed shape visualization. The legend and color distribution of von misses stresses, displacements etc were shown clearly but the deformed profile is not showing. I also increases the scaling factor upto 1000 for displacement through filters but it did not work.
what should I do?

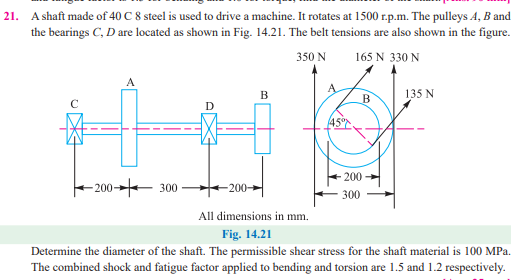

that is the problem which I try to simulate.
My Project link: SimScale

#2

nicw

#3

Hi there,

I don’t know why this post went unnoticed. I found it doing some reviews right now. I apologize for this and will find the reason to avoid it happens again in the future.

I checked your project and noticed that you have an animation showing the deformed shape, so I will mark as solved.
