Hello,
How do i get the total pressure and pressure coefficient contours on the plane.
Here is the link to my project:https://www.simscale.com/workbench/?pid=4598682583314308350&rru=3884d1cd-c329-4610-951b-f779e6b5f65c&ci=6daa9bdc-c3aa-4888-a1f6-9a428c59c577&ct=SOLUTION_FIELD&mt=SIMULATION_RESULT
Regards,
Syed
Hello Syed,

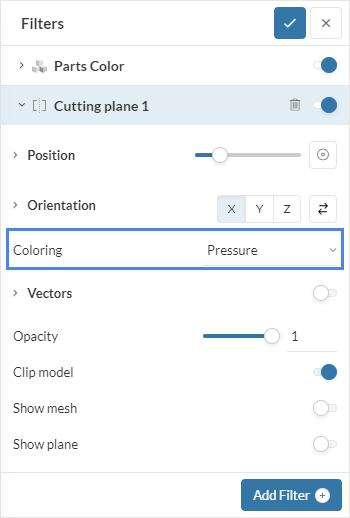

To achieve this, you must change the Coloring field in the Cutting plane setup panel:
But first, you should ask the solver to retrieve your desired fields, so they are available in the postprocessor after the simulation run is complete. Please refer to this page for details:
Hello,
Thank you for your help.
I cannot find the pressure coefficient in the compressible flow simulation. Is it available in that simulation?
Regards,
Syed
