Monitoring the residual plots for the Navier-Stokes equation solutions

Using SimScale Fluid Flow / CFD
1

Hello! My name is Emanuel Augusto, and I am new to using SimScale for my CFD simulations. Could you kindly explain how I can visually monitor the residual plots for the Navier-Stokes equation solutions in real time as my simulation progresses? I would be most appreciative of any guidance you can provide. Thank you in advance!

2

Hello!

The converge plots will be available to you as soon as you set a simulation to run, and you should be able to see it updating live as the simulation progresses.

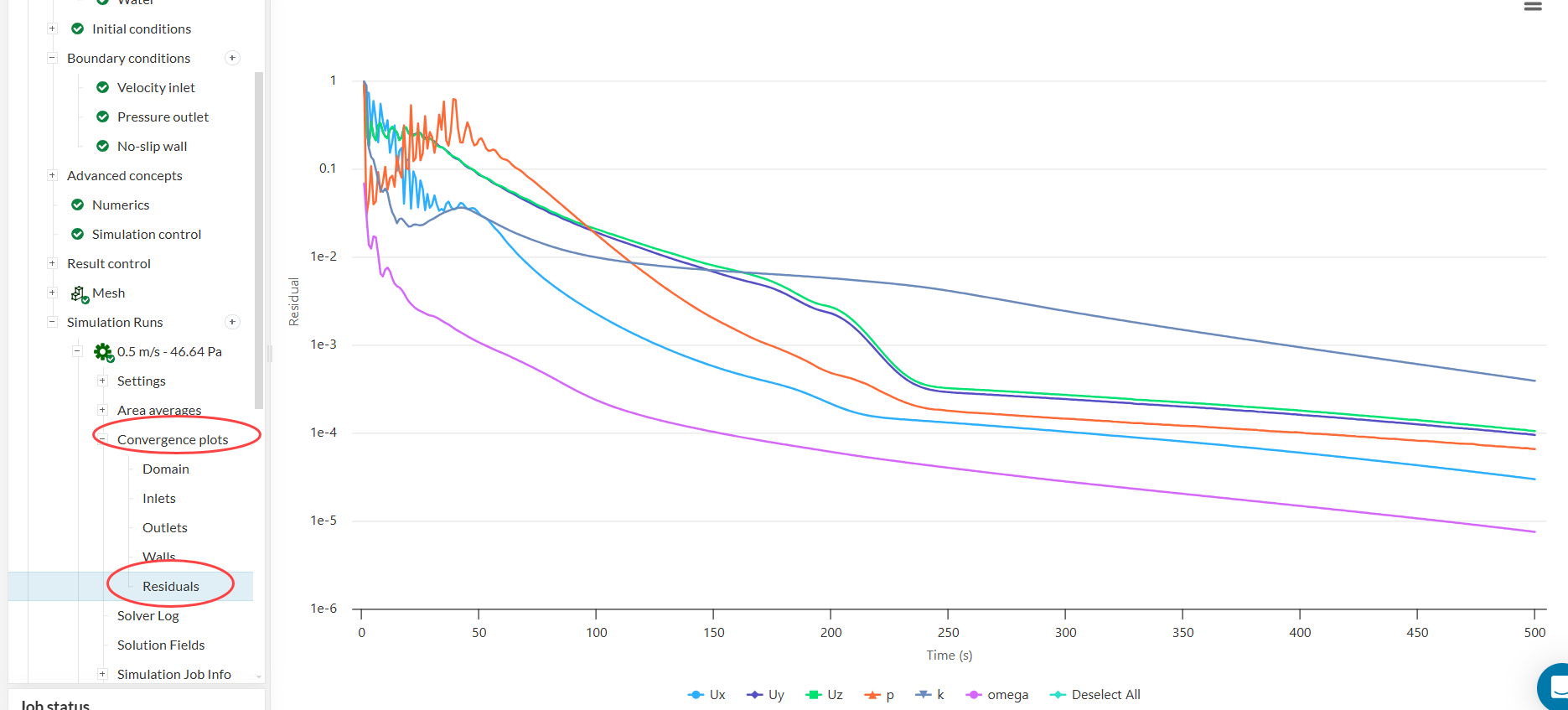

Here’s where to find it, in particular: Simulation Run > Convergence plots > Residuals.

image1871×847 95 KB

Cheers
