Mesh representation in SimScale and ParaView

Hey,
i noticed that, the mesh is displayed differently in simscale and paraview.
Its about the mesh 1 245k: https://www.simscale.com/workbench/?pid=3729340243366761061&mi=spec%3Ae7cb7d91-1a2f-4c68-838d-933455280728%2Cservice%3AMESHING%2Cstrategy%3A22&sh=1
The mesh was created without any errors.

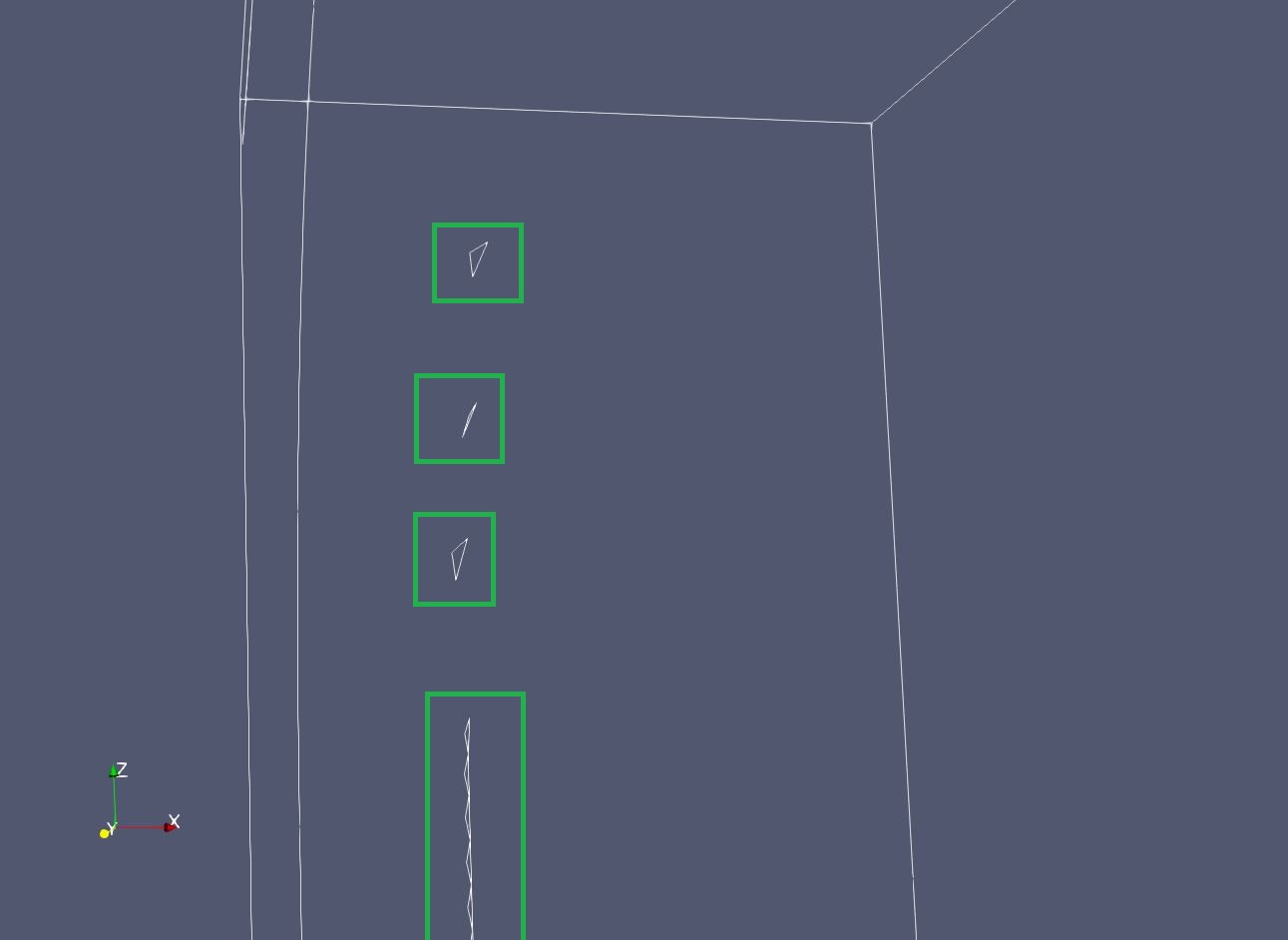

In Paraview with the feature edge representation, i saw edges were none should be.

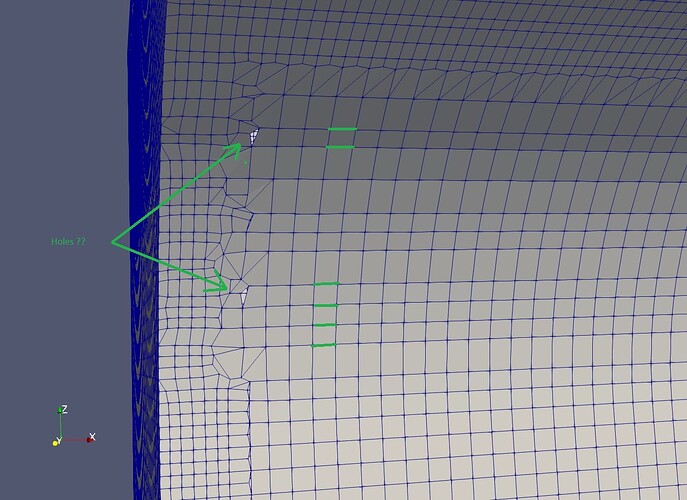

With the surface with edges represantation, i can see holes in the mesh ?

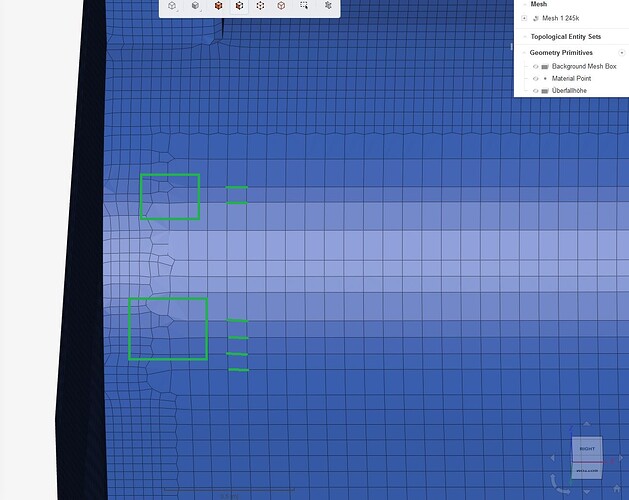

The same mesh place opened in simscale.

There are no holes … and not so many edges shown.

Which representation is right ?
there are “holes” in the mesh ?

Im a little confused now …

Best regards
Kai

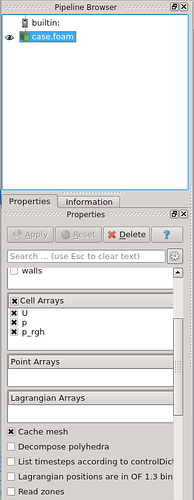

In paraview you can deactivate the option to decompose polyhedra:

That should allow you to see the same in both.

Cheers,

3 Likes

ok, Thank you @pfernandez

Best regards
Kai
