Mesh Refinements and Geometry Primitives for meshing are not carried over when Geometry changes

Dear SimScale Team,

I often change car parts, run CFD simulations and compare their characteristics. In order to equalize the mesh creation condition, I duplicated a mesh with keeping conditions and replaced only Geometry for a new mesh.

However, with the recent SimScale software these days (months?), replacing the geometry deletes all Mesh Refinements and Geometry Primitives, and it takes a lot of work to reconfigure everything.

https://www.simscale.com/workbench/?pid=4976467516240040687&mi=spec%3A263b6071-c258-46bb-9cc5-c0719a8c173d%2Cservice%3ASIMULATION%2Cstrategy%3A95

I hope that Mesh Refinements and Geometry Primitives will be carried over even if I replace geometries as in the former SimScale software.

Best regards,
Yosuke

1 Like

Thanks a lot for your feedback Yosuke, much appreciated!

I will track your request in our system, maybe some of my colleagues can make a comment on the current development phase on this particular topic.

Best,

Jousef

1 Like

Hi @yosukegb4,

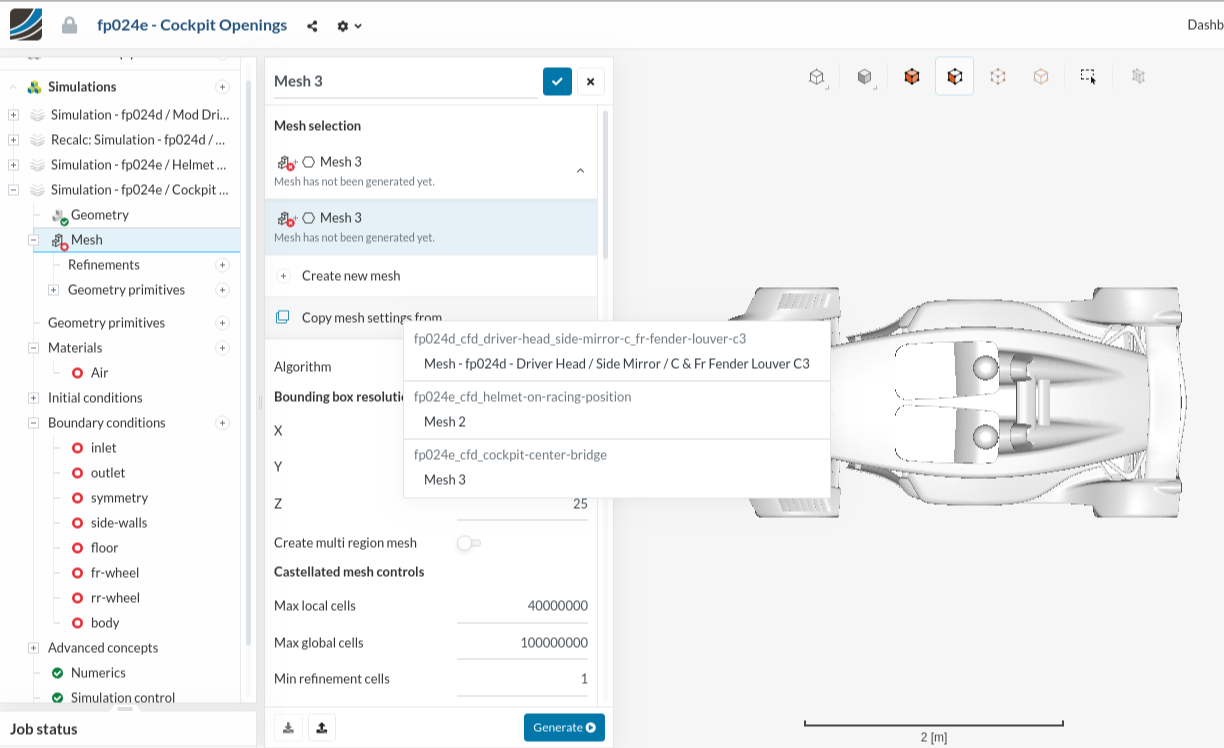

I think the function “Copy mesh settings from” does exactly what you need :slight_smile:

Best,
Richard

3 Likes

Hi @rszoeke ,

That is the function exactly what I need!

Thank you for the information!

Best,
Yosuke

1 Like
