[image] what does this error message mean? i have been using the same mesh settings on very similar models and this is the first time i got this error. SimScale Login Log in to your SimScale account. SimScale makes high-fidelity engineering simulation technically and economically acce…

Hello revolateracing, please have a look at this refinement region, you defined a region with a refinement size of 0.05m which seems pretty rough to me. [image] please have a look at this forum thread on the meshing of an F1 in Schools type car. [image] Unexpected Drag coeffici…

Hello revolateracing , for which run did you create the Mesh 17? Because I cannot find it within your project. Best regards Sebastian

Hi, Thank you for replying, the mesh is under Incompressible 4.

Mesh failed

Project Support

SBlock March 28, 2022, 7:30am 4

Hello revolateracing,

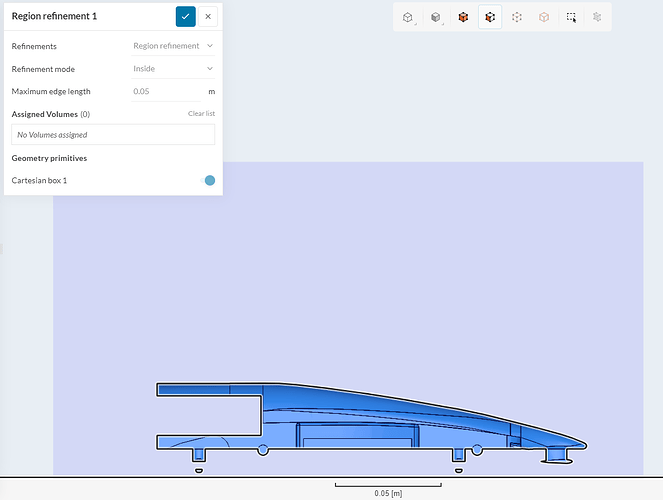

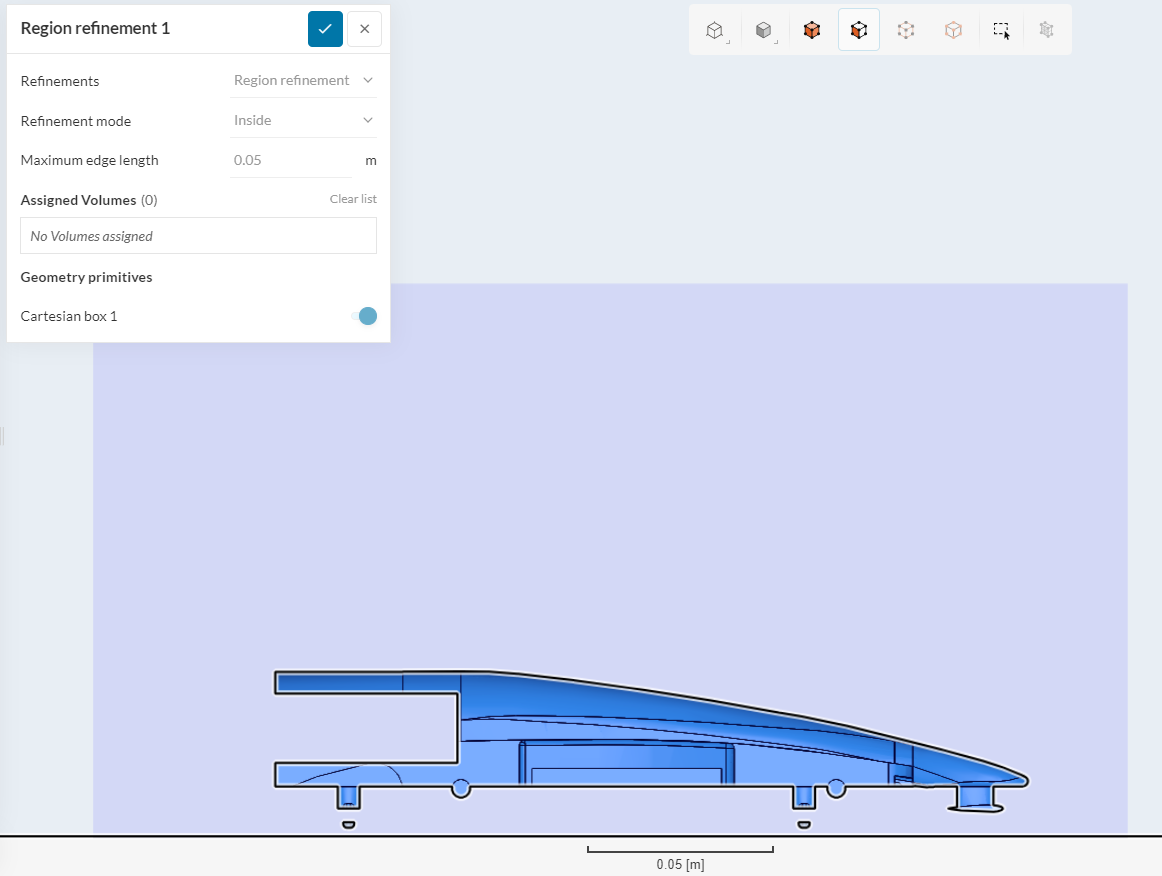

please have a look at this refinement region, you defined a region with a refinement size of 0.05m which seems pretty rough to me.

please have a look at this forum thread on the meshing of an F1 in Schools type car.

Best regards
Sebastian
