I am trying to simulate a CAD model that I have recently created for a University project but when I mesh the geometry, appears this error on the mesh event log:

Illegal triangles were found after surface tesselation. There could be a problem with the CAD geometry. Trying to proceed anyway.
The tesselated surface is not closed. There could be a problem with the CAD geometry (such as self-intersections). Please inspect your geometry. Trying to proceed anyway.
Gap and region refinements couldn’t be applied for all bodies as there are non-solid bodies present.

I have tried to mesh the geometry several times but the result is the same and besides, if I try to run the simulation, it fails.

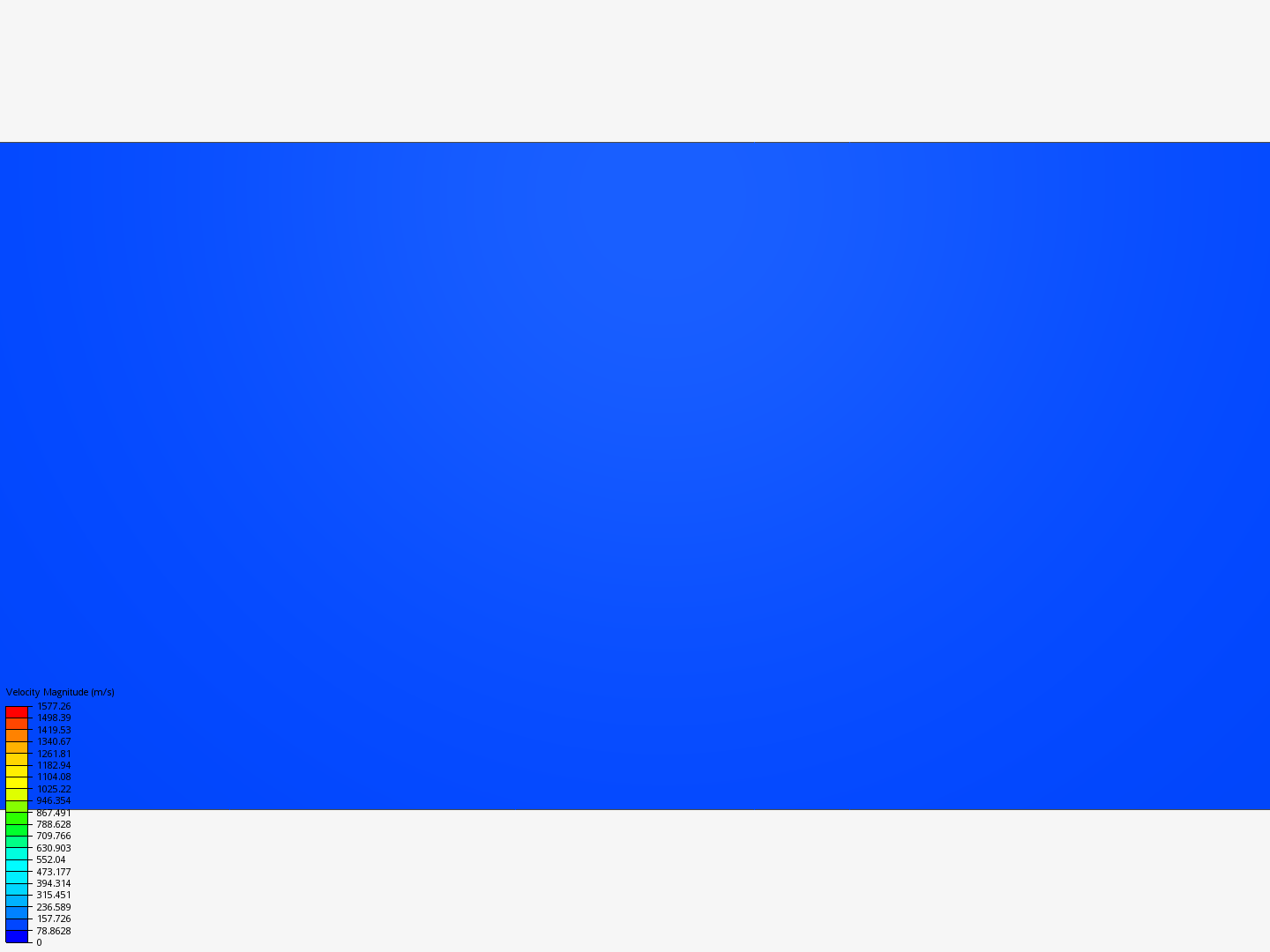

My project can be found in the link below:

Regards.

2

Hi inafria_duran,
Thank you for joining the Forum and welcome.
