Issue with modeling two mating gear in dynamic analysis ( the two gears are interfering )

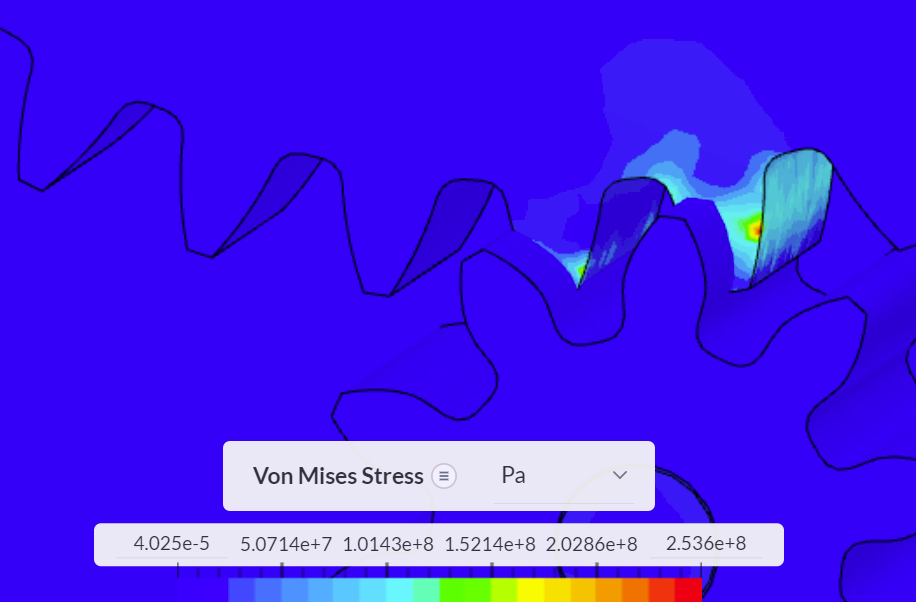

I have a problem with modeling two mating gear in dynamic analysis in which the two mating gears are interfering although I set the physical contact properly


project link
https://www.simscale.com/workbench/?pid=7278076254166122890&mi=spec%3Aad6d4906-44ed-4d49-91ce-be256e4de0f8%2Cservice%3ASIMULATION%2Cstrategy%3A26

thanks in advance

Hi @khalidElserfy1 ,
it looks like the contact is active but the penalty coefficient is too low compared to the contact forces, so you get some significant contact penetration.

Try to rerun with a contact penalty parameter of 10x what you have now and check if the contact penetration would get low enough. If not, increase again.

Keep in mind that there is a trade-off between lowering the contact penetration and robustness, so if the penalty parameter gets too big, you’ll face convergence issues.

Best,
Richard
