Importing OnShape geometry

Using SimScale CAD & Meshing
1

Hi,

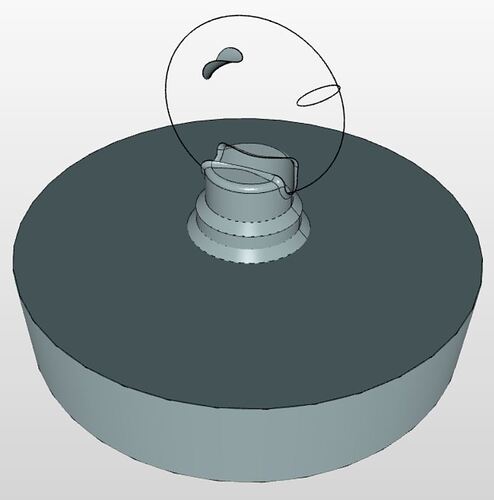

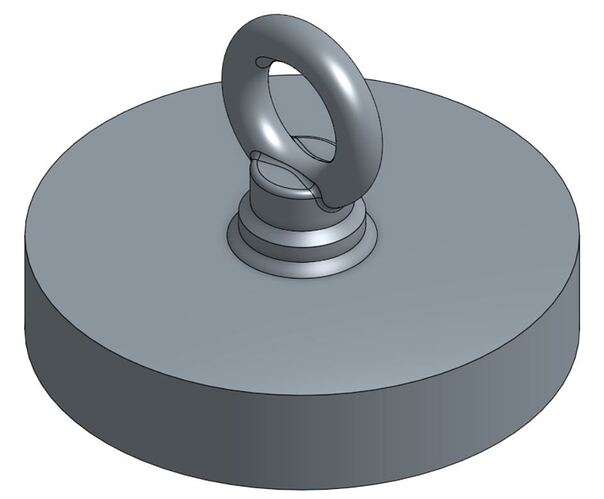

I’ve had problems trying to import a geometry generated using OnShape (see second image below). After importing the geometry, some of the faces are lost (see first image below).

Any help on this matter will be much appreciated.

David

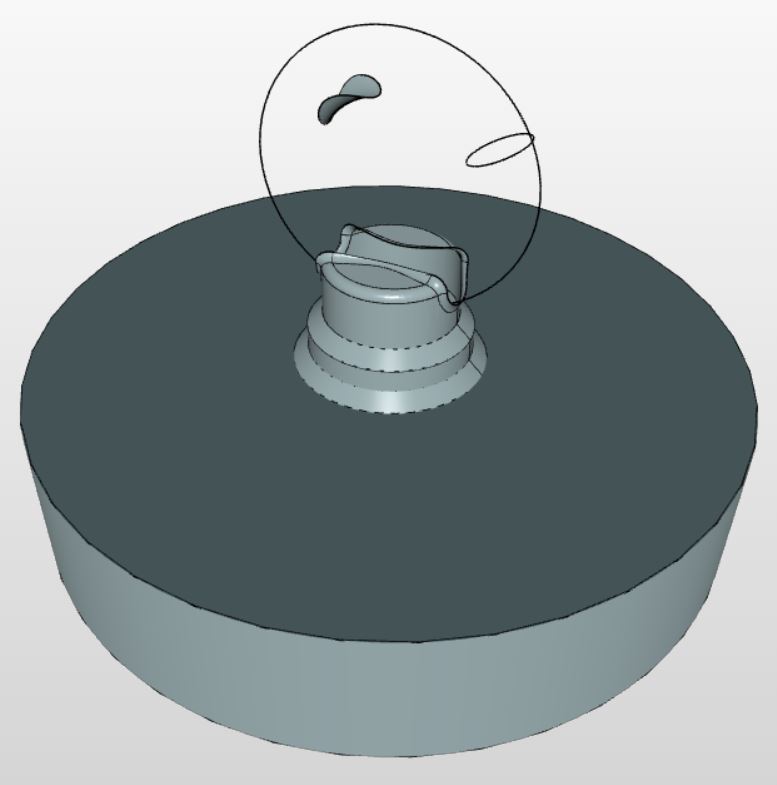

Eye_bolt_SimScale.JPG777×785 23.2 KB

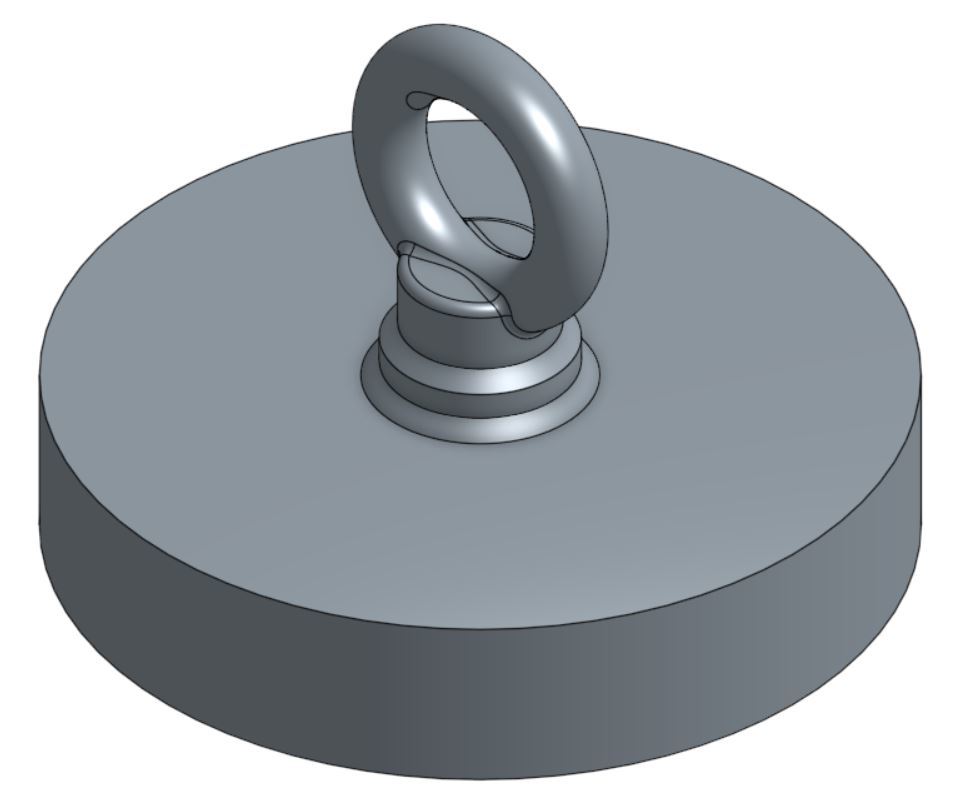

Eye_bolt_OnShape.JPG960×794 28.5 KB

2

Hi @davidosuna,

thanks for reporting! Could you provide the CAD model or the link to your project if it’s public? Then we’ll take a look asap.

Best,

David

3

@davidosuna - is it this one: SimScale ?

4

Hi @dheiny,

Thanks for your reply. Here’s the link to the public project on OnShape:

Thanks a lot,

David

5

Hey David!

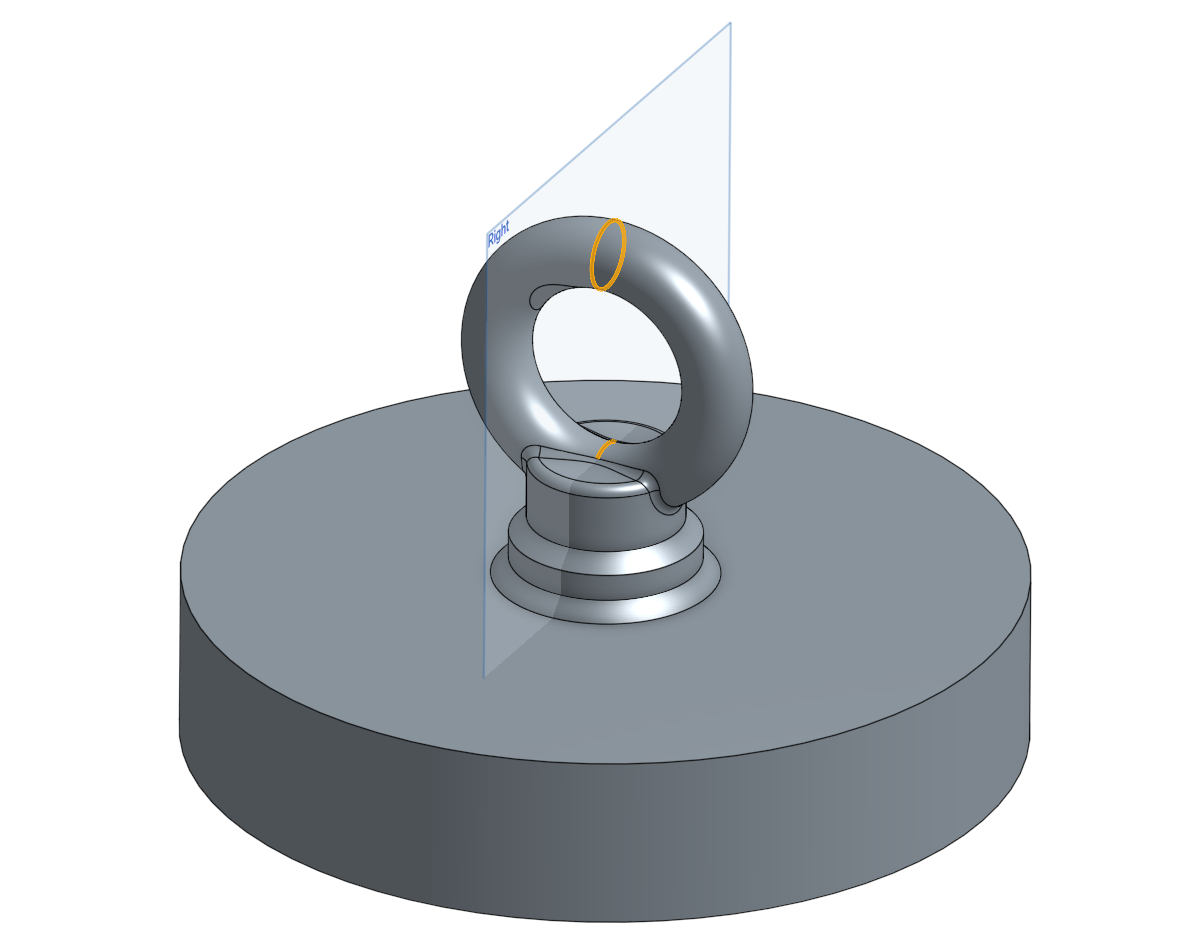

Thanks a lot for putting your query here. I managed to solve your case by just splitting the circular face of your eye bolt via Right plane. Please see the figure below taken on Onshape:

solved_onshape.png1204×945 116 KB

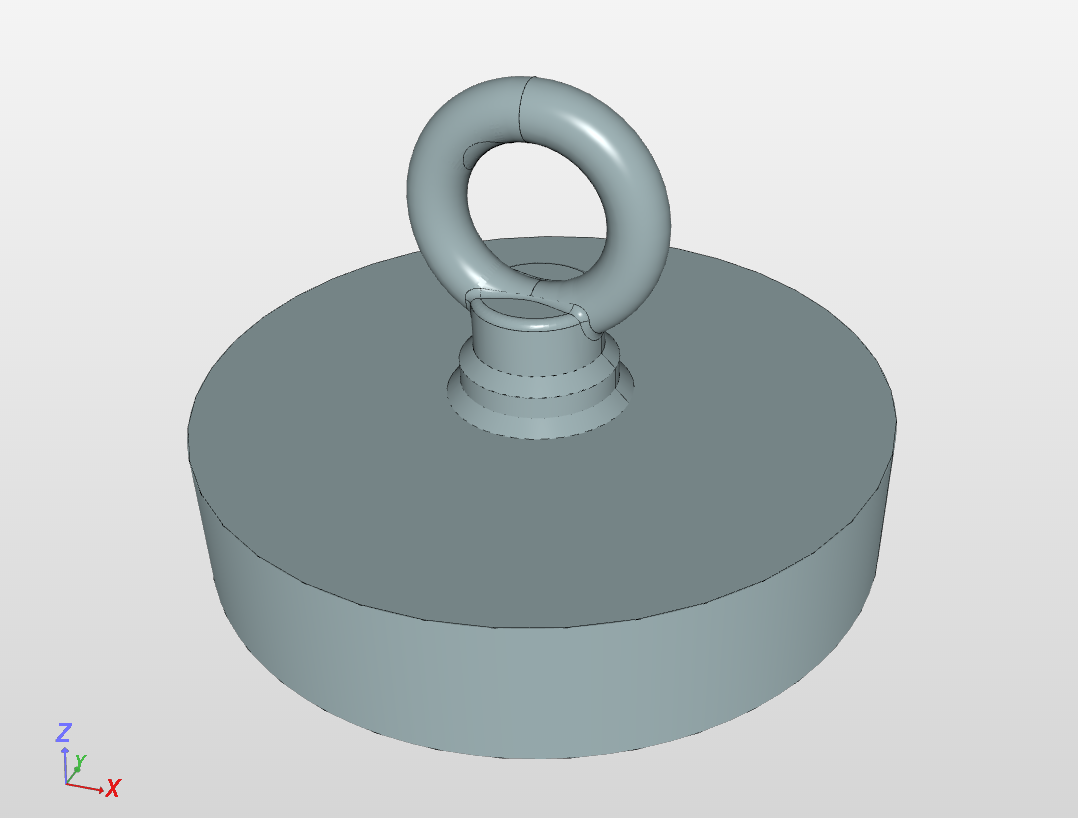

and the figure below taken on SimScale after import:

solved-SimScale.png1078×818 81.3 KB

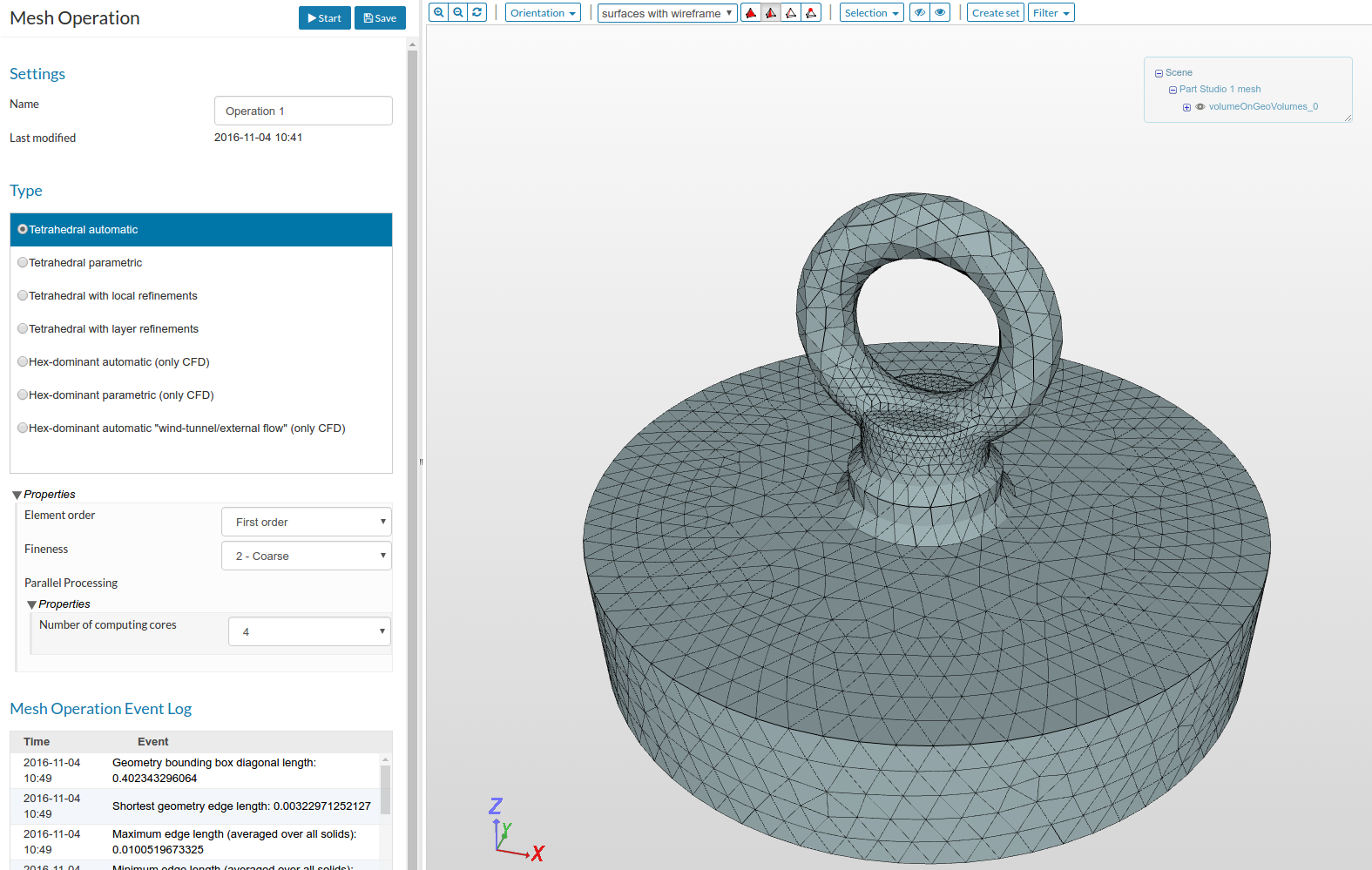

and I can mesh it also using tetrahedral automatic on coarse ;):

mesh_SimScale.png1575×999 198 KB

Not a great mesh though but one can increase the refinement level :slight_smile:

So where is the problem?

I think it seems to have problem in importing the circular ring with the face partition and merging with the lower part you have. I managed to import only the circular ring without cutout in to SimScale easily but with face cutout from the above partition and lower solid partition doesn’t seems to work here. Sometimes, visually the parts looks good in CAD tools but due to some missing partitioning they don’t remain as it is after import. May be there are some weird NURBS playing a bad role here.

I hope this helps. If you have any question/s, feel free to ask.

Best,
Ahmed

1 Like
6

Hi Ahmed,

Thanks for working on a solution for this. I have followed your instructions and I don’t have any problems importing the geometry now.

Regards,

David

1 Like
7

Glad that it worked! :smiley:
