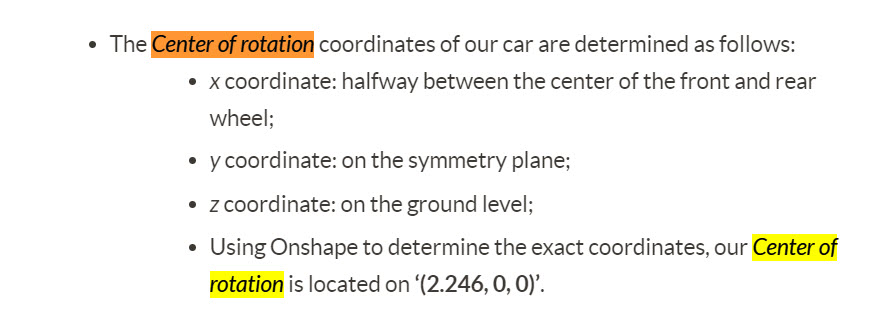

Hi, we are try to simulate CFD for our FSAE car. To get forces and coefficients, Simscale want us to enter center of rotation point. In following link it says that the center of rotation should be placed on halfway between the center of the front and rear wheel, on the symmetry plane and on the grou…

We are struggling with the reason behind choosing those very coordinates that were provided in the tutorial. How and why do we calculate them as it was told in the tutorial? E.g., why do we choose x coordinate halfway between the wheels? Should it be the case for all 4-wheel vehicle models or does i…

SimScale CAE Forum

How to Select Center of Rotation of Car

Using SimScale Fluid Flow / CFD

tsite May 17, 2021, 8:54am 2

Hi there, have a look here under the Results Control section: Aerodynamic Flow Behavior Around a Vehicle Tutorial | SimScale

Best regards,
Fillia
