How to color particles with stripes?

Using SimScale Post-processing
1

Hi SimScale,

I have a particle analysis which I am post-processing in ParaView. I would like to color particles with stripes.

These could be black and white, as in this animation:

https://www.youtube.com/watch?v=aNnZoo3x9S0

or colored, as in this animation:

https://www.youtube.com/watch?v=fyKqaqjx1uQ

Does anybody know how this is done?

Regards,Ben

2

@afischer, @rszoeke Can you please help here?

Best,
Ahmed

3

Hi @BenLewis,

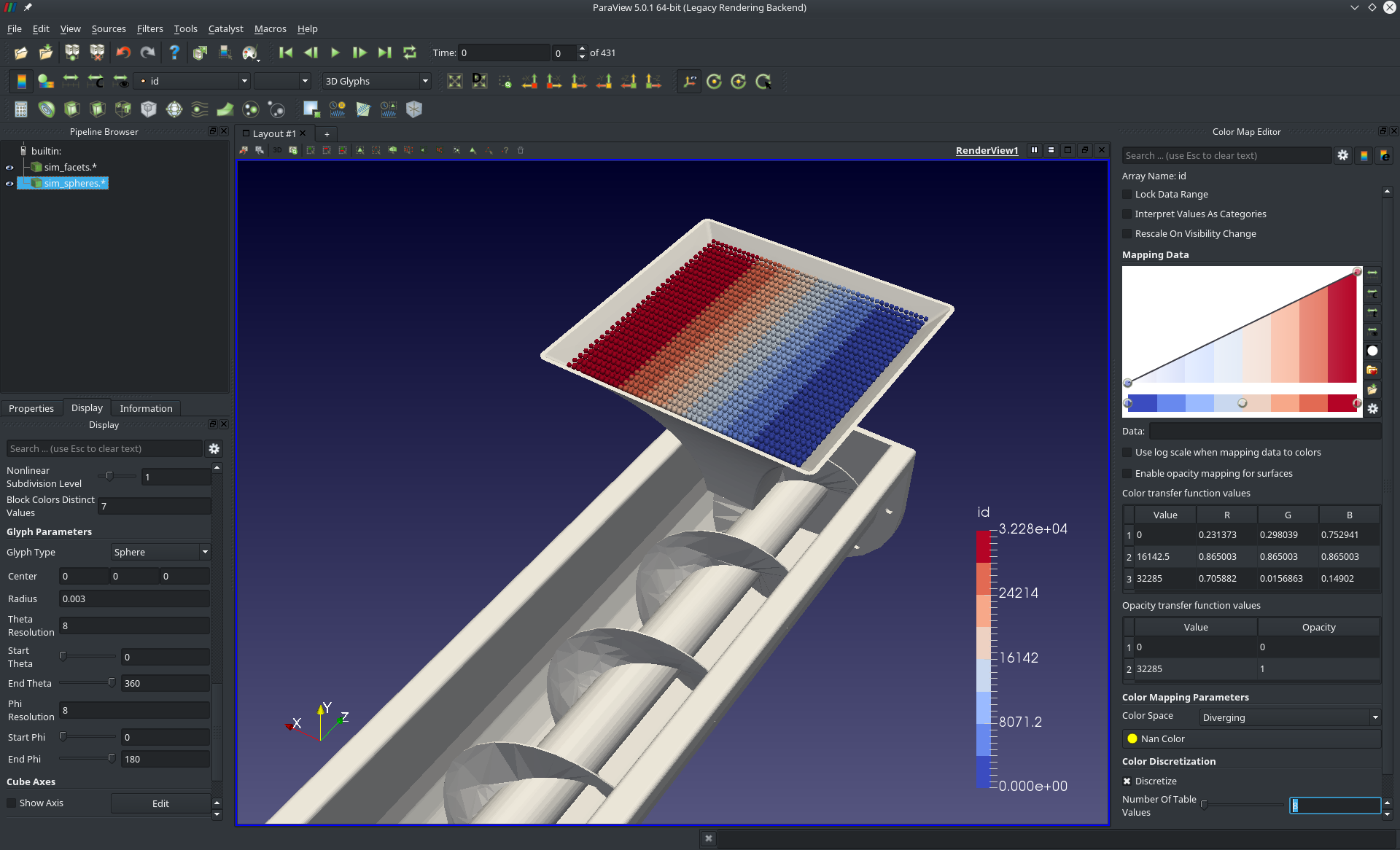

Assuming that the results come from our platform, the particles themselves will contain an ID attached as a field:

particle-ids.png1920Ă—1166 553 KB

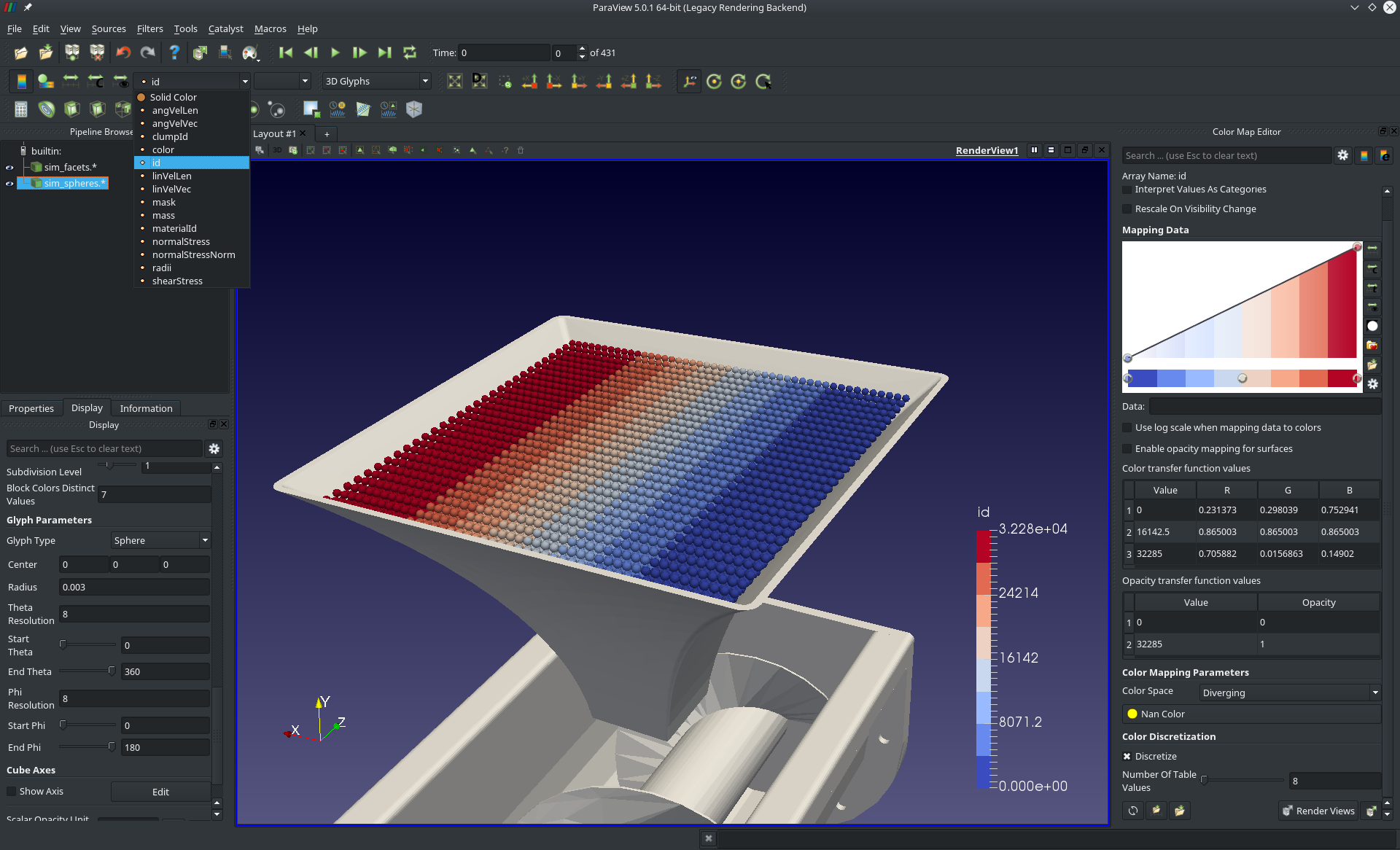

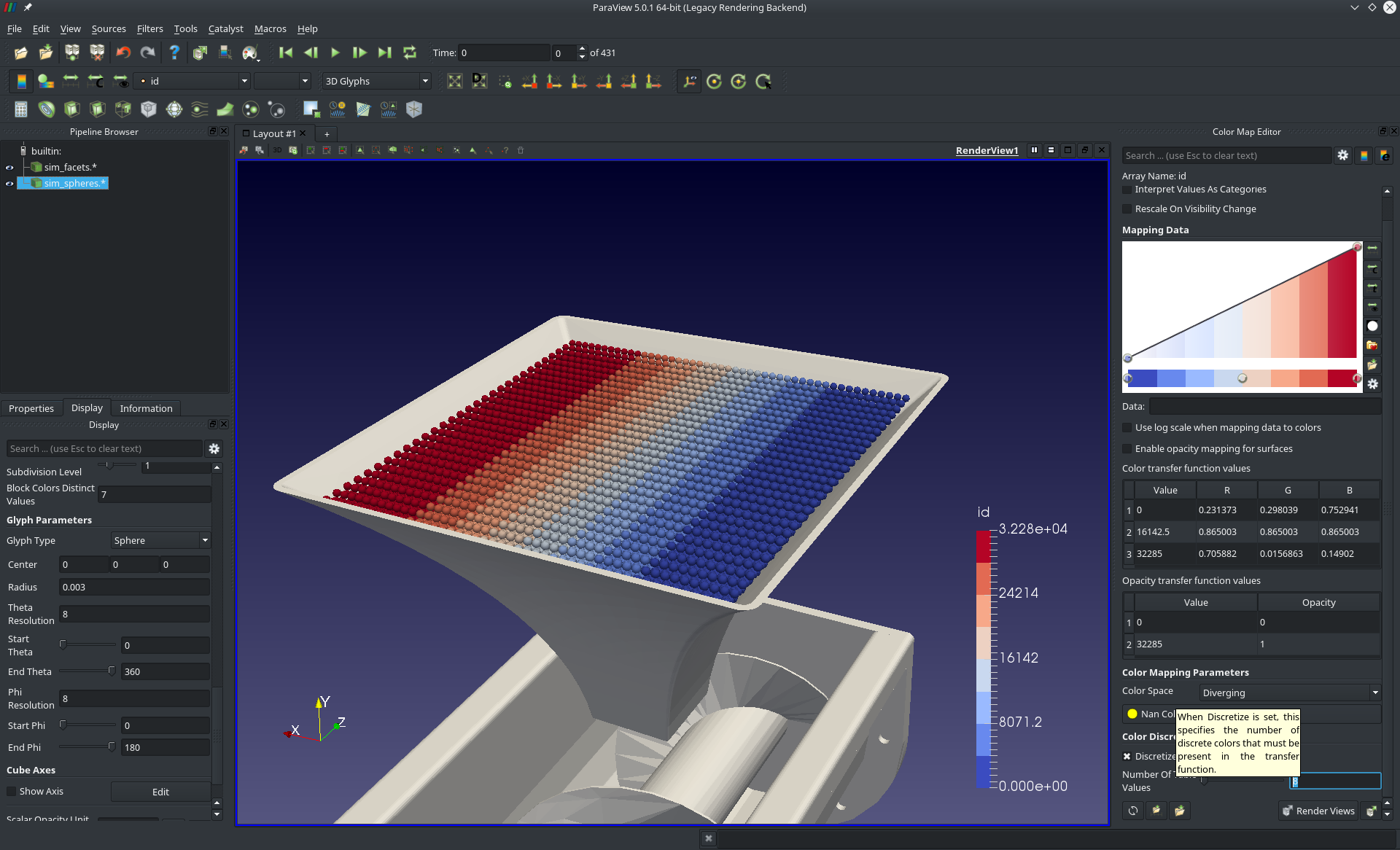

Now, that will make sure your particles receive their colour based on the ID. To obtain a band separation, you need to configure the colour mapping, so that the colour space contains a smaller number, by changing “Number of Table Values” in the panel to the right. In my example I chose 8:

particle-colouring-discrete.png1920Ă—1166 550 KB

particle-colouring-discrete2.png1920Ă—1166 390 KB

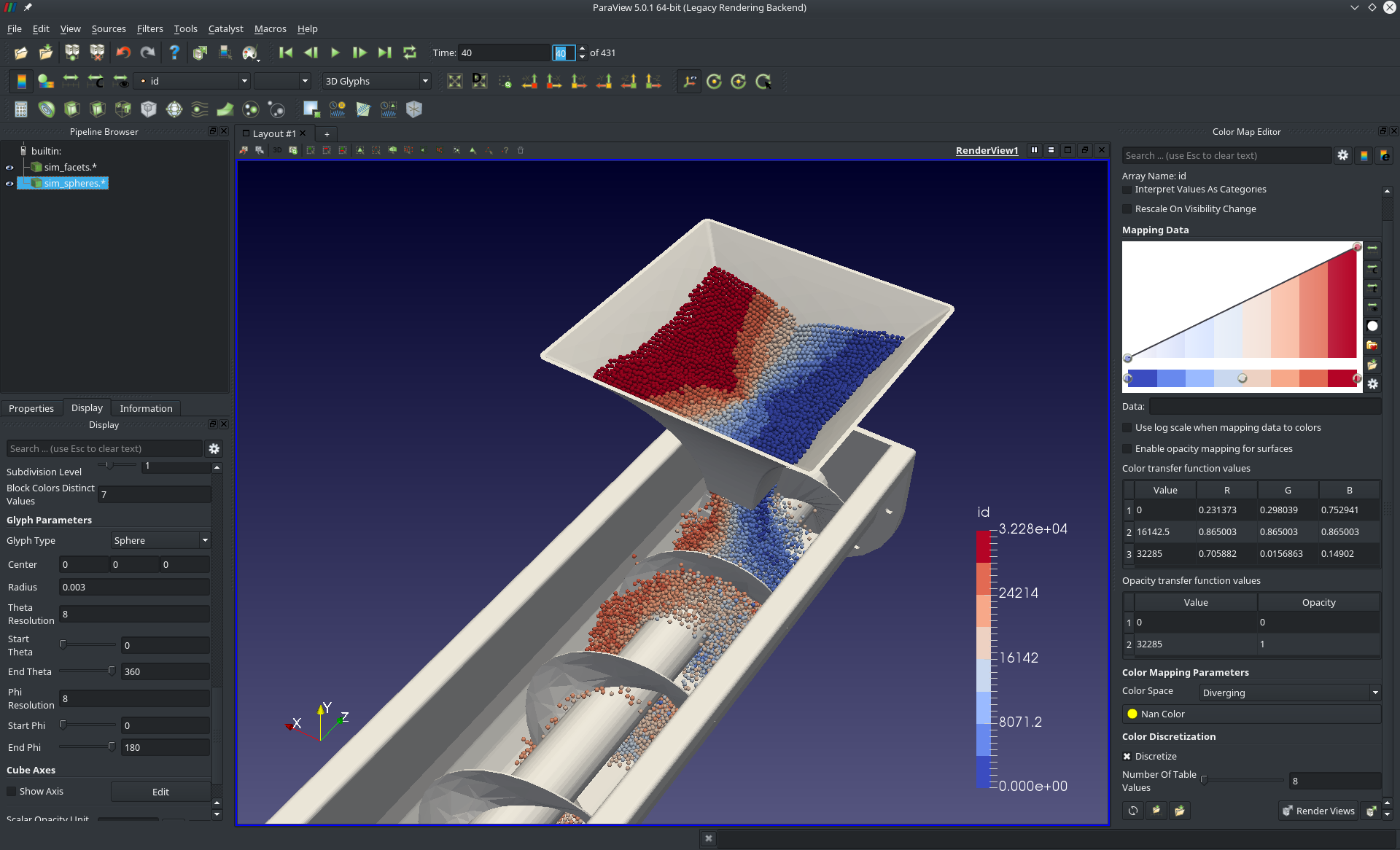

Here it is at a later time-step:
particle-colouring.png1920Ă—1166 426 KB

Hope this helps and could answer your question.

4 Likes
4

Hey @bdaqui!

Great! looks good. But can we do it without id’s information? because I think we can’t control id’s of the particles or can we?

Best,
Ahmed

5

I will look into that.

6

Hi @BenLewis @ahmedhussain18,
you can use a calculator filter to create a field depending on the initial coordinates and then color by this field.

Best,
Richard

3 Likes
7

Thanks everyone for your help. I intend to make a calculator filter.

Regards, Ben
