How to change the geometry and size of a stent that has already been done?

Project Support
1

I copied a project about a stent and want to change the geometry and size od the stent that was already build so I can compare the geometry and stress analysis of the different shapes. How can I do that?

2

Hi @jarilis, thanks for posting on the forum and welcome to the SimScale Community :handshake:

The problem with the stent CAD in the project you’ve just shared is that it’s format is outdated. You could simply download it:

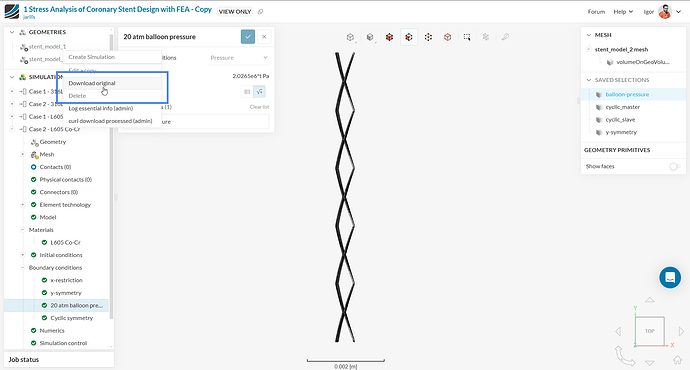

image1920×1032 101 KB

import it into a CAD tool (such as OnShape), convert it and reimport it into the platform and it should work in CAD Edit! You can also edit the part in a 3rd Party CAD tool of your choosing.

I’ve uploaded an updated version of the Stent to the following project:

Cheers
Igor
