Heat Loss of Different House Shapes

For a project on sustainable house design, I am trying to model different types of house shapes to see if surface area vs a constant floor space has a significant effect on heat loss. For example, in the winter when the heat is on, will one shape be able to remain at a higher temperature than the other values? At the moment I am still trying to model a common house shape as a baseline for comparison using CFD analysis.

For the basic model of a house, I have about 400 sq ft of floor, 1 feet thick walls, and material wood. I tried a test run of convective heat transfer based on the boundary condition settings in the Meeting Room Tutorial:

Initial boundary temperature: 19.85 C

Ceiling, floor, internal walls: Wall boundary condition > No slip, turbulent heat flux > flux heat source = 0, Initial boundary temperature: 19.85 C

External Wall: Wall boundary condition > No slip, external wall heat flux > derived heat flux = 25 W/m2, 30C ambient temperature

Natural convection at inlet, outlet: ambient temp 19.85 C

However, when I run the simulation, the house is at a really high temperature of 248-285 C, so I am confused on how I got such high temperatures for what I thought were normal boundary conditions.
I am new to Simscale and CFD modeling, so any advice on this problem would be really appreciated.

Hello!

Well spotted - there’s a problem with the “result control” results - they are in fact showing the temperatures in Rankine instead of Fahrenheit (it should be fixed soon).

For the moment, a work-around is to run the simulation on a project created with the metric system, instead of imperial.

Cheers,
Ricardo

Hi Ricardo,

Thank you for your reply. I tried to do the simulation again with the model in solid works converted to metric units, but the results in Run 2 still show abnormally high temperatures with the same settings.

Hi,

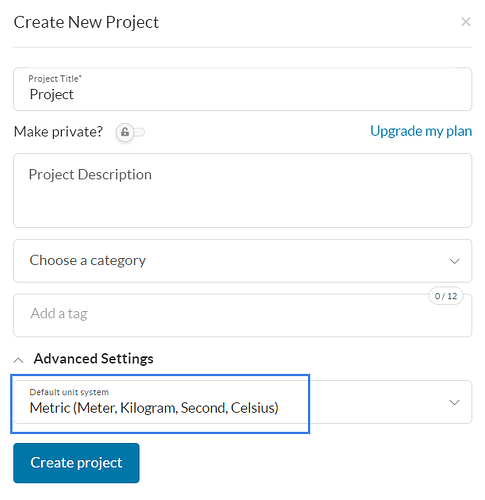

Just to re-iterate, for now please create a project with metric units (in SimScale) - your project is currently in imperial units.

Cheers
