'fp-023b Control' simulation project by yosukegb4

Projects
1

I created a new simulation project called 'fp-023b - Front Aero Devices':

CFD Analysis of a formula style 2-seater car https://github.com/y-yosuke/formula-ppoino


More of my public projects can be found here.

2

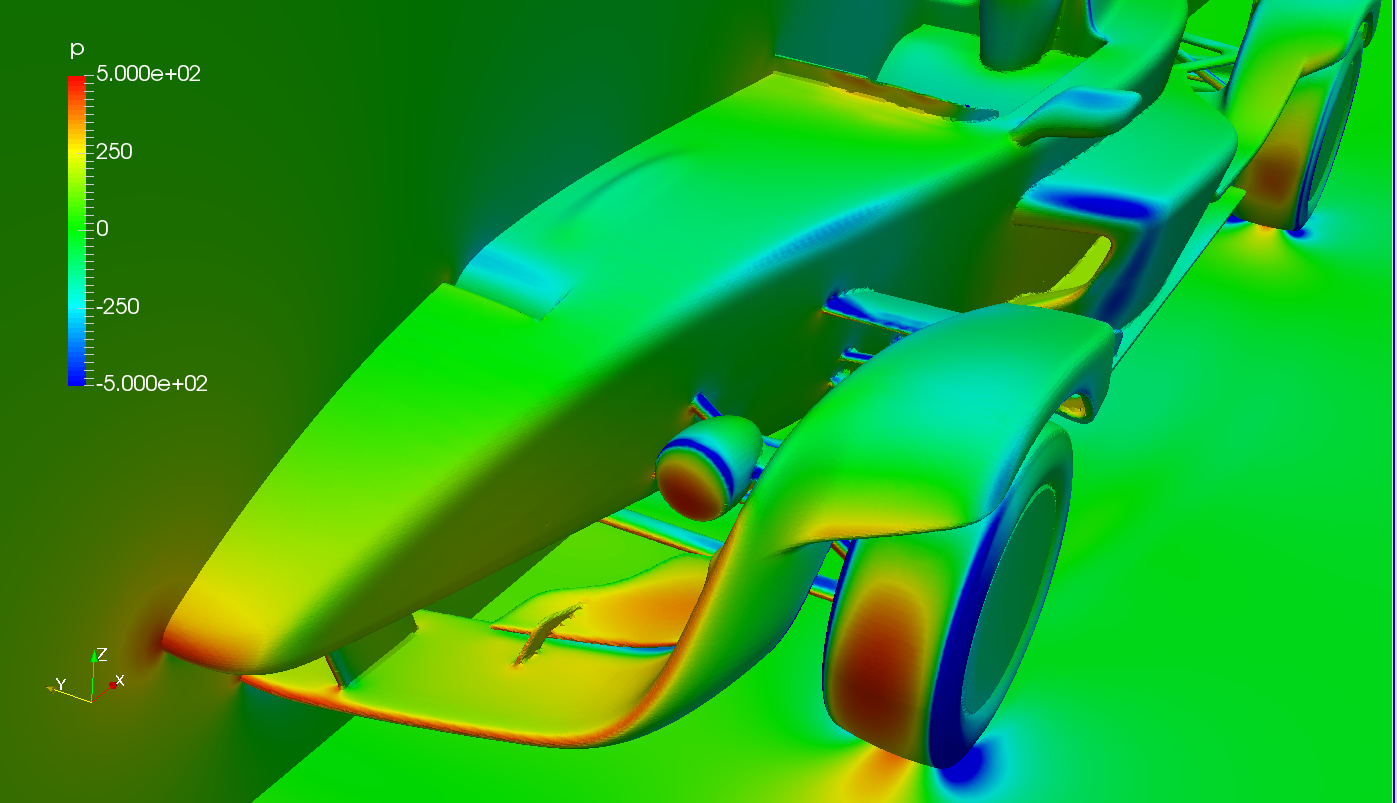

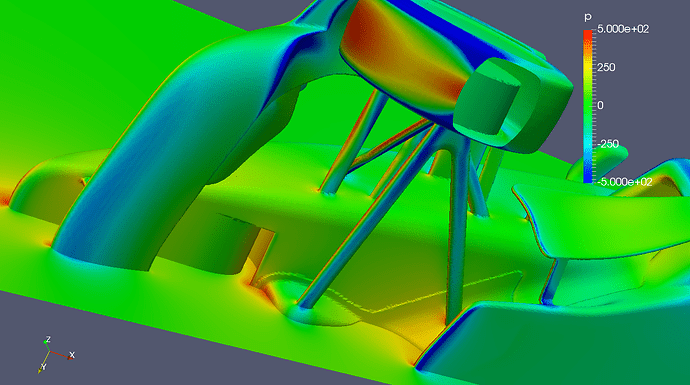

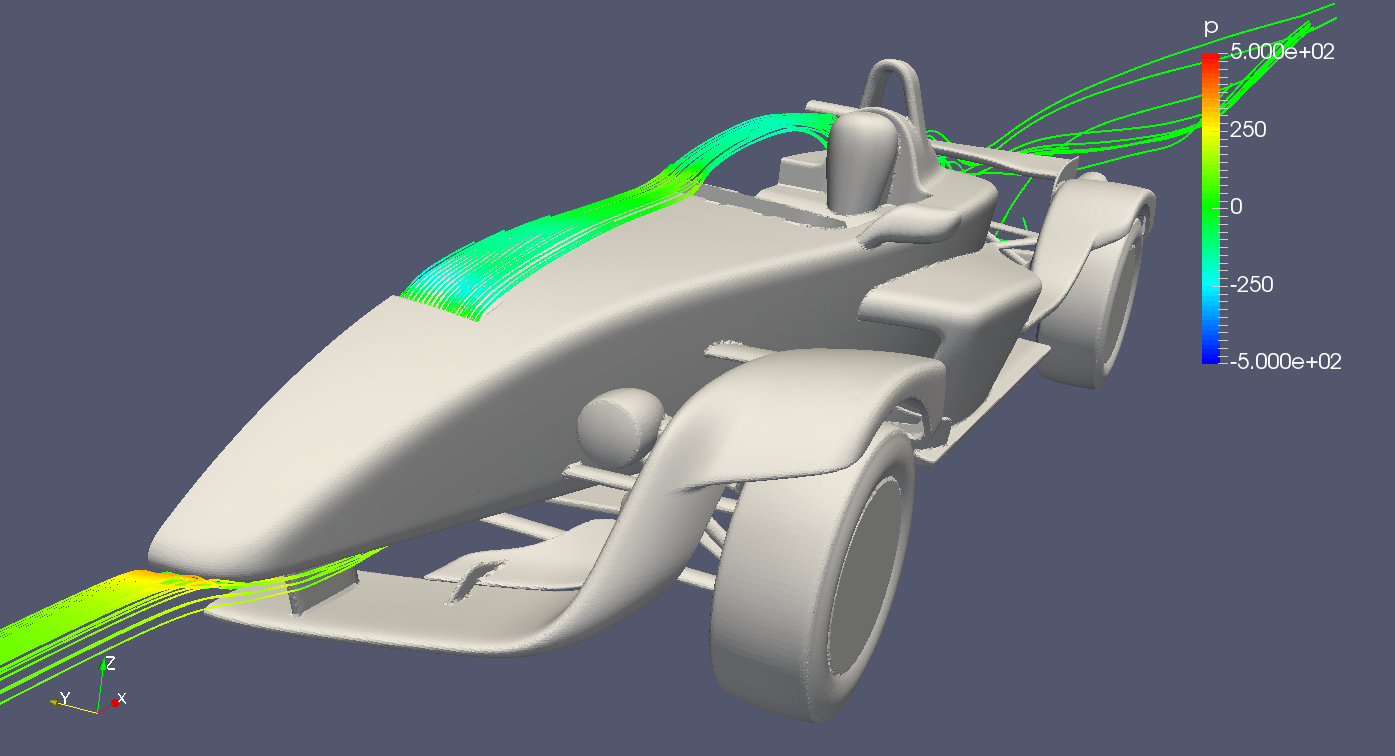

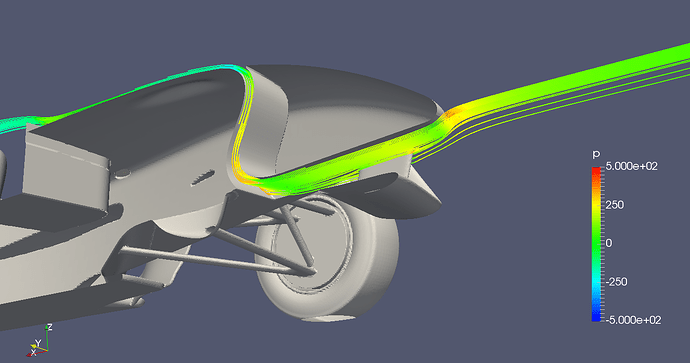

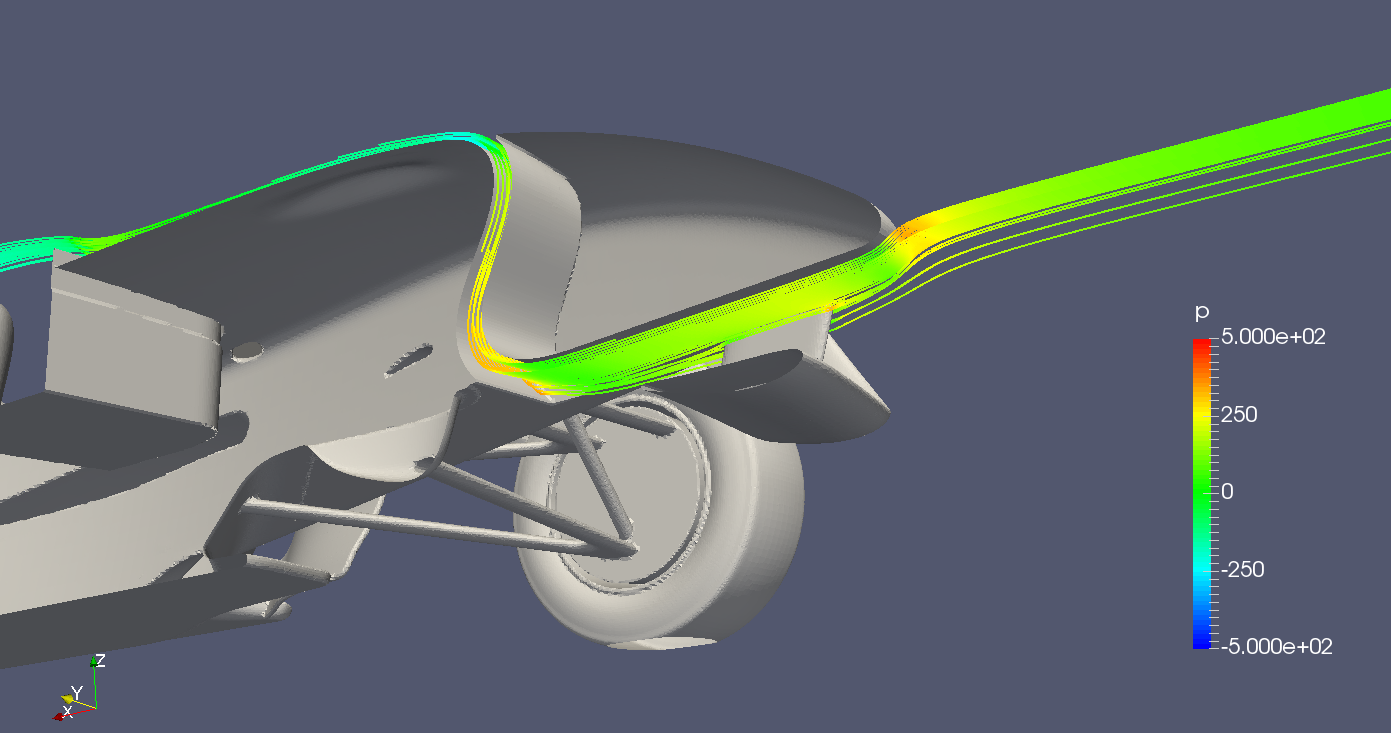

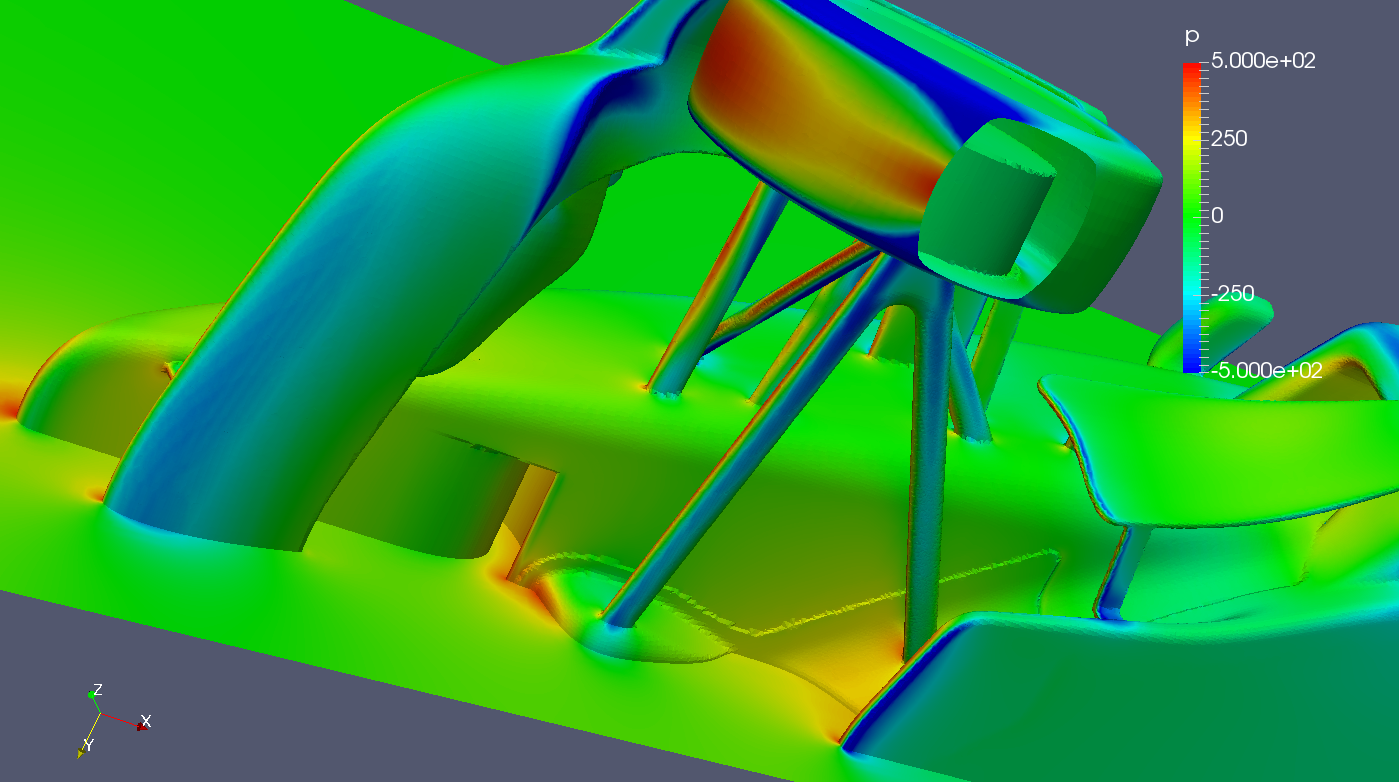

S-Duct Post-process (ParaVIew)

γ‚Ήγ‚―γƒͺγƒΌγƒ³γ‚·γƒ§γƒƒγƒˆ 2016-07-23 11.27.46.png1391Γ—733 214 KB

γ‚Ήγ‚―γƒͺγƒΌγƒ³γ‚·γƒ§γƒƒγƒˆ 2016-07-23 11.24.42.png1395Γ—756 308 KB

γ‚Ήγ‚―γƒͺγƒΌγƒ³γ‚·γƒ§γƒƒγƒˆ 2016-07-23 11.31.25.png1380Γ—754 254 KB

γ‚Ήγ‚―γƒͺγƒΌγƒ³γ‚·γƒ§γƒƒγƒˆ 2016-07-23 11.29.56.png1399Γ—782 509 KB

γ‚Ήγ‚―γƒͺγƒΌγƒ³γ‚·γƒ§γƒƒγƒˆ 2016-07-23 11.33.58.png1397Γ—803 471 KB

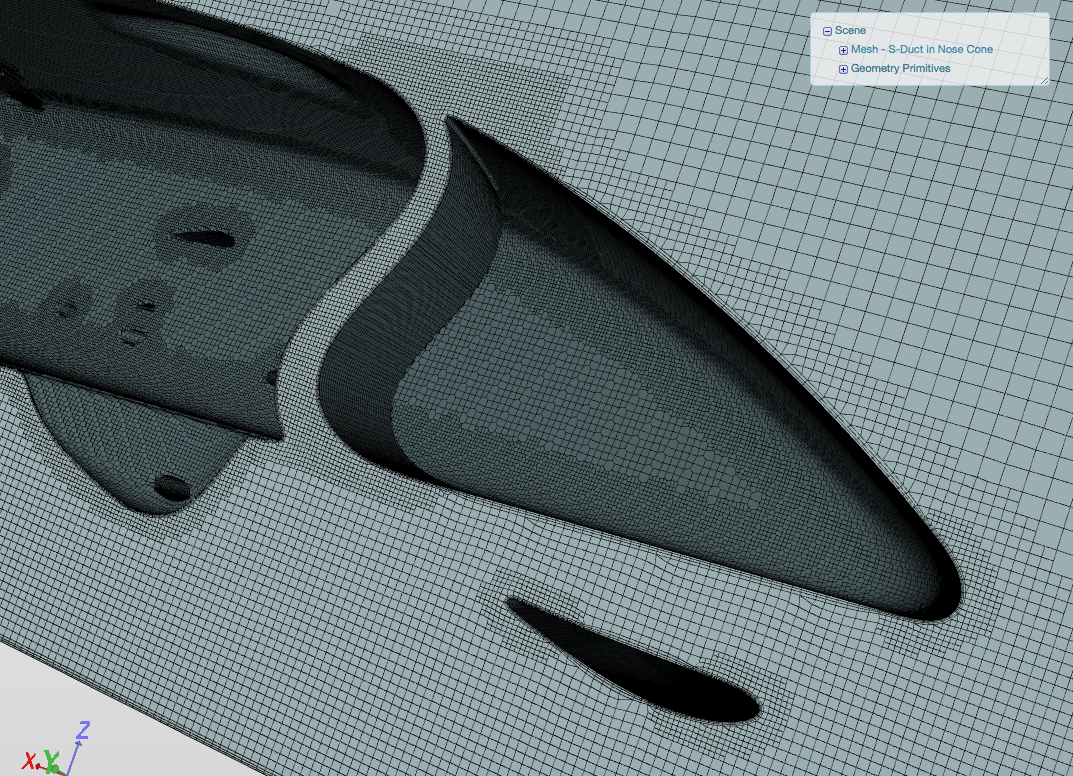

Mesh and CAD Images

γ‚Ήγ‚―γƒͺγƒΌγƒ³γ‚·γƒ§γƒƒγƒˆ 2016-07-22 22.44.46.png1073Γ—776 348 KB

γ‚Ήγ‚―γƒͺγƒΌγƒ³γ‚·γƒ§γƒƒγƒˆ 2016-07-22 1.35.41.png1169Γ—830 129 KB

4

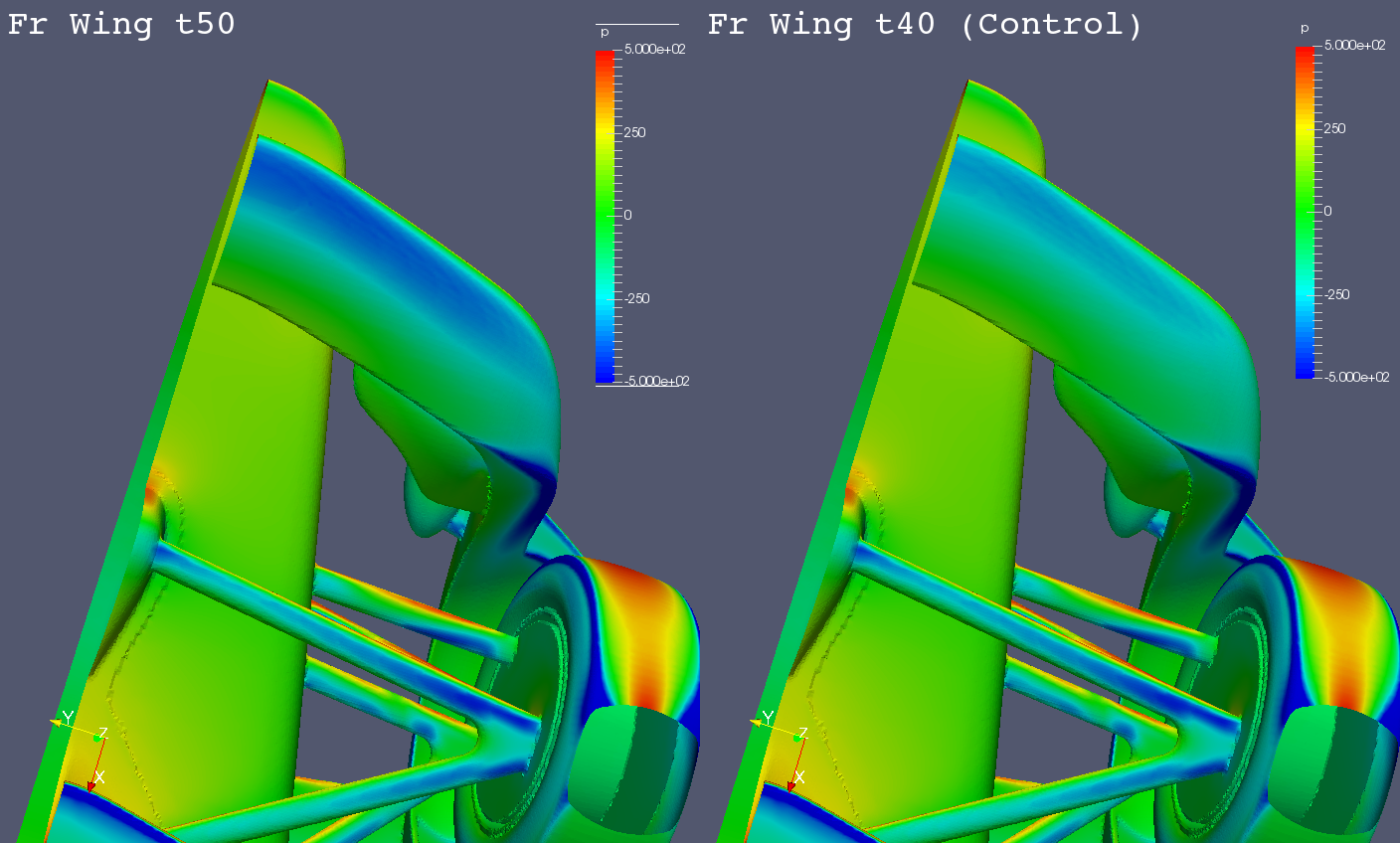

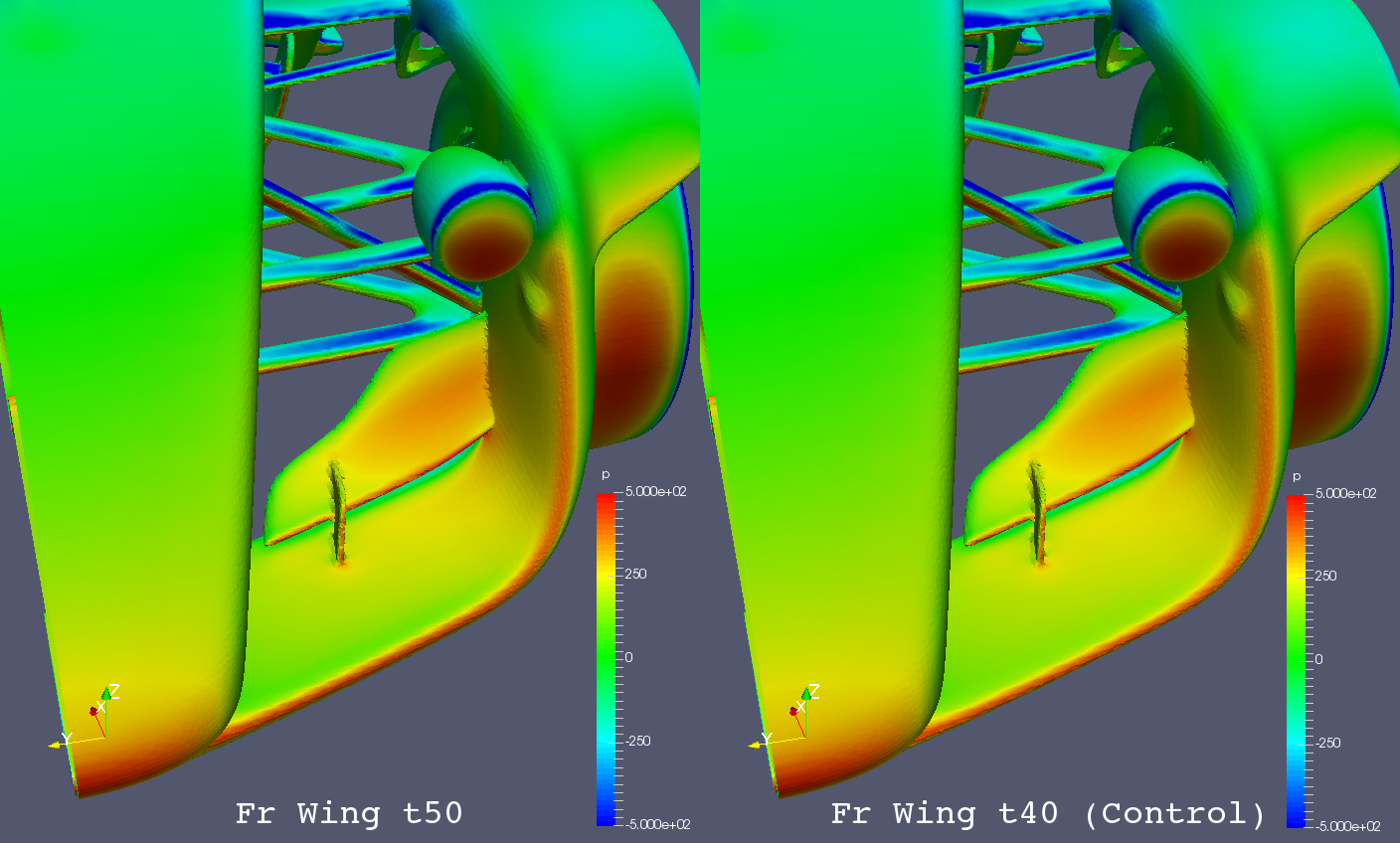

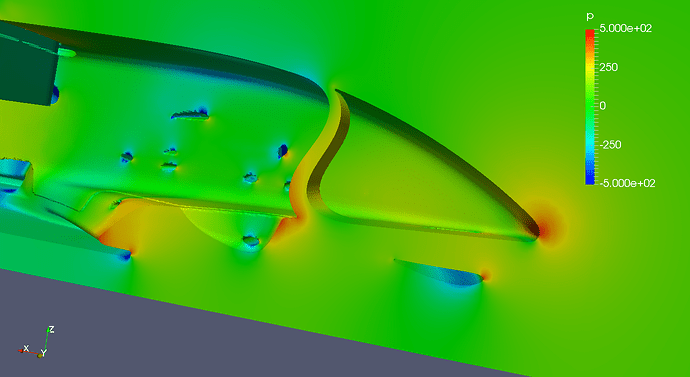

Front Wing Profile Thickness 40mm β†’ 50mm / Control - Pressure Comparison Pictures

fp-023b_fr-wing_t50-t40_top.png1408Γ—848 492 KB

fp-023b_fr-wing_t50-t40_bottom.png1408Γ—848 487 KB

5

Awesome study! Did you create the model on your own or did just modify it with your CAD tool?

6

Thank you, @afischer.
I designed the models on my own with Rhinoceros.

7

This front wheel deflector fin increases front lift force (= decreases front downforce ).
