F1 Aerodynamics Workshop HW 2

[jramon_mesa]

Continuing the discussion from Step-by-Step Tutorial: Homework of Session 2:

@jramon_mesa

Hi

I got for the F1 aerodynamics Workshop Homework 2 a Mesh Error for the Rear Wing geometry (the one with loures). The Rear Wing _2 geometry (withouth loures) meshed without problems

These are the Error messages in my Mesh Operation Event Log:

The tesselated surface is not closed. There could be a problem with the CAD geometry (such as self-intersections). Please inspect your geometry. Trying to proceed anyway.

Illegal triangles were found after surface tesselation. There could be a problem with the CAD geometry. Trying to proceed anyway.

Mesh quality check failed. The mesh is not OK.

This is the project’s link
https://www.simscale.com/workbench?publiclink=fcde0f5c-35ad-496a-963d-2e8045af1639

Please advice
Thanks for your help
Regards
Jorge

Hello:

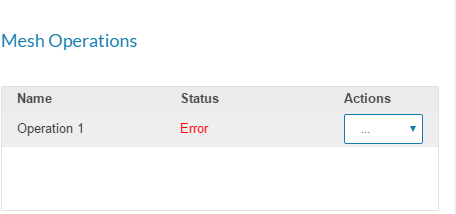

I was able to run succesfully the 3 simulations for the wing with loures ; but for the other one ; the software does not let me select the Unslotted Mesh. I did a little bit of digging and found that in the mesh creator tab for that mesh; i have this

Please Advice on what i could do ; Project link should be the same as i posted previously

SimScale Login

Thanks for your help
Regards
Jorge

[AnnaFless]

@jramon_mesa, seems that you got it sorted out - nice!

[jramon_mesa]

Yes , Milad Mafi advice me to just rerun the mesh causing trouble and that worked. thanks for your help
Regards
Jorge
