I am new to simscale can anyone please help me with following problem

  • I am attending Drone Design Workshop by simscale academy, so during Fem analysis of body as per instruction I was supposed to choose advanced static non linear analysis but I am not able to find those option while I am selecting analysis type. so I went with the Static calculix analysis.
  • In this I am not able to define physical contacts as per mentioned in tutorials as it is not showing options under global settings.
  • MY Project Link
    https://www.simscale.com/workbench/?pid=1775401593957644289#tab_1-0
2

Hi @ojagtap!

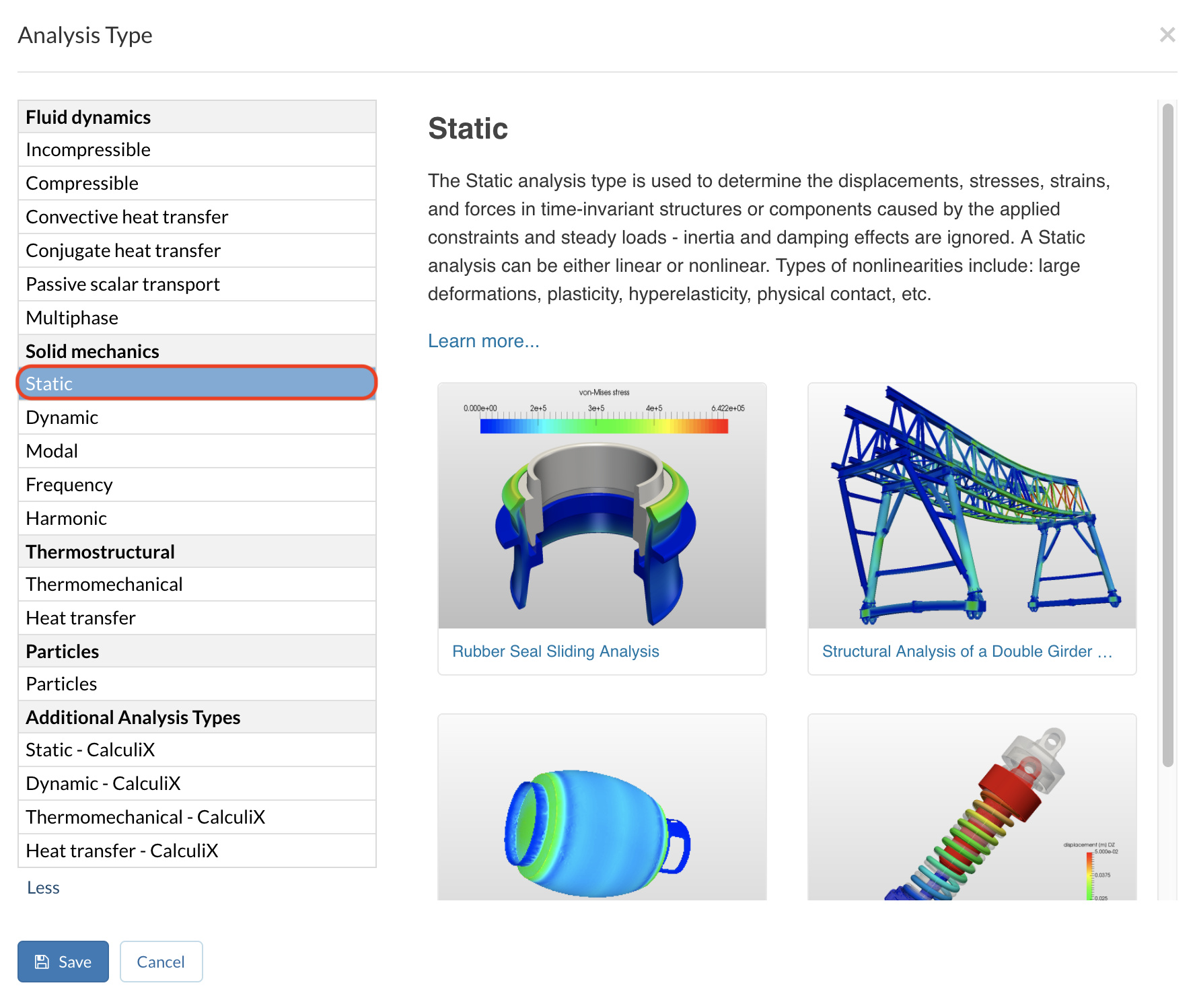

Choose Static as depicted in the picture below. You may then set the Nonlinear analysis to True.

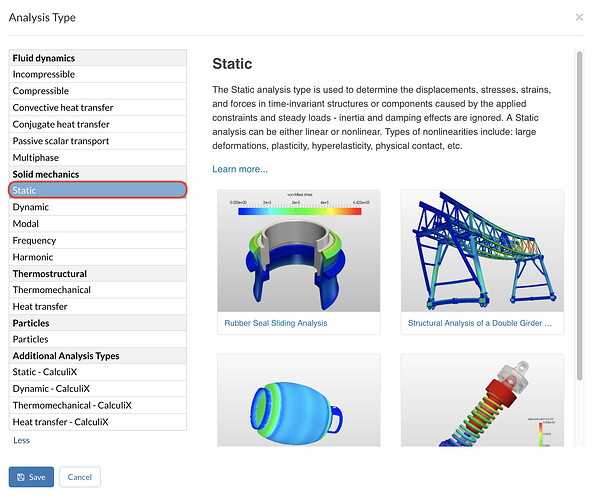

Nonlinear Analysis
Nonlinear Analysis1776×1498 439 KB

Tell me if this helped you!

Jousef

4

Thanks for helping me out, I really appreciate it :slightly_smiling_face: . I tried that one before but it didn’t worked at that time don’t know why. Hope it will take little to me time to adjust to a new interface. :sweat_smile:

5

Absolutely no problem @ojagtap! :slight_smile:

Yes I should update the tutorials that would be good. Thanks for that feedback, I will note it down :wink:

Let me know if you need any further help!
