Hi everyone,
Am working drone aerodynamics and am creating a mesh. Am almost through with mesh refinements, but am stuck at the refine surfaces. i can’t find a box to tick so as to assign volumes. Pliz help.

https://www.simscale.com/workbench/?pid=4133609793137011601#tab_0-0


#2

Hi @sbasiima!

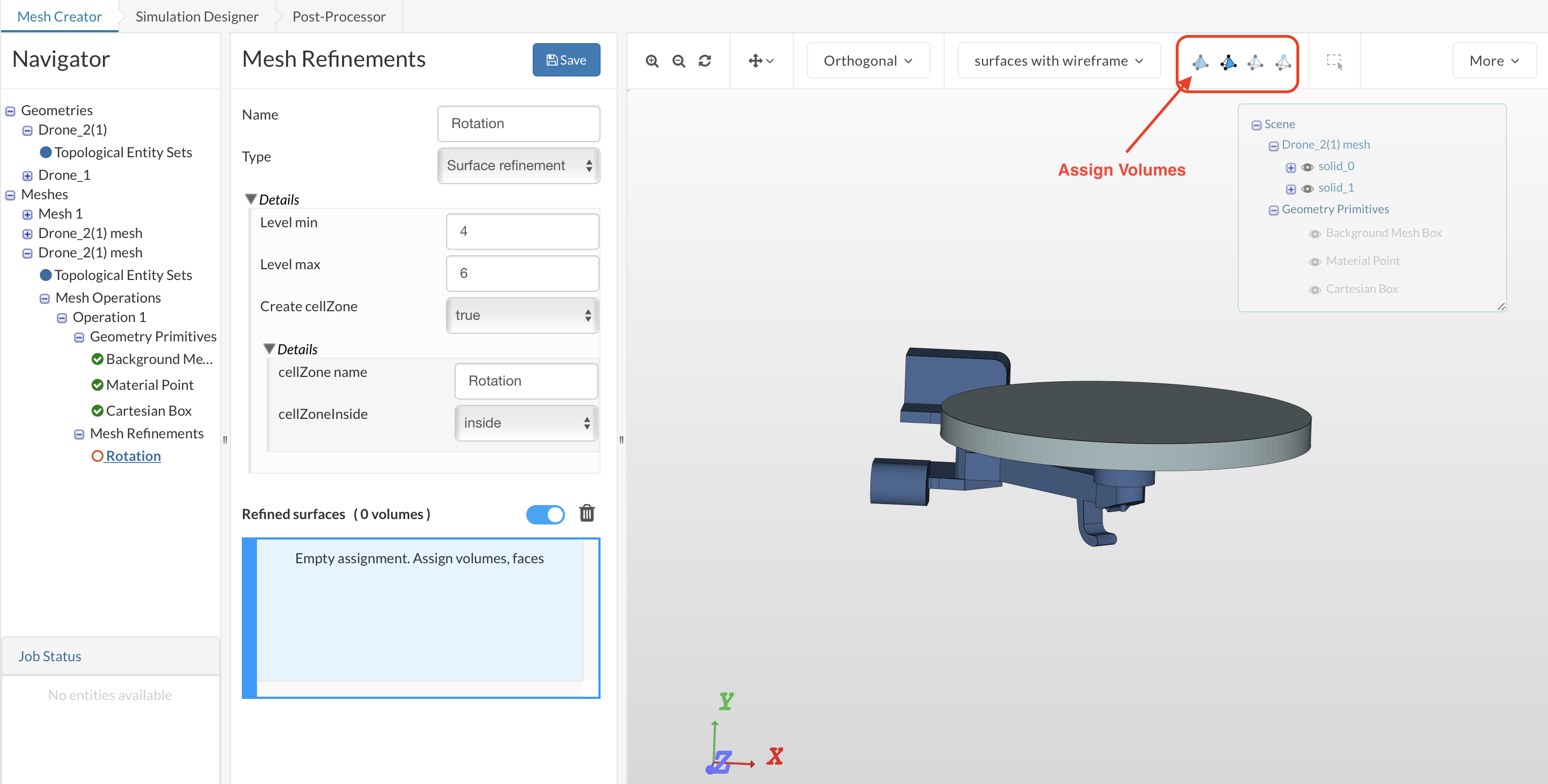

Not sure if I got your question but did you search the button shown in the picture below?

Let me know if that was what you were looking for!

Cheers,

Jousef


#3

Hi Jousefm,

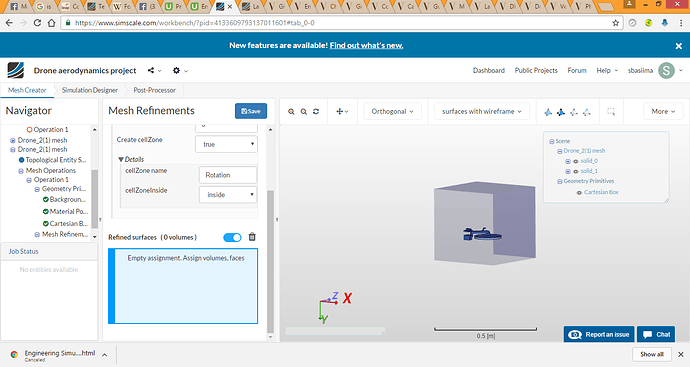

Thanks for replying. I did what you told me but there is no response. I want to assign 0 volumes for my mesh refinement drone 1 but i can’t trace that function. That is what i have been asking of you. Some of the functions on my page are different from the tutorial for example instead of snappy hex mesh, i have hex dominant parametric. So in the place of mesh refinements, where i have to assign volumes to zero, there is nothing just a delete button as you can see in the screen shot.


I hope you do understand coz i have been stuck since yesterday.


#4

Hi @sbasiima!

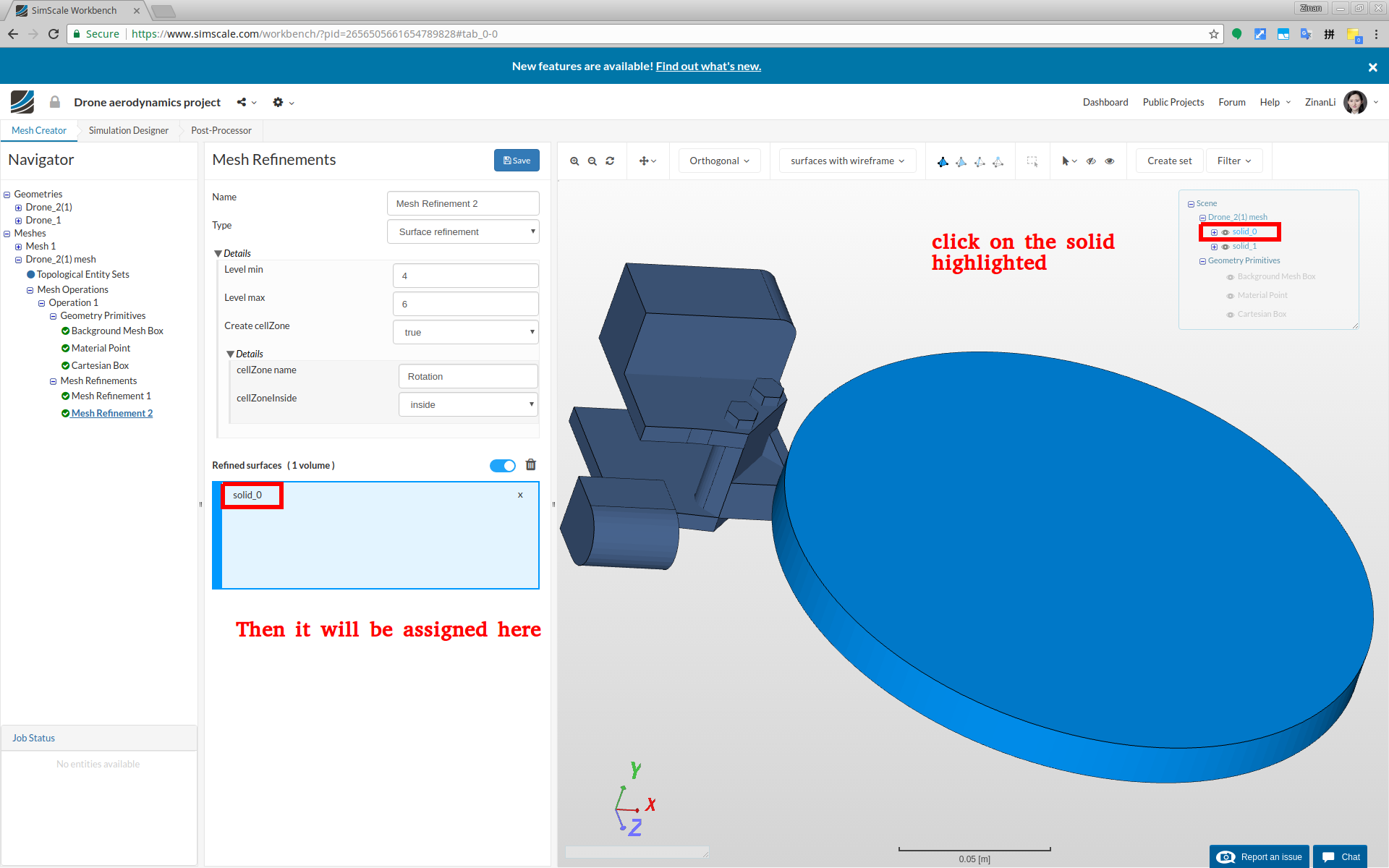

The simplest way for you to assign it is to select the solid directly from Scene List


I hope this answers your doubt.
Cheers!


#5

Great Thanks Zinan , IT WORKED
