# Cornering Flow Case of a racecar on SimScale

#1

I’m interested in examining the aerodynamic effects of cornering on a racecar using SimScale. After searching around, I found out from here that using a Multi Reference Frame is the way to go.

My question is how can I assign 2 boundary conditions on the same boundary as it is shown in this pic?

Any help or any suggestion on how to simulate cornering flow on SimScale would be greatly appreciated. Thanks in advance!

How to simulate formular car in cornering situation?
Solving an FSAE Cornering Aerodynamics Case with SimScale
Yaw Simulation for a fsae car
#2

Hi @pmparitakis!

Amazing project you are trying to solve here - very interested in the outcome!

The idea would be to create a domain that looks like the one depicted in the picture.

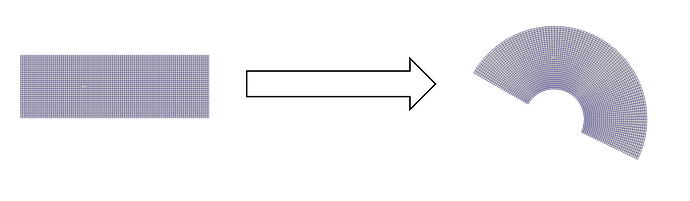

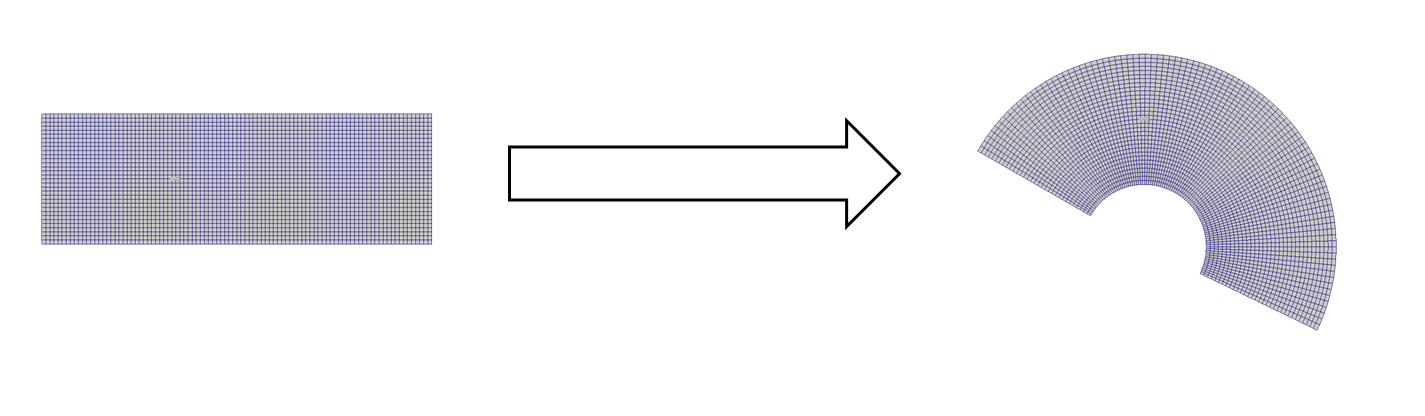

Fig. 1: Straight and curved domain

Another idea would be to have the car in a straight domain but slightly turned by a certain angle (5-20°) to mimic the cornering flow (depends on the track of course). For the boundary conditions you can define the velocity inlet (can also be zero to let the air be driven by the rotating frame) and pressure outlet BC as in other simulations that have been done on racecars and set the other faces to “slip” (except the floor - you could also put “slip” for the wall to avoid boundary layer development but that can be investigated in separate studies). For the MRF part you can set the rotating point to the radius (in your image where the \omega is).

Maybe our @PowerUsers_CFD want to add something I missed or did not mention that might be useful for your problem. Let me know if the information were helpful and please let us know when you have decided for a domain/finished the CAD model so that we may proceed with the fun part (aka. Simulation & Post-Processing).

Cheers and all the best!

Jousef

Sources:

Rolling Tires ruining results
