Cooled down flow in pipe


#1

Overview:

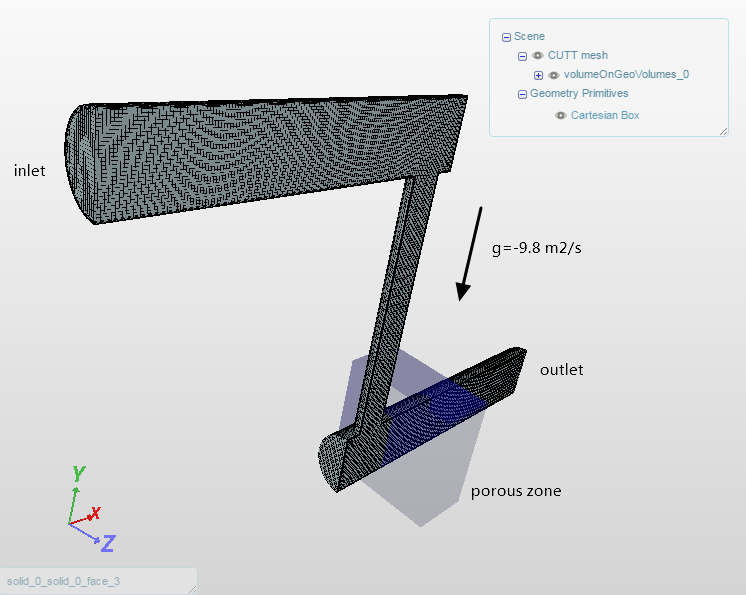

Flow with polynomial transport properties is being cooled down from the middle section wall of the pipe with porous zone (only symmetrical half of the channel is being modeled): project public link
Geometry was prepared with Salome software.

Results:

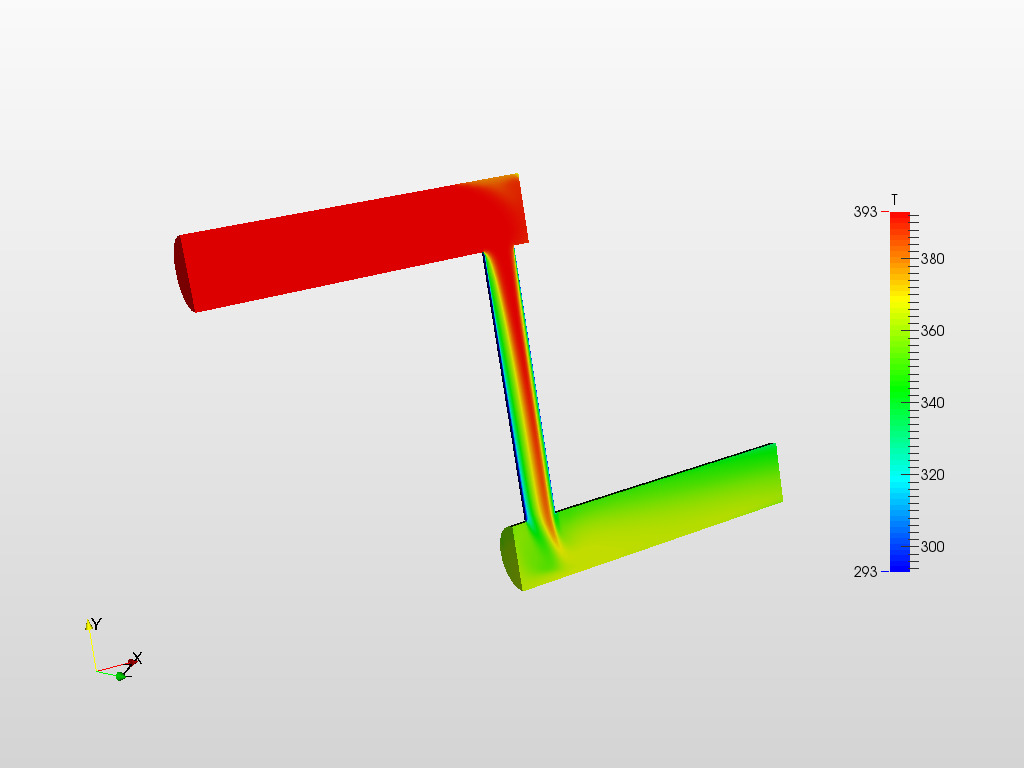

Results was post-processed on the local machine with ParaView software (dark background) and Simscale post-processor (last image).

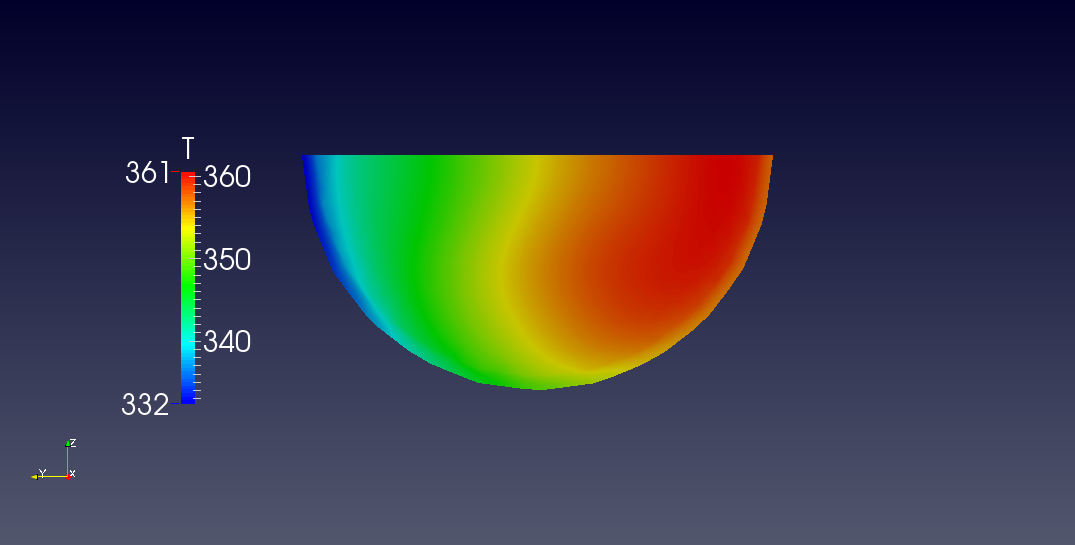

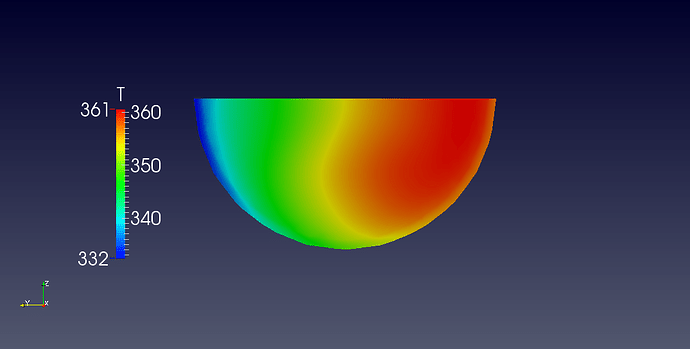

Averaged temperature at the outlet (patchAverage utility result) - 352.32 K:

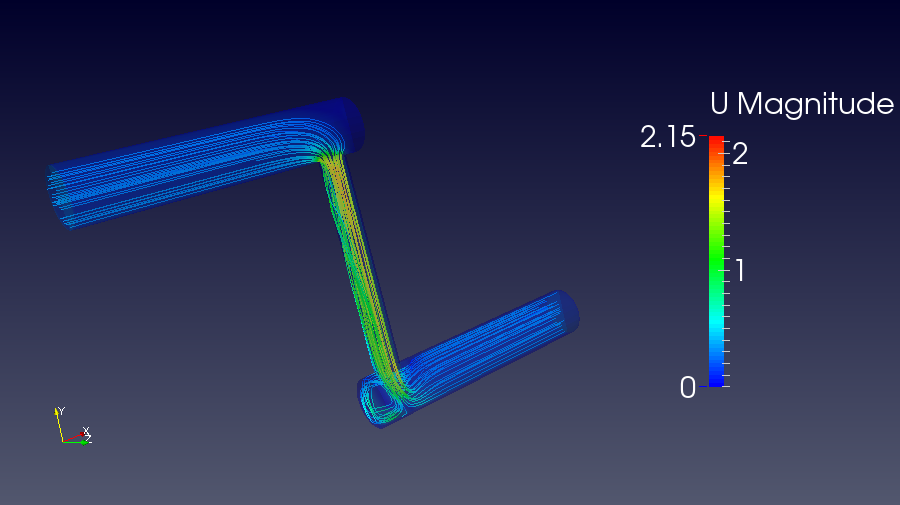

Velocity isolines:

http://imgur.com/HHnw9Fg

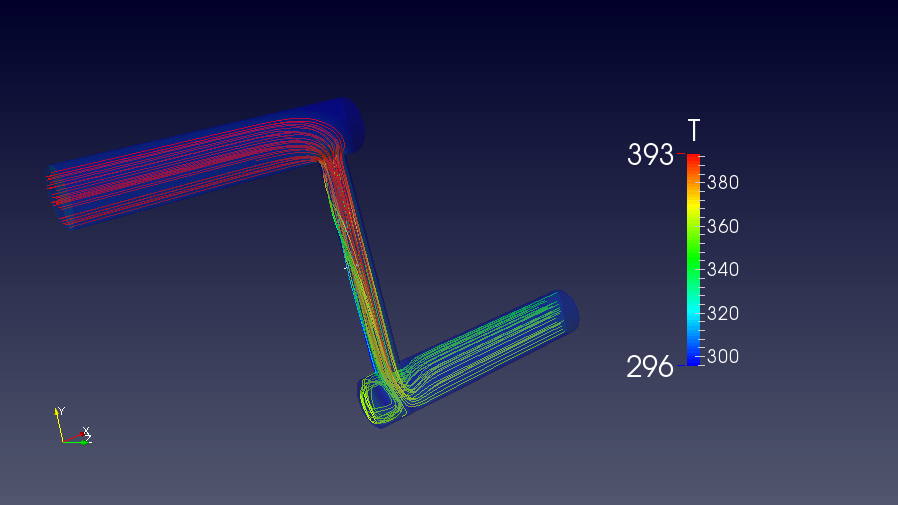

Temperature through velocity isolines:

http://imgur.com/UWNMZLa

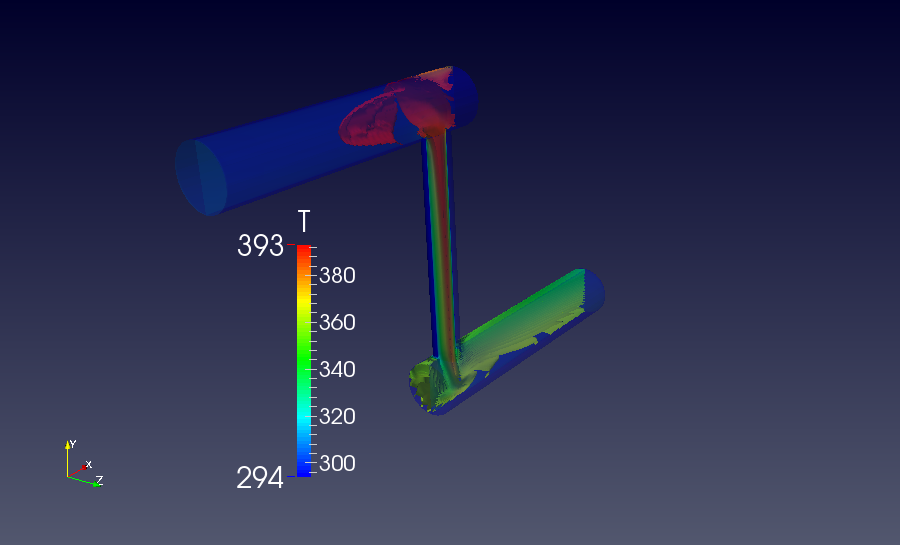

Temperature isosurfaces:

http://imgur.com/37CBZDD

Temperature field:
