Convert Facet to Advanced Geometry

[duybui04]

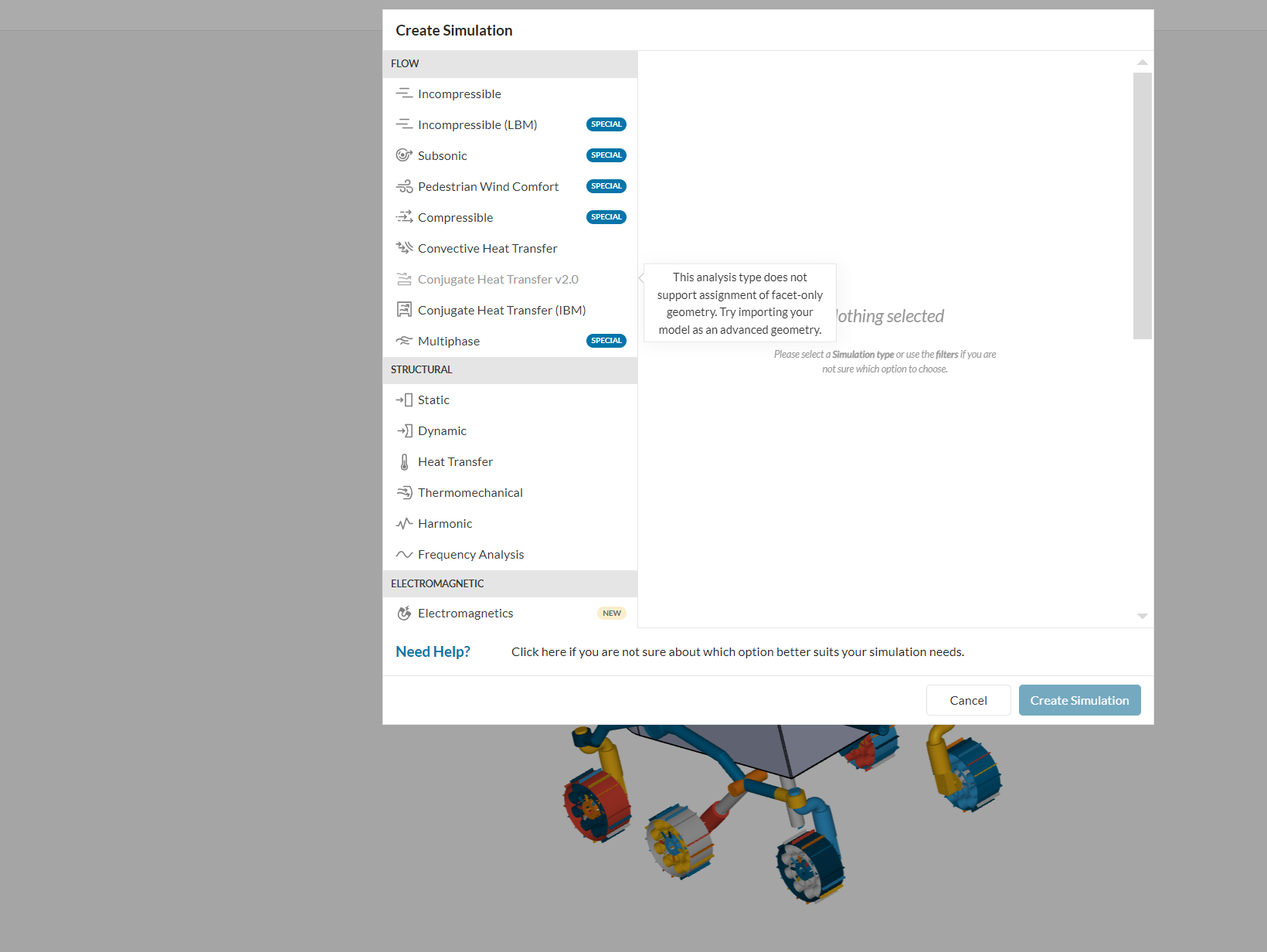

I am looking to conduct thermal analysis on a Lunar Rover model. It is a solidwork assembly. I am looking to run conjugate heat transfer v2.0 because it can simulate heat radiation. However, it said that it is unavailable for facet geometry and I need to reimport it. How would i convert it to advanced geometry?

Link to project: https://www.simscale.com/projects/duybui04/scarce/

[shenoy]

Hello duybui04,

Are you possibly using a ‘.stl’ file upon import?

Please refer to this forum post:

Convert faceted cad into parametric/advanced geometry for conjugate thermal transfer

I am designing a simulation to test the thermal dissapation of a heatsink. I used a STL file and it did not allow me to use the conjugate transfer due to the model being only faceted. Is there anyway i can convert it.

Best Regards,
Satvik from SimScale

[duybui04]

No, it’s a .sldasm file. which is the assembly file from solidworks

[igaviano]

Hi @duybui04

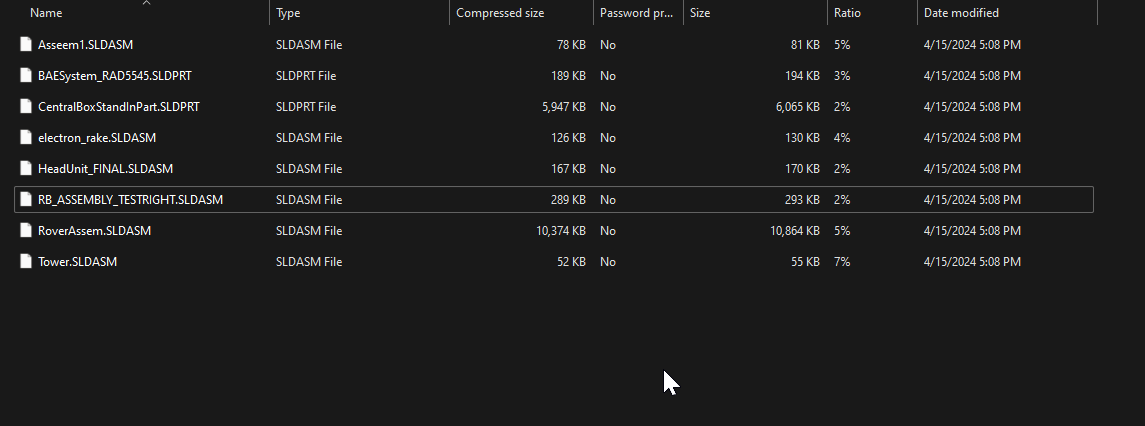

In my evaluation, that may be due to the sub-assemblies present in your folder:

A workaround for that is provided here.

Please tell me if that solves the issue

Best,
Igor

[duybui04]

I technically already did that (the zip file name is the same the main assembly name). But i will go ahead and try again. In the mean time, are there any other solution you can provide? I think its because of the cad file itself but I’m not quite sure how to fix that

Thanks!
