My project is simple I think, I am just trying to see the effects a heating pad has on another object that is separated by an insulator over a certain period of time. This project is meant to compare various insulators. I imported the geometry form 3ds max and the cad set up seems to be working, the problem arises when running the simulation and analyzing heat transfer. The insulator gets heated up by the heating element, but the heat the insulator takes does not transfer to the other element.
I am running a heat transfer simulation and there are three simple rectangles with varying properties. the heating element is the master assignment with the other two elements being slaves assignments.
This is my first simulation and I don’t exactly know what I am doing wrong. If anyone could help me that would be immensely appreciated.

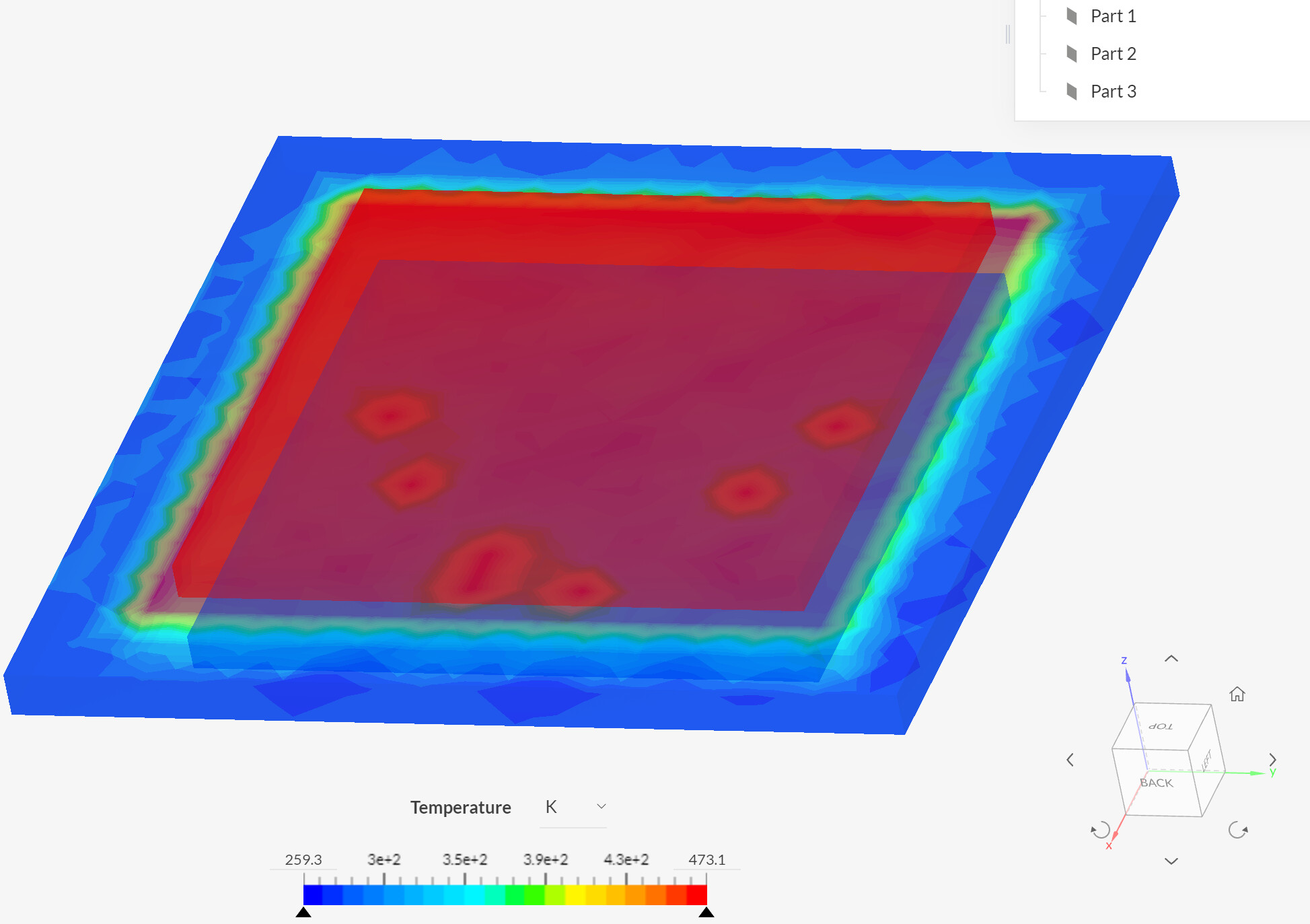

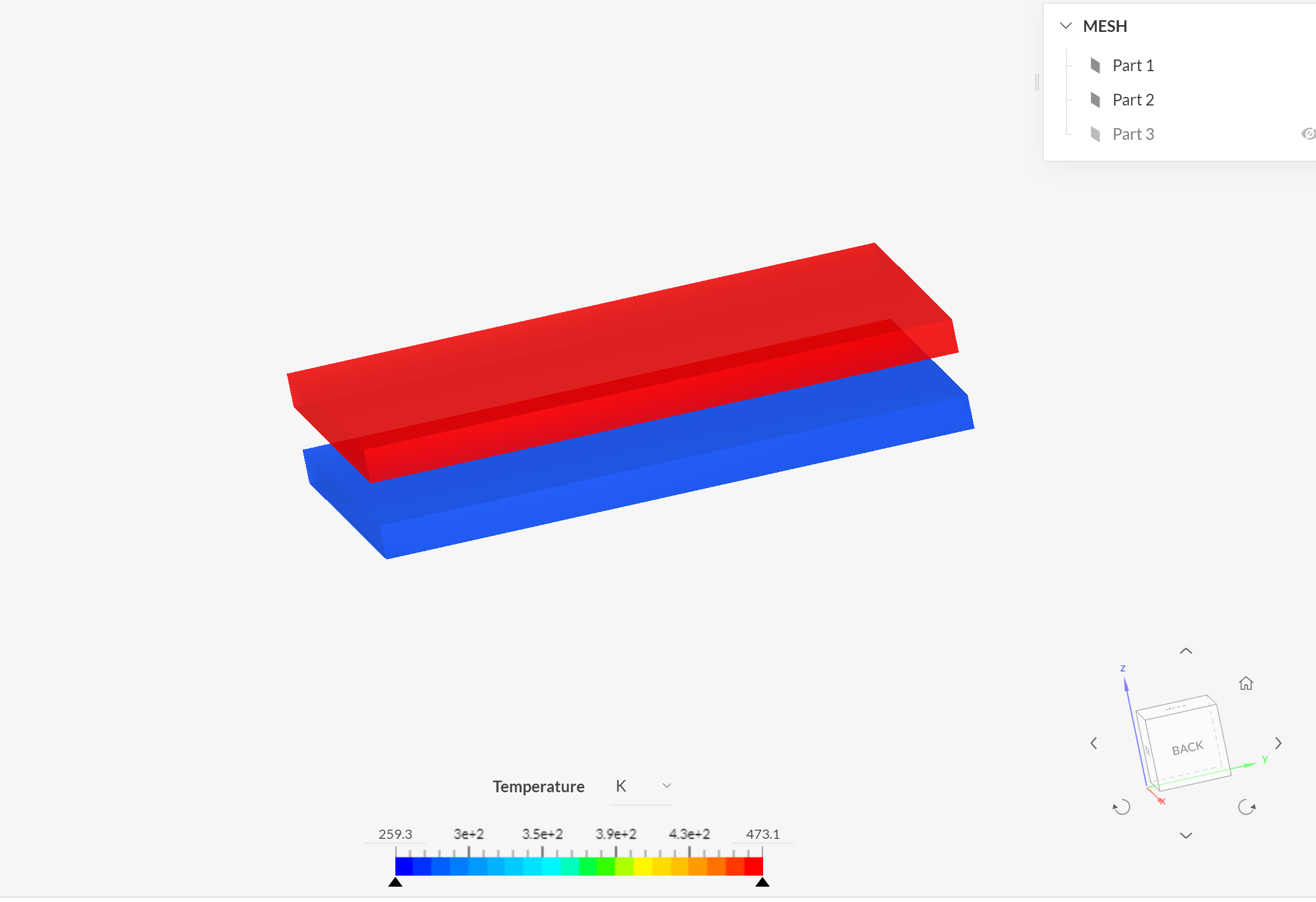

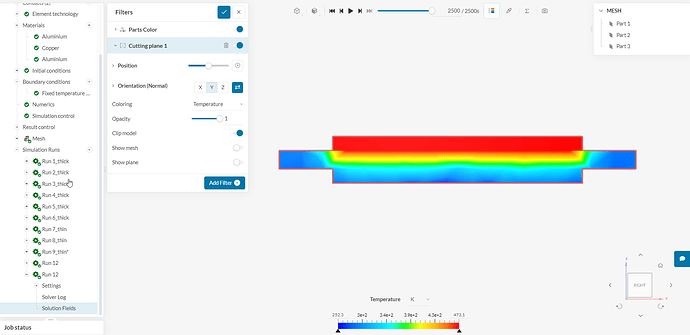

No heat is being transferred to the other element
