'cijeli_v2' simulation project by tang_napr


#1

I created a new simulation project called 'cijeli_v2':

jednostavno_cijeli


More of my public projects can be found here.


#2

Good job on the post-processing @tang_napr! :slight_smile:

How are things going and do you need any help so far?

All the best!

Jousef


#3

Thank You for the kind words @jousefm :slight_smile:

I will keep up the hard work :smiley:

At the moment, I am learning to combine Onshape - for fluid volume preparation - with Simscale, so I am grateful to any suggestion in that way :smiley: Also, havin some tiny difficulties with my latest meshes :confused:

Kind regards!

Richie




#4

No problem @tang_napr! :slight_smile:

You have a lot of models in your project, with which one do you have problems? And did you already have a look at our FSAE workshops? They explain very good what settings you have to choose in order to get a good mesh and carry out a proper simulation. Let the PowerUsers and me know if you need anything!

Best,

Jousef


#5

Dear @jousefm ,

last night I have found out where the problem is (with tha last 6 models) :slight_smile: I do not really know why it happened, but SW saved solid bodies as surface bodies - I am working on it using fusion at the moment :smiley:
Yees, I have a few of them :smiley: I learned a lot from Your workshops :slight_smile: Your Team is doing a great job with that - thank You all :smiley:

Thank You a lot!

Cheers,
Richie


#6

Thanks a lot for your kind words Richie (@tang_napr)! :slight_smile:

Just drop a message when you need help, we are there (almost) 24/7 :wink:

Cheers and enjoy your weekend!

Jousef


#7

Dear @jousefm ,

sorry for bothering You, but I am facing a problem with the latest simulations: “Whole_car_w_diff_v1 to v5”.
I would be very grateful, if You could throw-an-eye on it and maybe give some suggestion. :smiley:

Thank You a lot!

All the best :slight_smile:
Richie


#8

Hi @tang_napr!

First thing that I saw is that you have more than 2600 illegal cells on your geometry. I would first fix the pre-processing issue before working on the simulation/processing part :slight_smile:

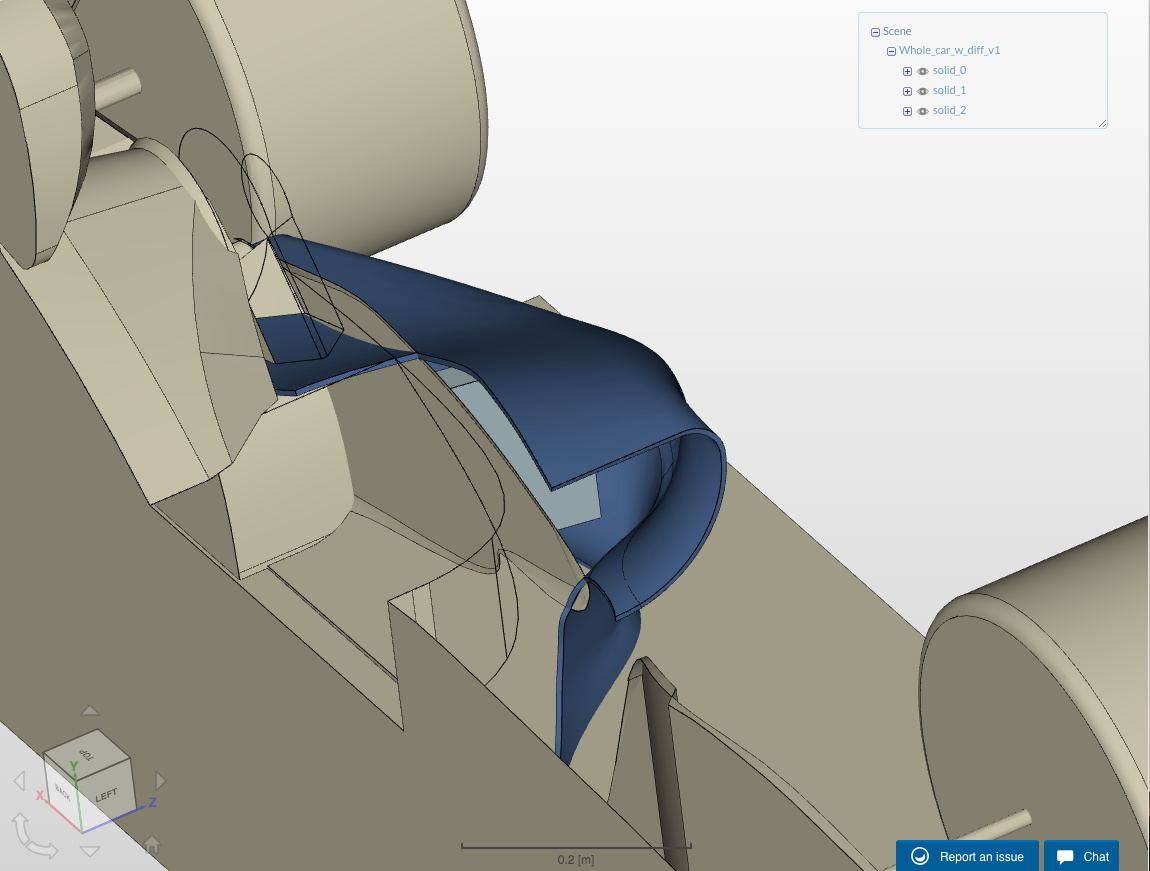

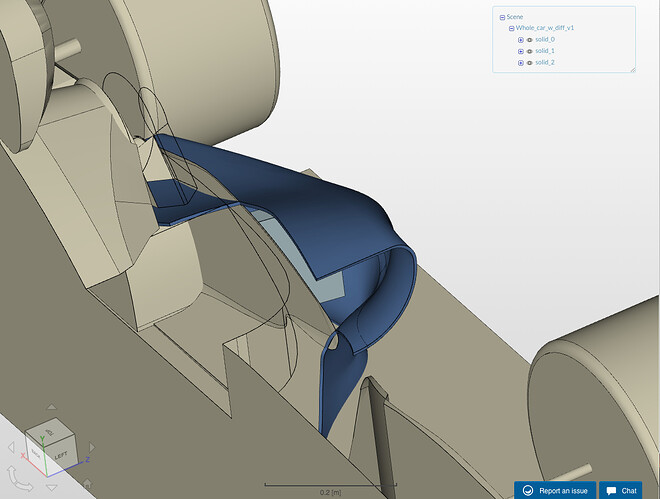

That might be because the geometry looks a bit odd in my opinion and I saw that there are some kinds of intersections inside of it (see picture below). Tagging our experts @yosukegb4 and @pfernandez here who might give you a little bit more information on how to fix your geometry properly!


Best,

Jousef


#9

HI @jousefm !

Sorry for the late answer, but I had some test to take in the last two days so I way away :smiley:
Thank You for Your advice - I will work on those :wink:

All the best :slight_smile:


#10

Hi everyone !

I’m sorry for late reply.

The domain meshes of these failed simulations are large meshes over 25M nodes.
Is there a possibility of errors caused by memory overflows? @jousefm

Anyway, I think a mesh with nodes over 25M is too large for that kind of simulations.

Best,
Yosuke Yamamoto


#11

Hi guys!

25M nodes are way too much and the number should definitely be reduced. Once this is fixed there should be no problem in running the mesh.

Best,

Jousef


#12

Hi people!

Thank both of you for your answers! :smiley: I will reduce them and try another sim. :slight_smile:

All the best and keep up the good work! :wink:

Regards,
Richie


#13

Hi Richie,

thanks a lot for your kind words! Let us know if you encounter any problems.

Best,

Jousef
