Bad Quality Mesh

Using SimScale CAD & Meshing
1

Hello! I am new to Simscale, I am trying to run an air flow simulation on a 3D printer part cooling duct.

No matter what I try I get a bad quality mesh. Specifically it says I have a lot of cells with Non-orthogonality. I have looked through he article about mesh quality, but I am not sure what I can do to get the Non-orthogonality lower. Could someone please give some some guidance on how to fix this?

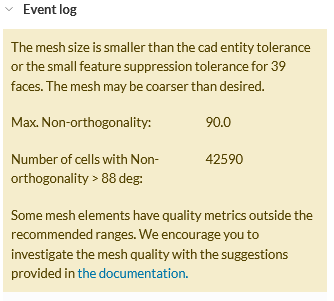

image334×301 5.56 KB

Regards

2

Hi, it appears that the project was deleted.

Can you double check? :slight_smile:

3

Hey! Thanks for the reply.

I figured it out actually, I just needed to use a Hex-Dominate mesh rather than standard.

So i’ll leave this up in case anyone has a similar problem :slight_smile:

Have a nice day!

1 Like
