Background Mesh and Cartesian Box mesh didn't generate?


#1

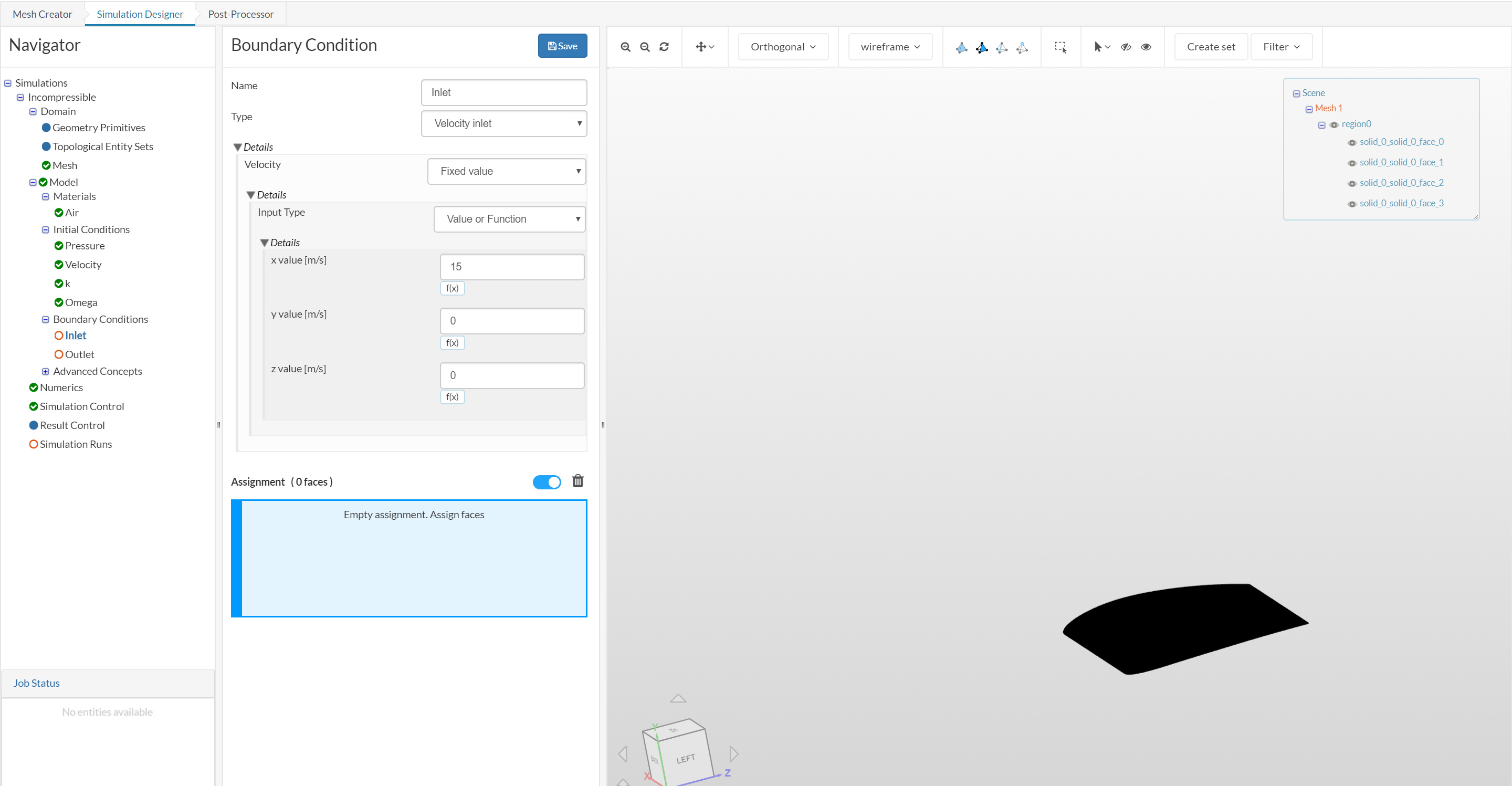

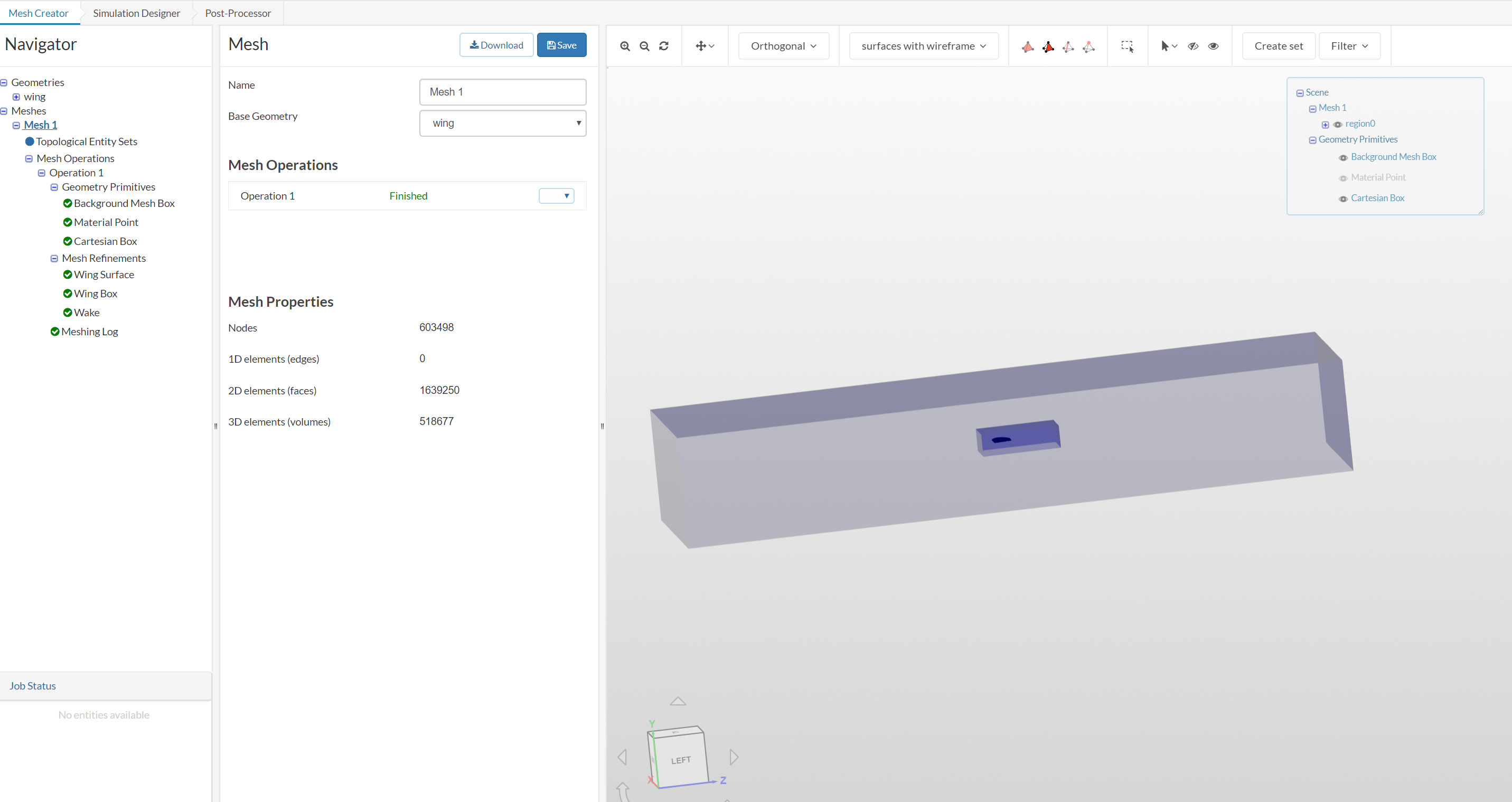

I’m having some trouble generating the mesh for a background and cartesian box. I successfully generated a surface mesh for a wing, but I am unable to view the other meshes. I can see them in the mesh creator tab, but not under simulation designer. Anyone have any ideas as to why? Thanks in advance.



#2

Hi @sadeghir97!

Currently having a look at it. Let me do some test and try to reproduce this. Getting back to you asap.

All the best!

Jousef


#3

Hi @sadeghir97!

That was a small glitch that does not occur at the moment (cannot reproduce it). I have invited you to an optimized project I have set up. Let me know if you got the message. If you encounter any of these issues again please let me know.

Cheers and happy SimScaling!

Jousef


#4

I did not receive it. I think I’m doing something fundamentally wrong because I tried creating a new mesh and I get the same result - no box meshes :confused:


#5

Hi @sadeghir97!

Alright. Can you please make sure that your Material Point is not inside the geometry but somewhere inside the bounding box?

Let’s try that and see if it still occurs :wink: All the best!

Jousef
