STL File mesh from ArchiCad19


#41

Hi Ani,
I don’t know how that happened but now it works.
Actually I’m only able to show the values of one node on the plot.
Other points are on the list but no plot.

Here the screenshot

Can you tell me how i can schow the other points on the same plot?
Other issue: if i want to show the plot i I need to leave the project and reopen. Is there an other way?

Name of the project: Comici2224TrisTest0-15-30

Thanks

Andreas


#42

Hi Andreas

Sorry, I completely forgot to make the video on “how to make the plots”. I will make one and share it here by today.

Thanks
Ani


#43

Hi Andreas,
You can take a look at this-

HOW TO MAKE A PLOT ON SIMSCALE

Thanks
Ani


#44

Uploading: SimScale Workbench - Mozilla Firefox 14.04.2019 18_37_43.mp4…


#45

Hi Andreas,

This file is not opening.


#46

Hi Ani,
thanks for the video.
I tried to sent you a video but no chance.

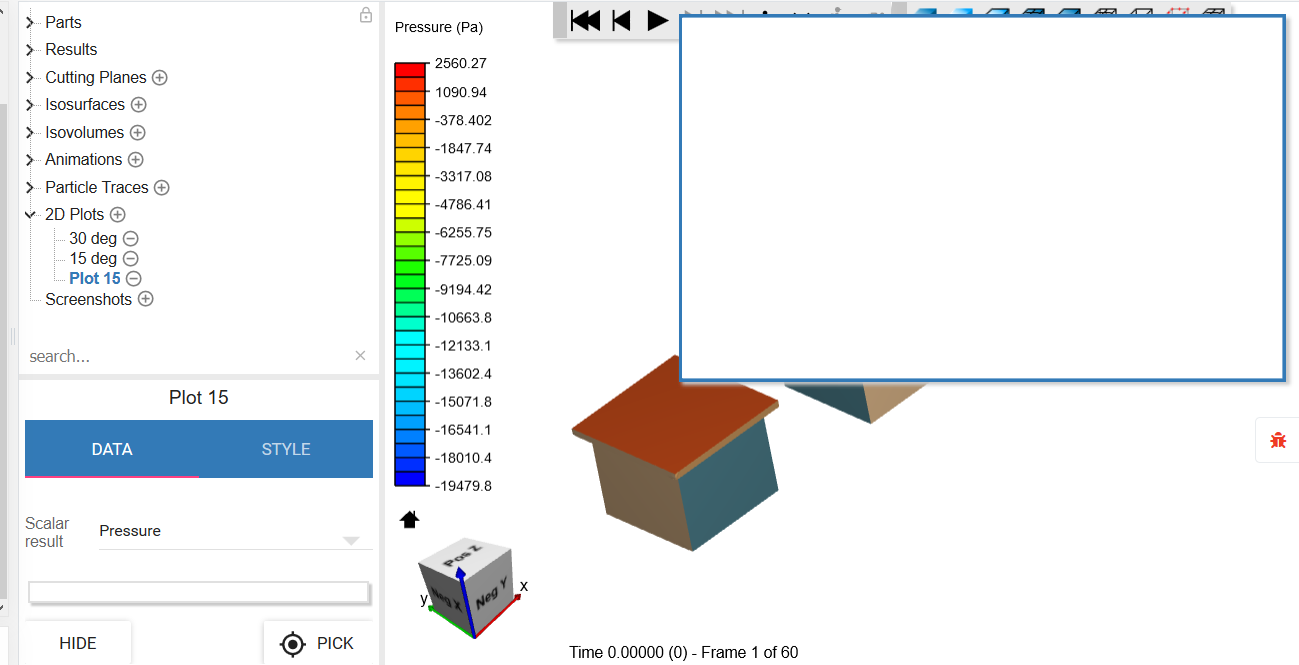

I follow your instructions but the plot sheet doesn’t work.

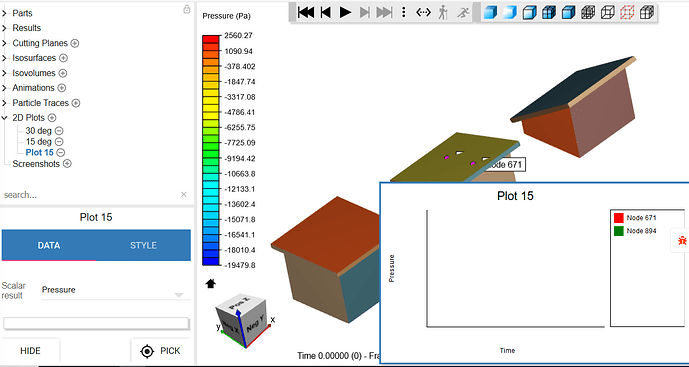

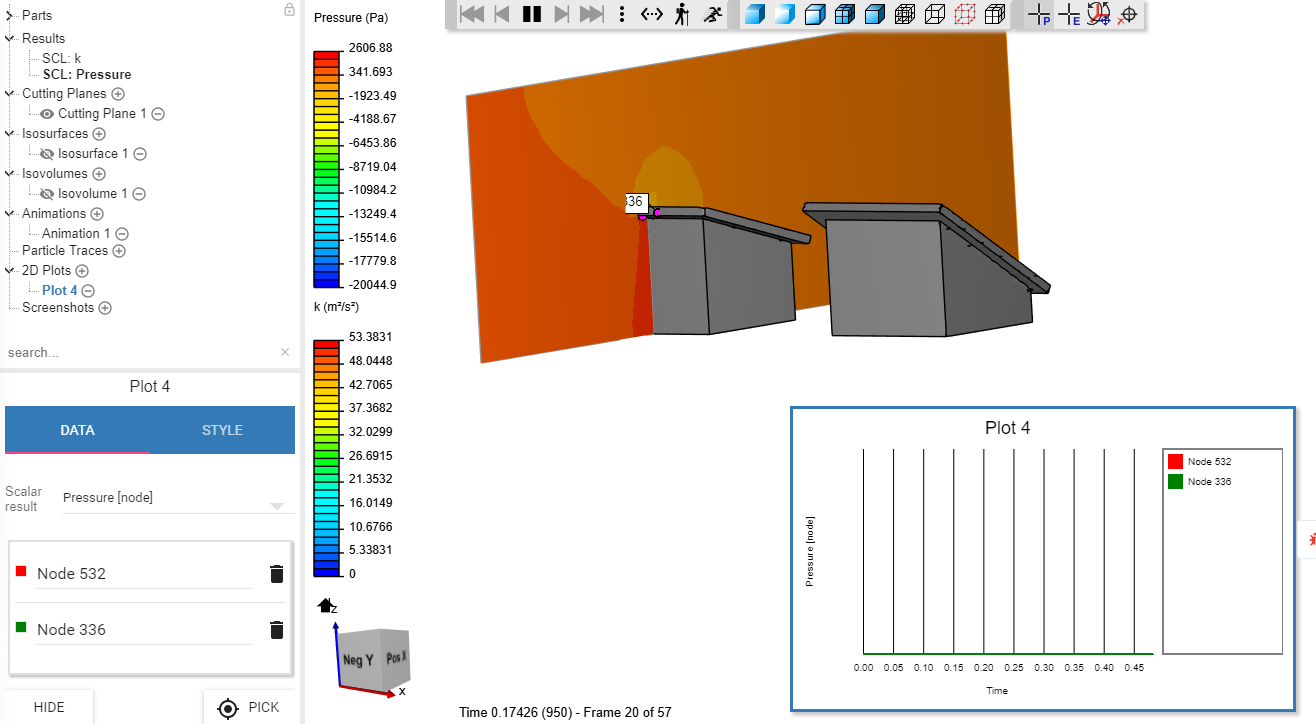

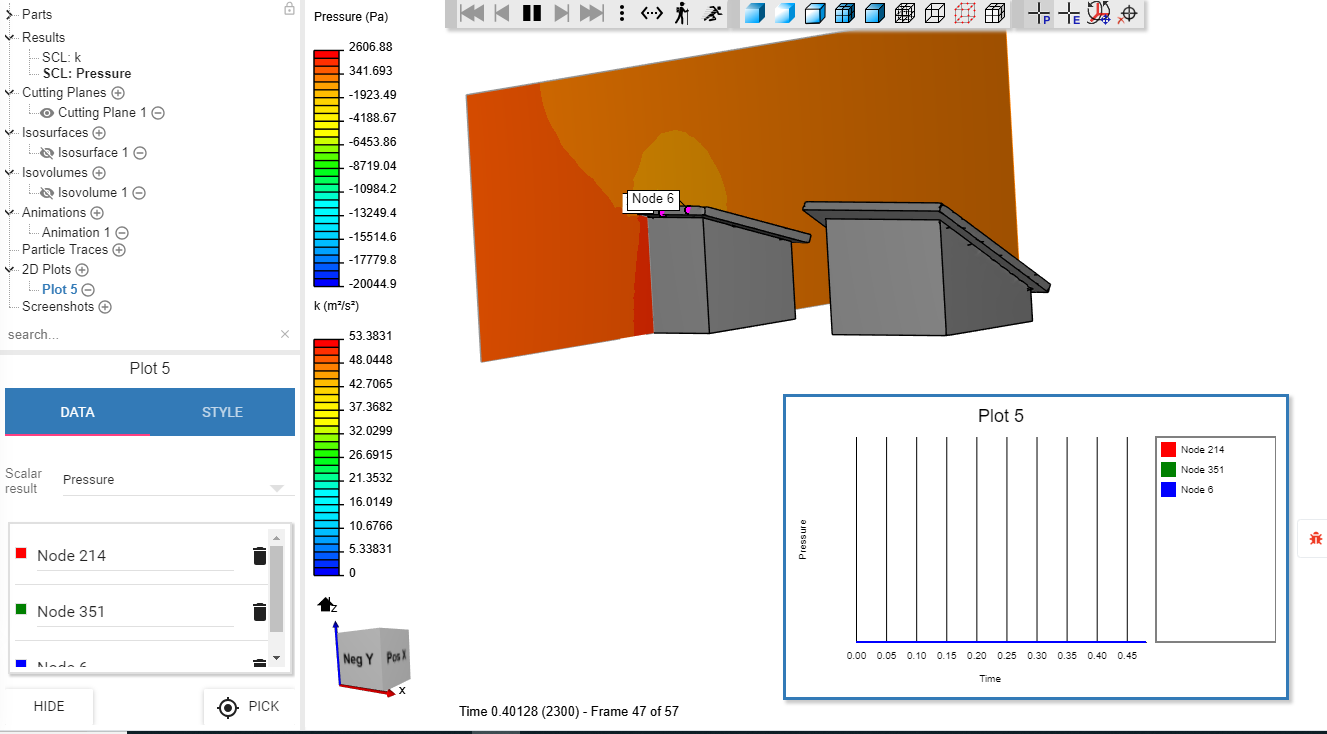

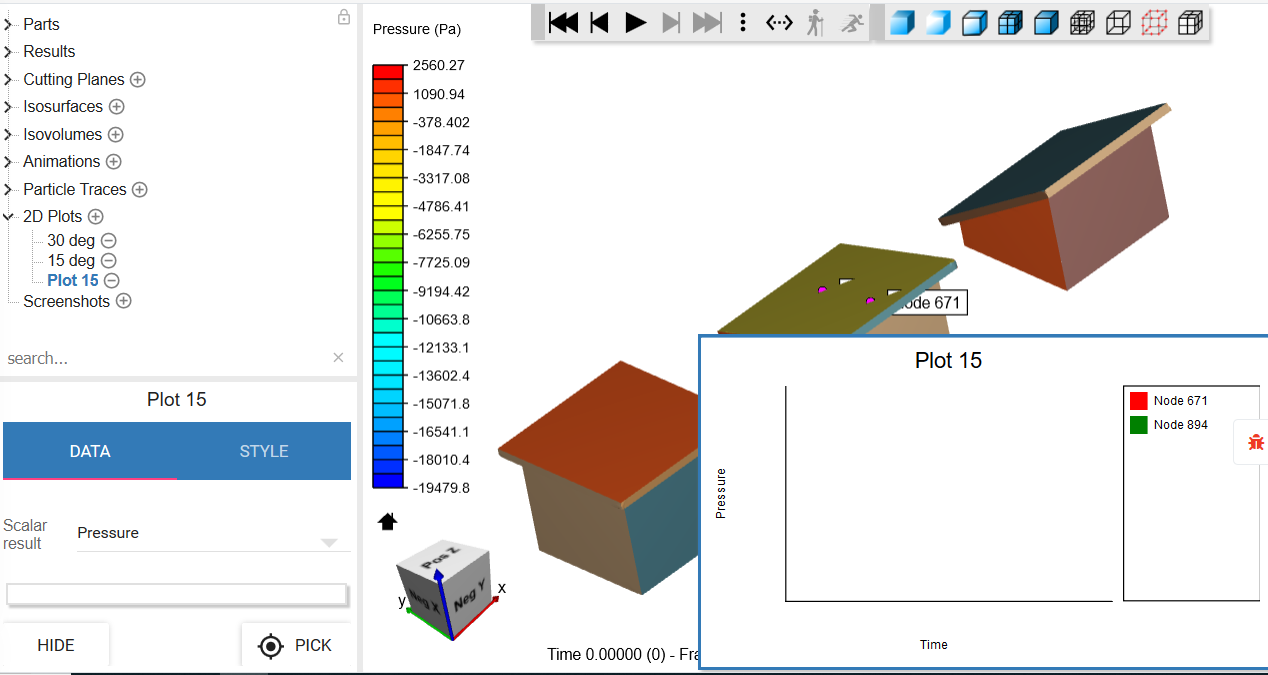

Here a short fototdocumentation:

emphasized text




#47

Hmm that’s strange :thinking:. @jousefm, Andreaz is still having trouble in making the plots. Is there any problem in the plot viewer(although it worked fine on my system)?

You can upload the video on the drive and send a link of that.


#48

That’s odd Andreas. Let me forward this to our engineers - getting back to you as soon as we know more.

Btw: Can you give me some more information on your system? Which OS, browser you are using? I would go with chrome, delete the cache and see the issue persists.

Best,

Jousef


#49

Hi Ani, hi Jusef,
here the link of the video: https://drive.google.com/file/d/1sLIGskElZWTKcPL1_FvmWRHlEZhvG9eP/view?usp=sharing
System: Window 10 Home
Browser: Firefox

I try with Crome now

Best

Andreas


#50

Same situation with Chrome


#51

Try to pick pressure[node] in scalar result options and plz tell if that is working or not


#52

Hey Andreas,

Not sure if you have followed these steps but let me quickly summarize what should be done in order to make this work.

  • Finish creating an animation so the data for the steps is there.
  • Select field from “results” to plot
  • Pick in the model to draw plot

Best,

Jousef


#53

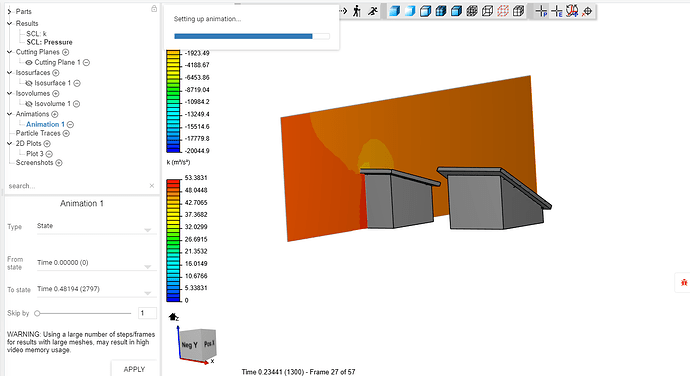

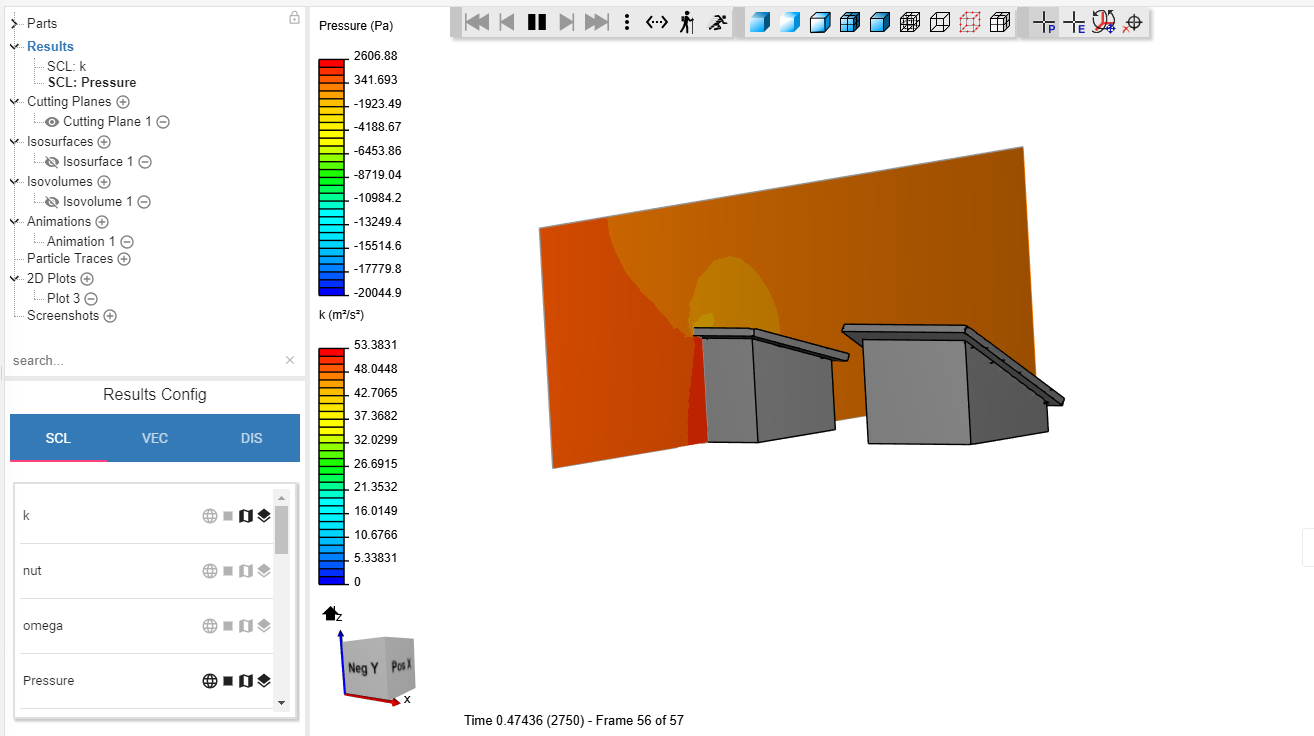

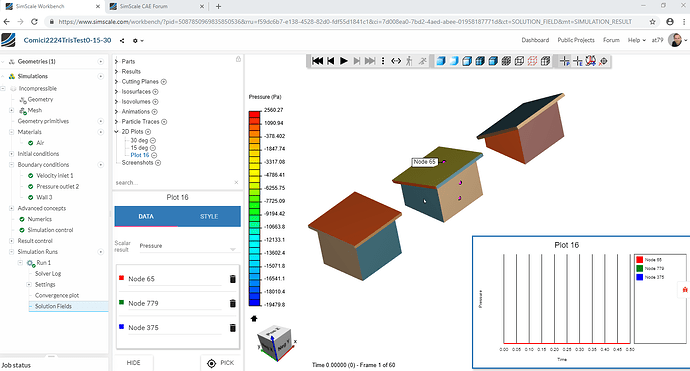

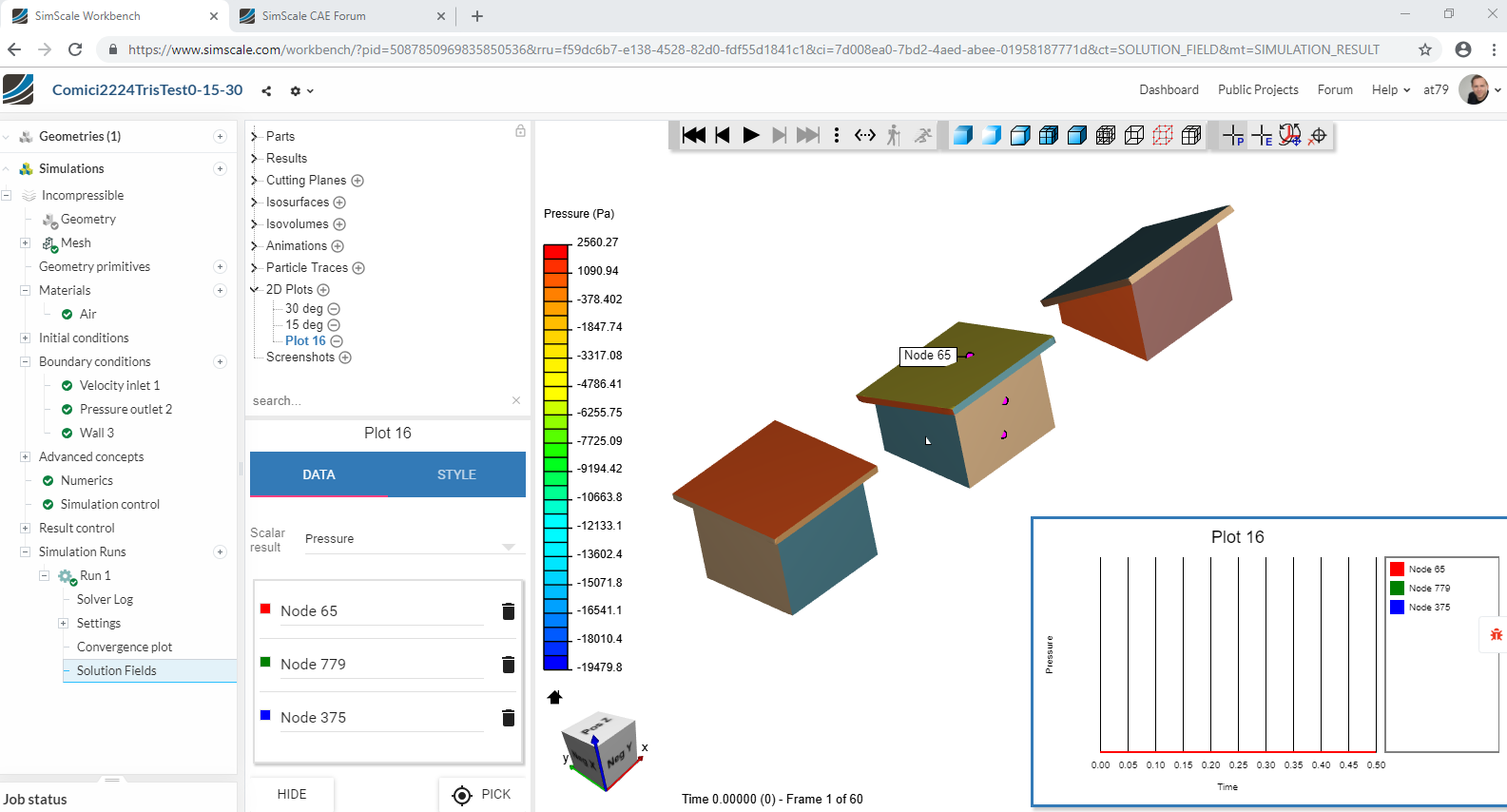

Here the steps bevore I have to go to sleep :slight_smile:

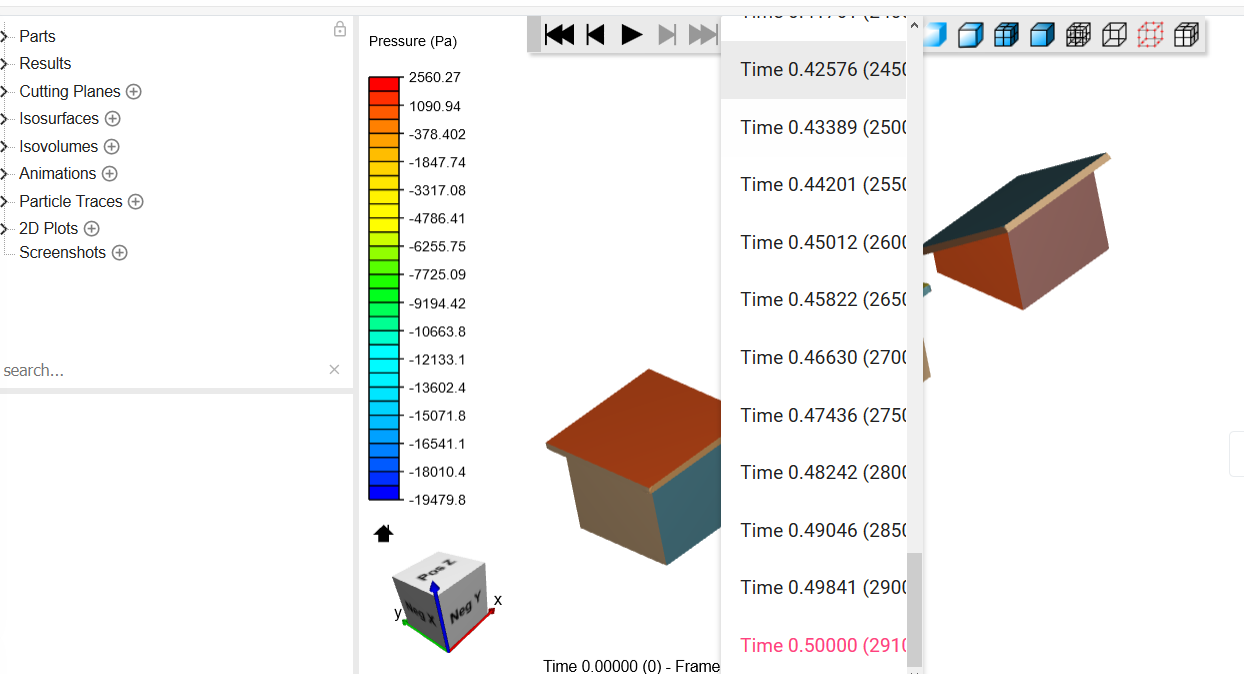

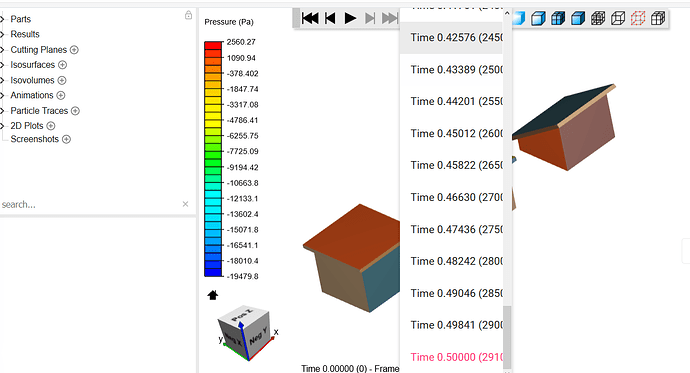

Results

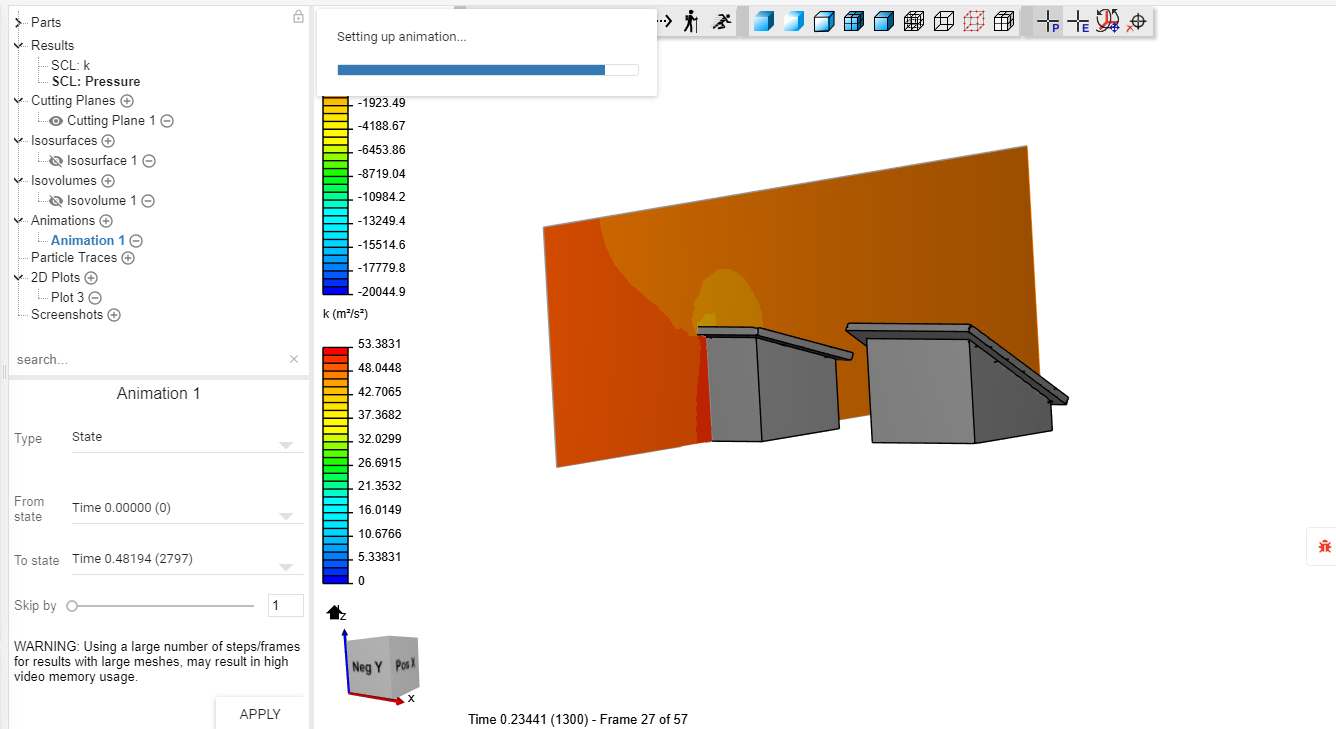

Animation

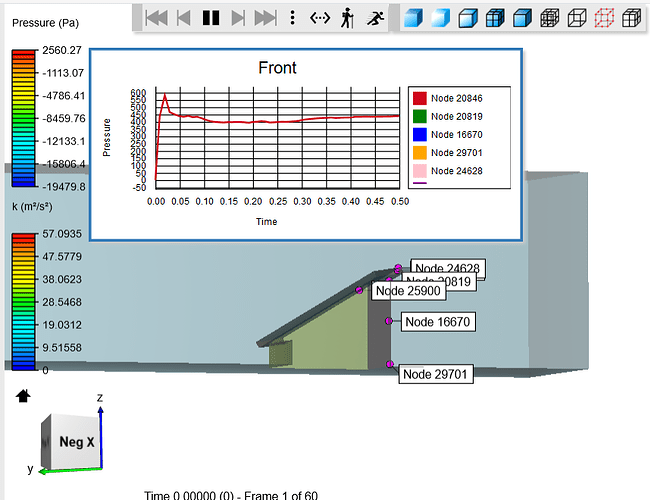

Plot: Pressure node

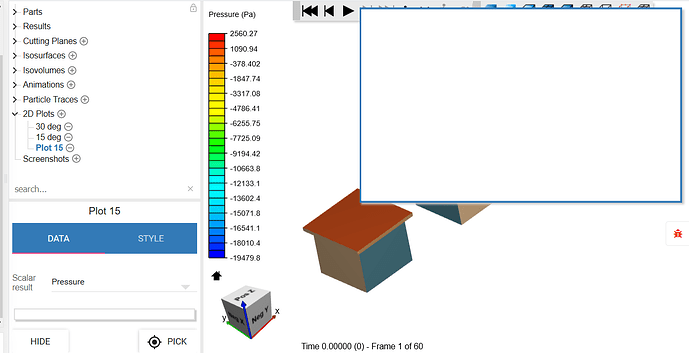

Plot: pressure
