I know this topic is solved but I wanted to test my recent upgrade to v205b of my yPlusHistogram programs’ ORSI feature on the force convergence shown in Post 4.

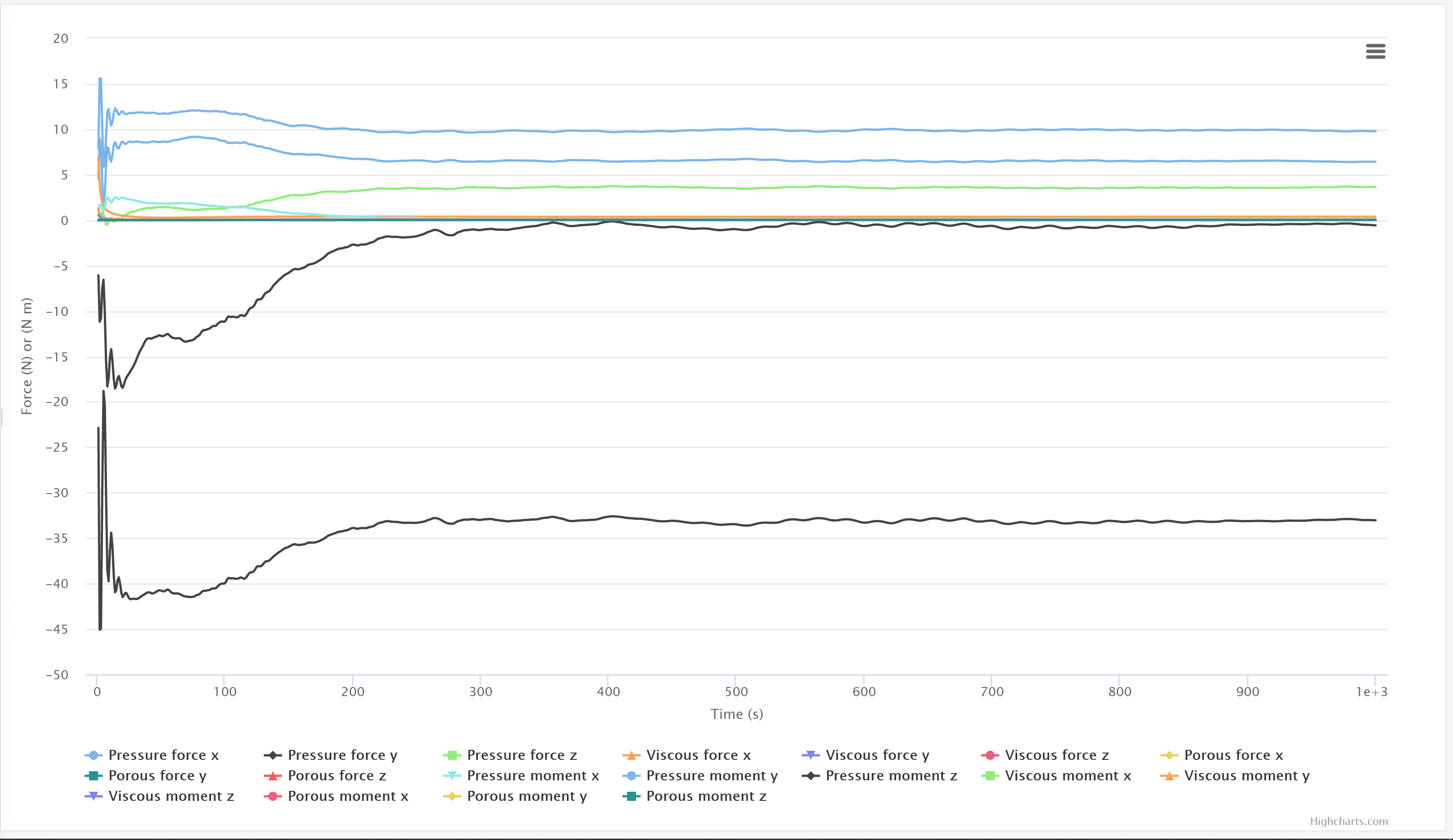

Here is SimScale representation of all the ‘Forces’ parameter convergence (this was also shown in Post 4):

ORSI_for_simscale.~forum~t~convergence-checking~94557_SimScaleView
ORSI_for_simscale.~forum~t~convergence-checking~94557_SimScaleView3190×1845 113 KB

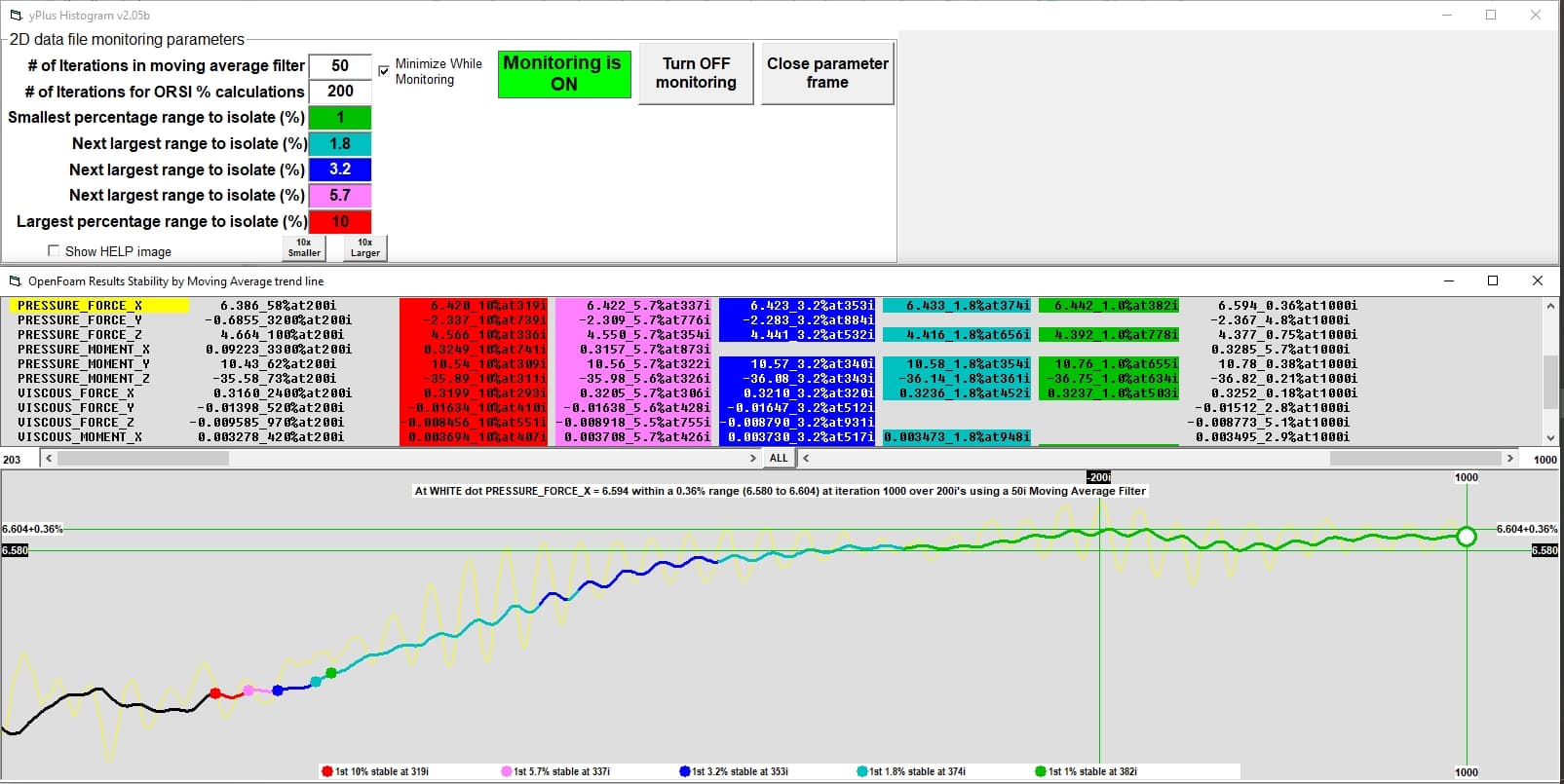

Here is the same data using the ORSI plotter graphing the selected yellow PRESSURE_FORCE_X results (in ORSI interface you can select all the other Force parameters but only 1 parameter can be plotted at once):

ORSI_for_simscale.~forum~t~convergence-checking~94557
ORSI_for_simscale.~forum~t~convergence-checking~945571605×805 140 KB

I would conclude that most of the Force parameters are extremely stable and ORSI allows a way to numerically quantify the stability of all the parameters individually.
