Can't see the model in the solution fields

Project Support
1

Hi,

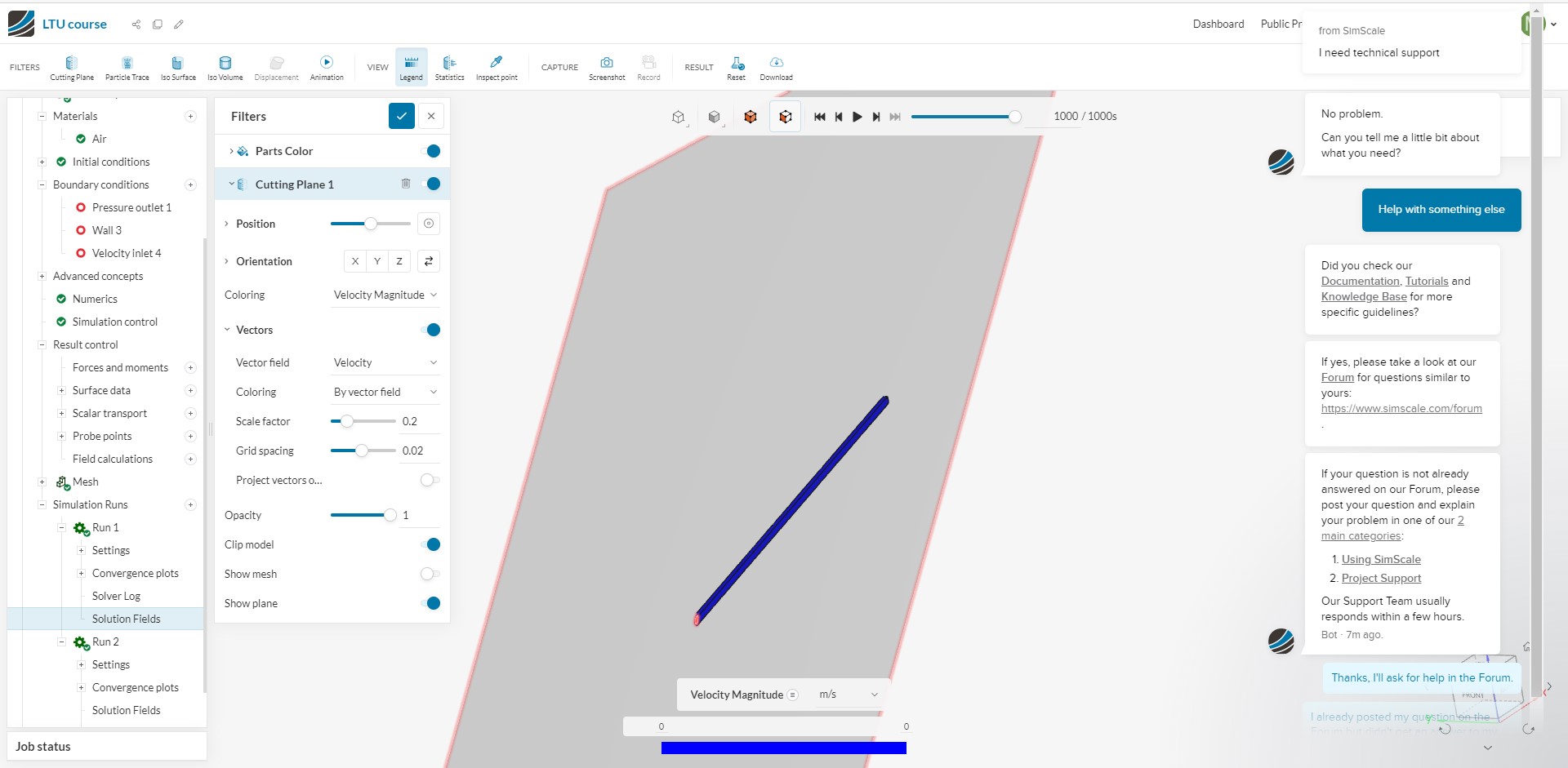

when I am looking at the solution fields, there is no model:

Solutions fields error
Solutions fields error1920×941 172 KB

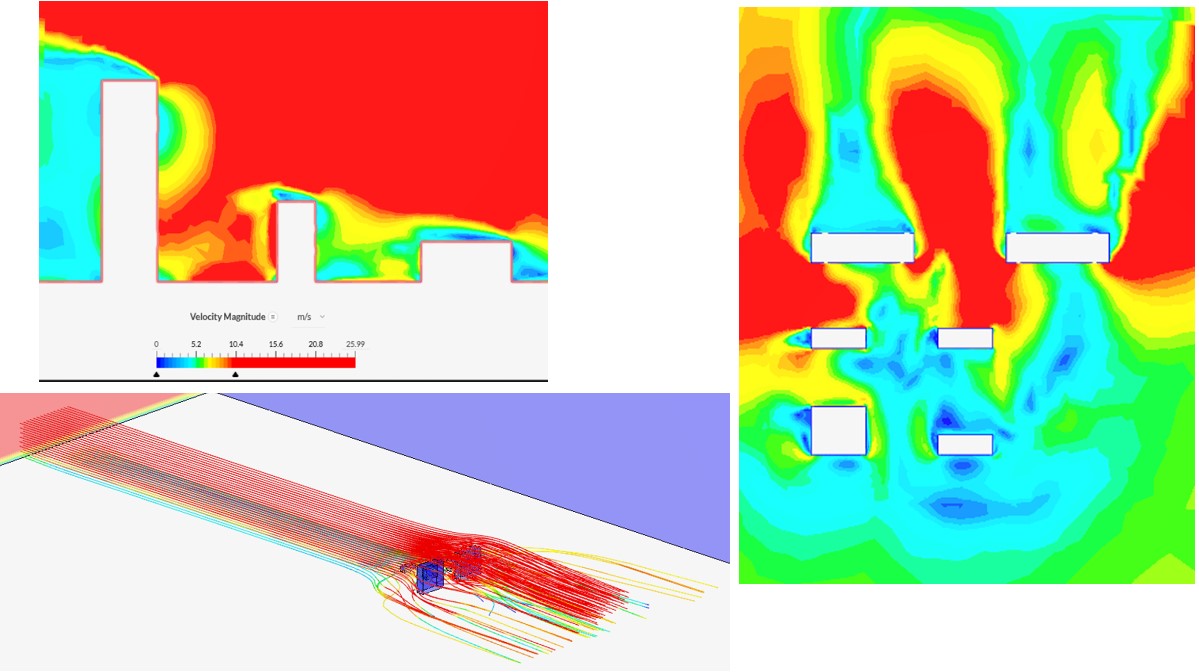

I am trying to visualize it as something like this:

Solutions fields aim
Solutions fields aim1199×672 121 KB

This is the project:
LTU course | SimScale Workbench

Many thanks
Matti

3

Hi Matti, are you using the third Geometry for your simulation? This one does not include any buildings.

Best regards,
Fillia

4

Hi Fillia,

do you mean I used the wrong settings when running the simulation?

Many thanks
Matti

5

Hi Matti, the geometry that you used for Run 1, which I suppose is deleted now, did not contain any buildings, so you will have to review your file prior to the meshing and simulation.

And always prefer STEP files, they work well :slight_smile:

Best regards,
Fillia

6

Hi Fillia,

thank you for your reply!

I have received the following response “consider cleanup operations in your CAD tool.” multiple of times, and I have amended the model many times now without success.

Can you se any obvious errors in my model?

Many thanks
Matti

7

Oh yes and I have joined the different parts into different solids in your online tool, where every solid representing a housing block.
