Validation of Wall Functions for Turbulent Pipe Flow with Roughness

Open Project
Copy Project
Validation of Wall Functions for Turbulent Pipe Flow with Roughness image
views 693
shares 4
Carlos_Ramirez
Carlos_Ramirez
Created

Last modified

Statistics
geometries 1 Geometry
meshes 3 Meshes
simulations 3 Simulation setups
runs 3 Results
About this project

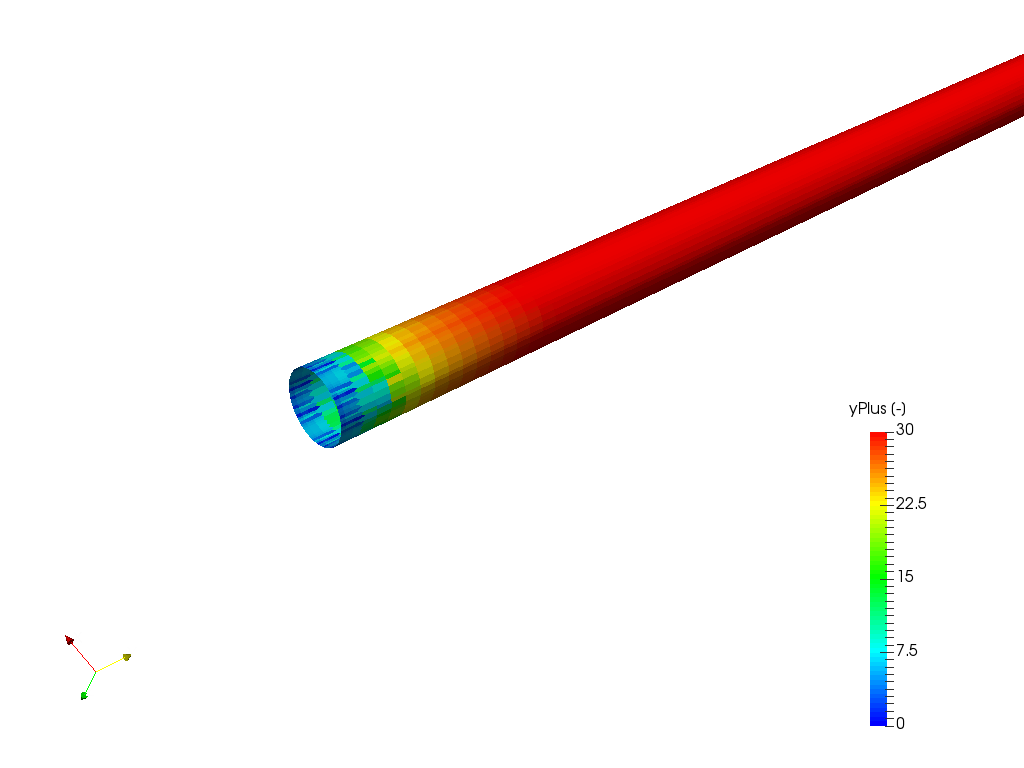

This project simulates turbulent flow through a straight circular pipes with differents roughnesses. Two turbulence models were used: kEpsilon and kOmegaSST. Simulation results from were validated using the Moody Diagram.
