Warp-by-vector - Post processing results in New Workbench

Using SimScale
1

Hi all,
This is Chandbasha. Since from past few days, I have been facing some problems in Post processing results of Workbench version. This is because In previous version Thre were some facilities like warp by vector, but now I didn’t find them. Even I didn’t find any tutorials saying that how to use the new version of post-processing results.
so some please help me out.

Regards
Chand.

2

Hi Chand!

Tutorials for the new post-processor can be found here: New Integrated Post-Processing Environment. For your case, can you please let us know on which quantity you want to apply the filter on then I would show it to you in a step-by-step tutorial.

Cheers,

Jousef

3

Hi jousef ,
Thanks for sharing the tutorial details. I want generate warp by vector for Displacement. I want to see the geometrical shape before and after load.

Regards
Chand

4

Hi Chand,

here an easy example:

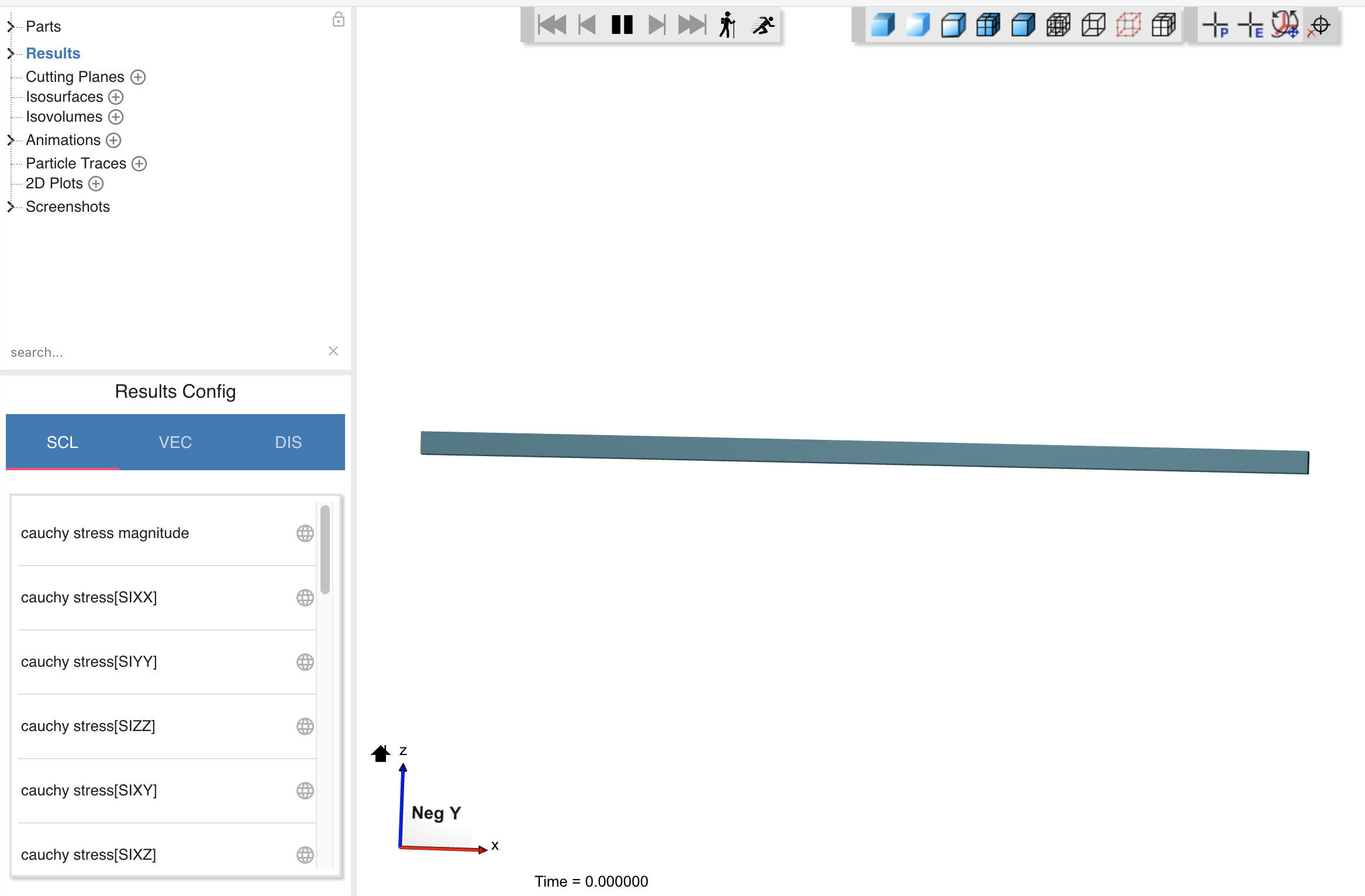

\underline{\text{1. Choose displacement as a result field}}

PP-1
PP-12334×1532 239 KB

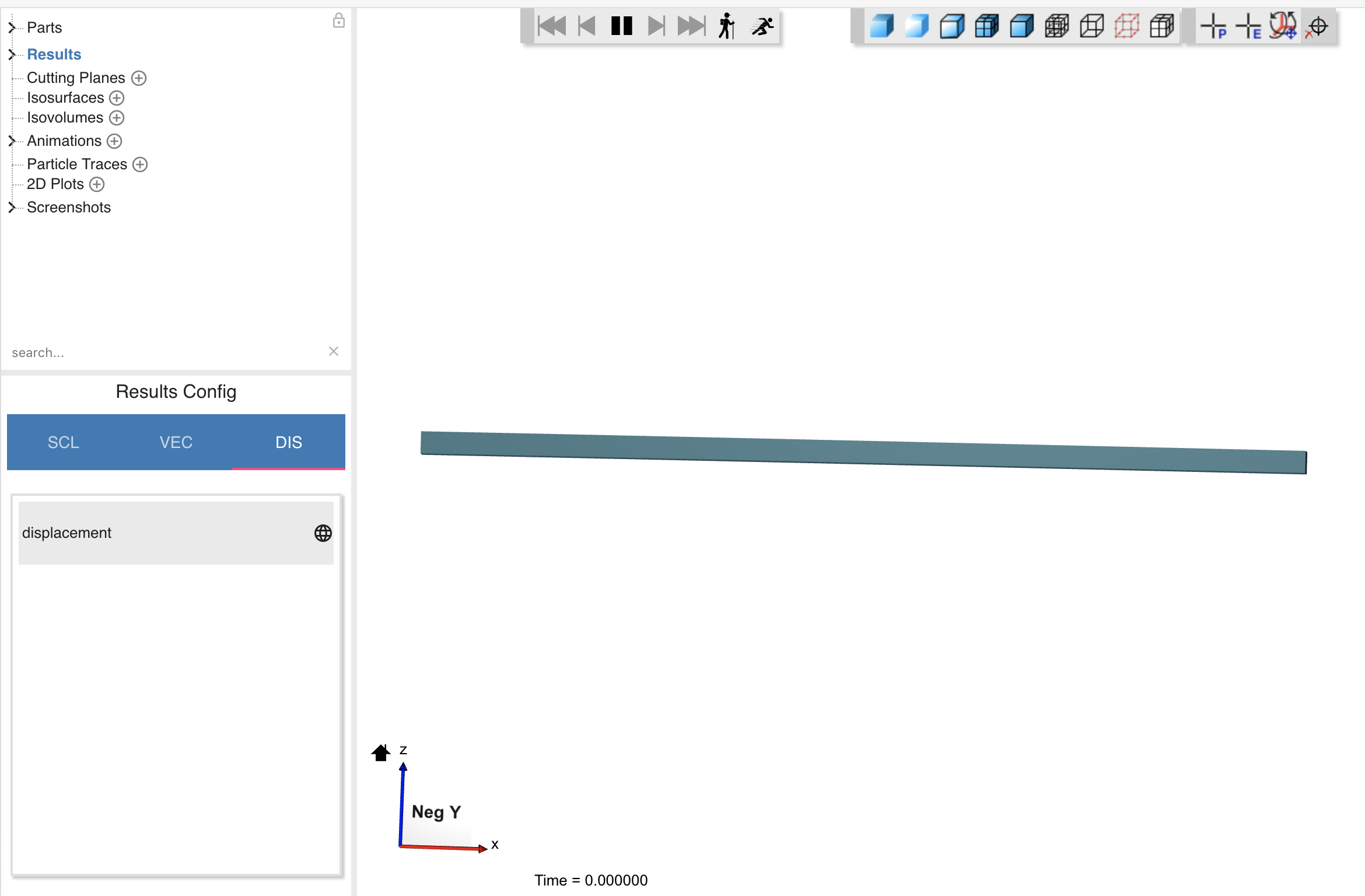

\underline{\text{2. Make displacement the global active field}}

PP-2
PP-22340×1536 202 KB

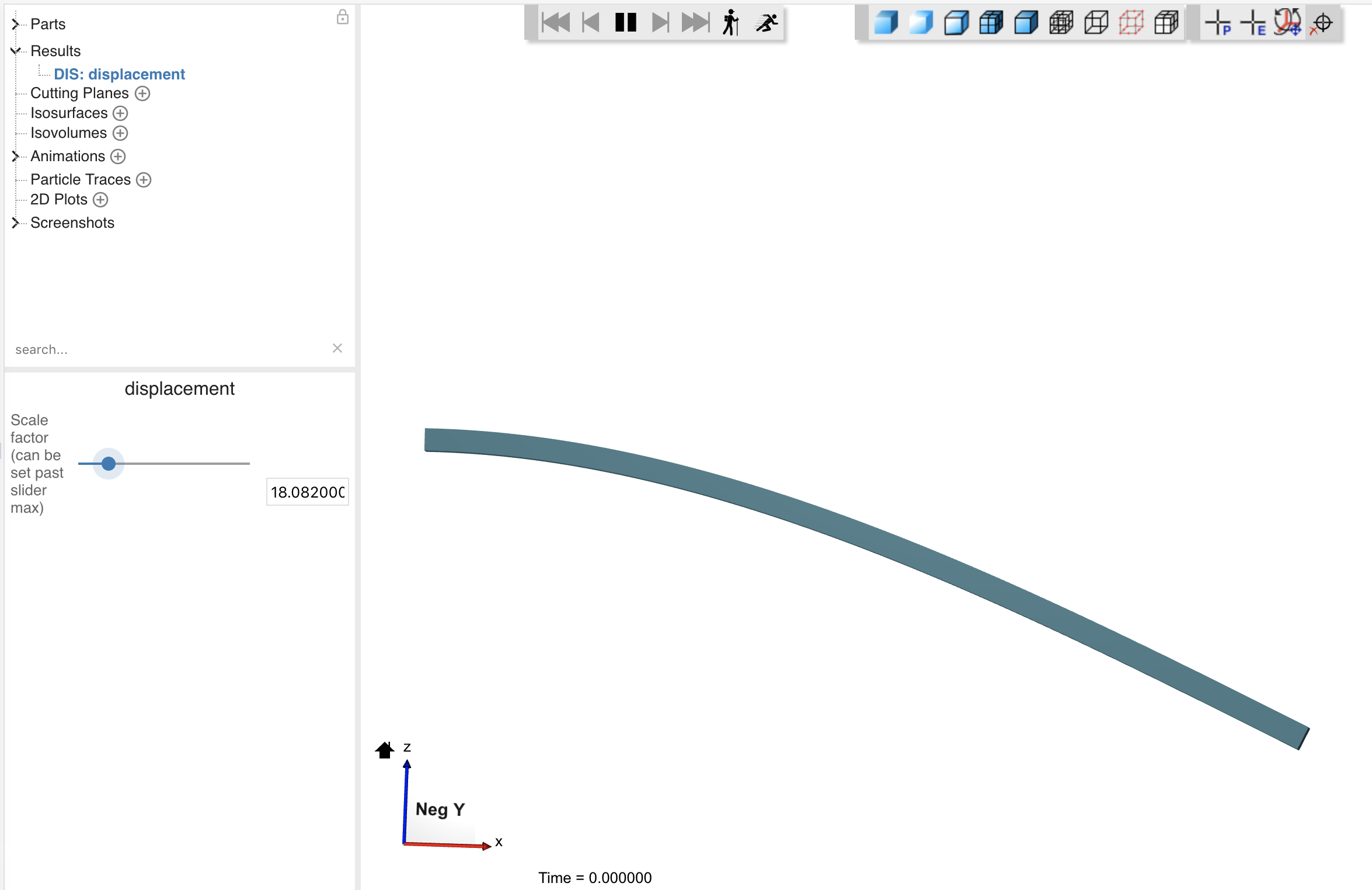

\underline{\text{3. Choose the magnitude}}

PP-3
PP-32350×1524 221 KB

Hope this helps.

Jousef

5

Hi Jousef,
Thank you very much

Regards
Chand.
