Von Mises Stress Problem

Project Support
1

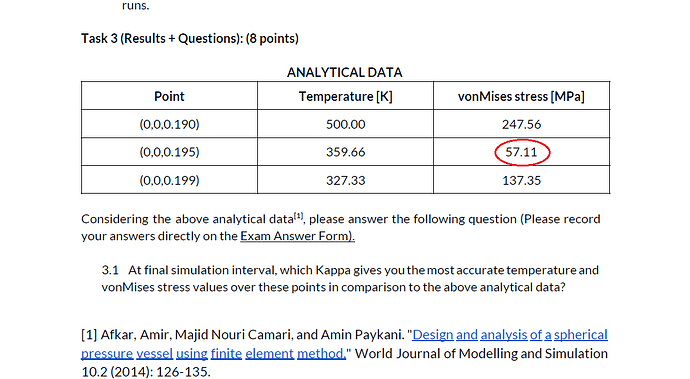

while doing this exercise, no matter how fine mesh I adapt for point 2 the achieved von mises stress is way too higher than the given one, I am having a doubt on the von mises stress given for point 2. Because from point 1 to point 2 its decreasing drastically again from point 2 to point 3 its increasing drastically. So is the provided value of point 2 for von mises stress correct?

Thank You

Simscale
Simscale1094×601 40.5 KB

Project Link: Https://www.simscale.com/workbench/?publiclink=46ca6160-221a-4aa9-b77c-8dda4db8778d#tab_2-0

2

Hi @redwanpranto15,

Tagging @jousefm who may be able to help you resolve this issue.

Cheers!

Regards,
Barry

3

Hi @redwanpranto15!

You may have a look at the validation reference here: Spherical Pressure Vessel - Thermomechanical Analysis. On the bottom you can see the plots for the temperature and the von Mises stresses.

Tell me if that helped!

Best,

Jousef

1 Like
4

Thanks for the reference, I have reviewed it and it seems that I need to check my simulation and simulate again.

1 Like
