Velocity divergence error

Project Support
1

Hi there,

I’m currently working on a Francis Turbine (using onshape for the CAD design) and am getting a velocity divergence error when simulating.

The link to the workspace is:

Francis Turbine I Inch V7

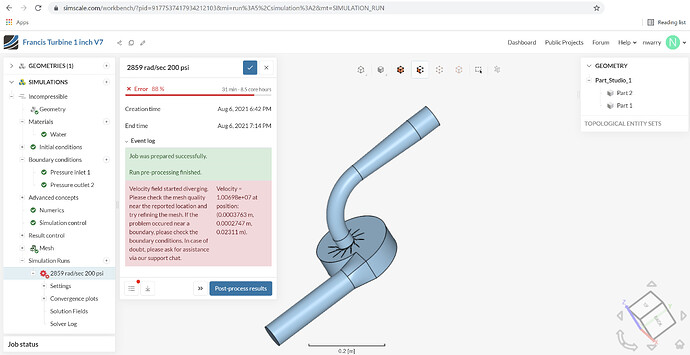

Simscale error 06 August 2021
Simscale error 06 August 20213823×1968 554 KB

Thanks in advance for the help to get this working.

Nick

2

Hello Nick,

Have you already gone through the usual troubleshooting steps shown in this article? It talks about the same type of error that you ran into.

Cheers
