How to hide enclosure after post processing

ksoma · May 27, 2020, 10:54am

I have done external compressible simulation on an aircraft. How can I view the colourful result display:p directly on the aircraft instead of using cutting planes. Please help me out.

I want it like in this picture

jousefm · May 27, 2020, 1:17pm

CFD Squad, can you give our user an easy instruction on how to achieve this? We actually need to add this as a video in the FAQs soon, noted!

Best,

Jousef

ksoma · May 27, 2020, 2:35pm

thanks a lot @jousefm

Ricardopg · May 29, 2020, 12:17am

Hey!

The trick is to show all solid walls and hide the flow region. It’s done like this:

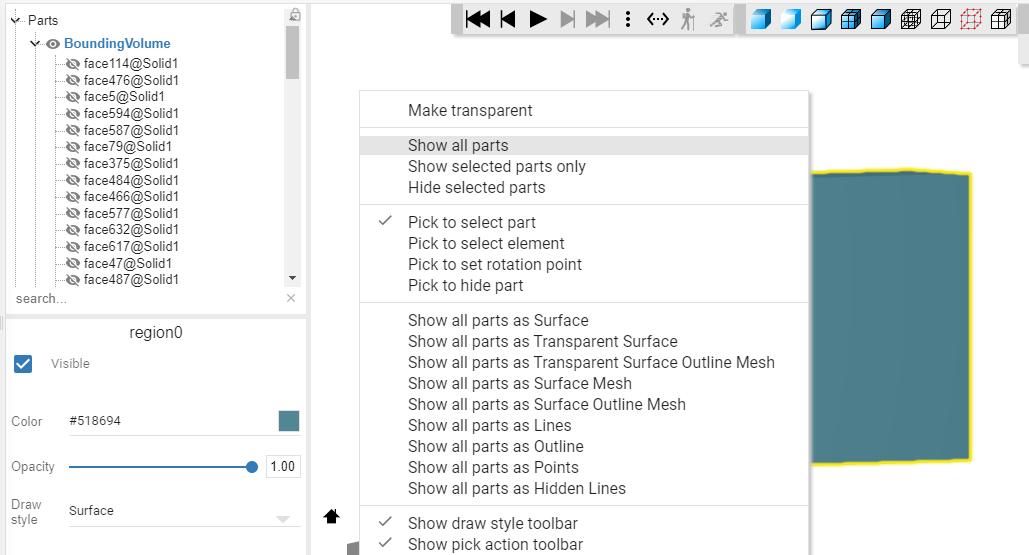

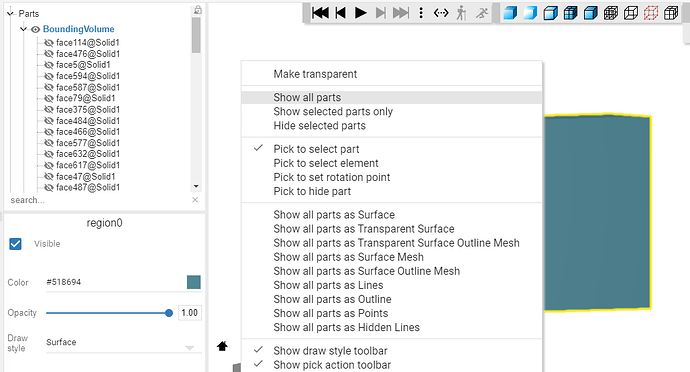

Right click + show all parts:

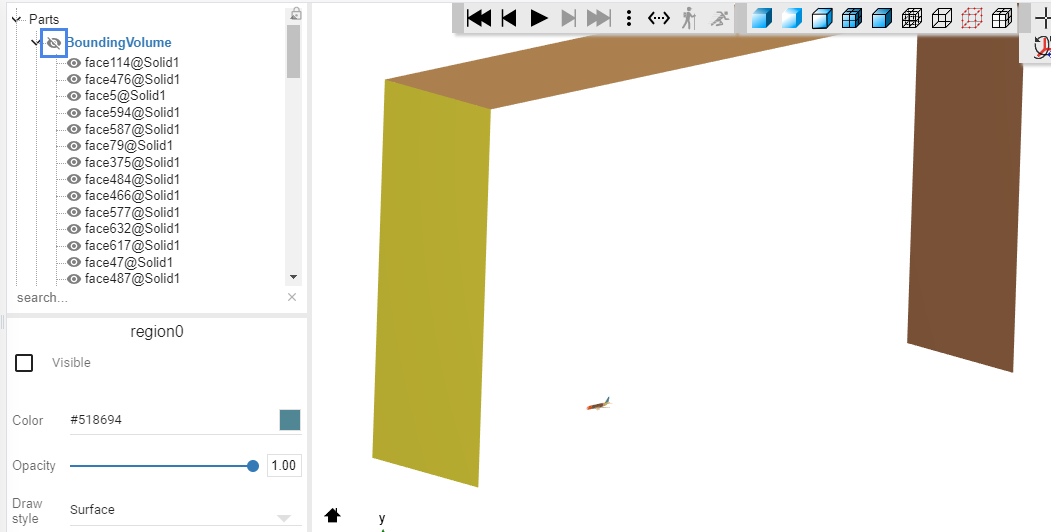

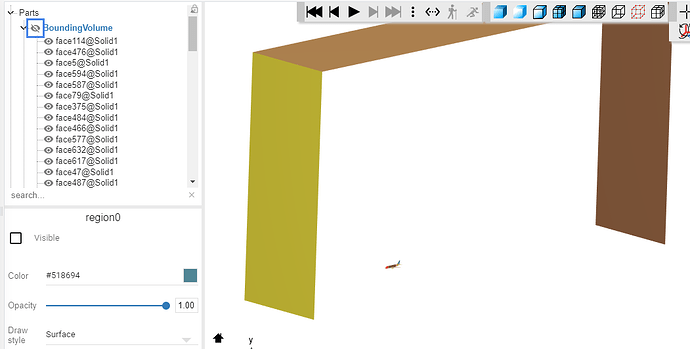

Hide the flow region and some of the enclosure walls:

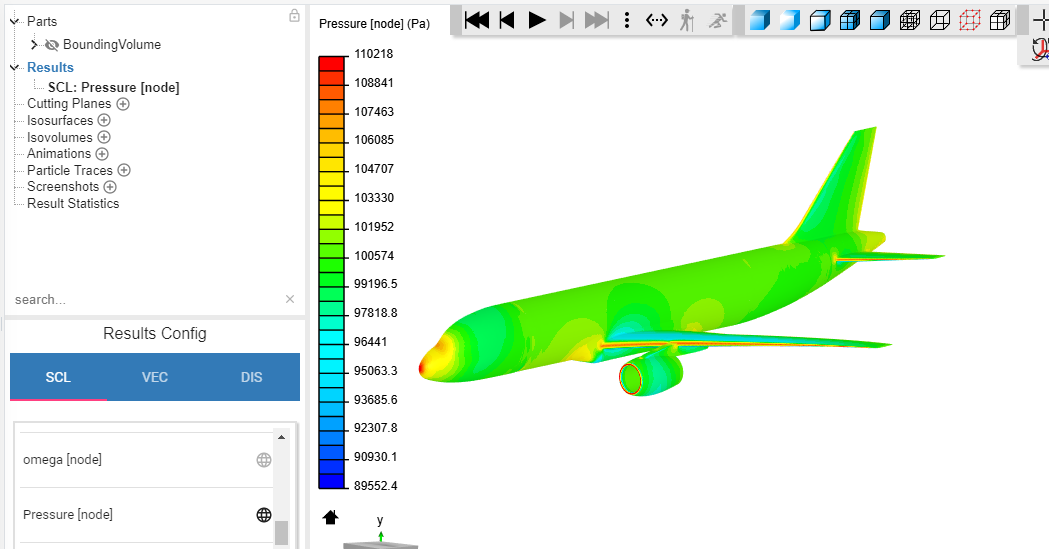

Select the desired parameter under results and that’s it:

ksoma · June 2, 2020, 8:04am

@Ricardopg thank you. It worked!
