Error codes when applying the external flow volume or looking for interferences

Using SimScale Fluid Flow / CFD
1

Hi,

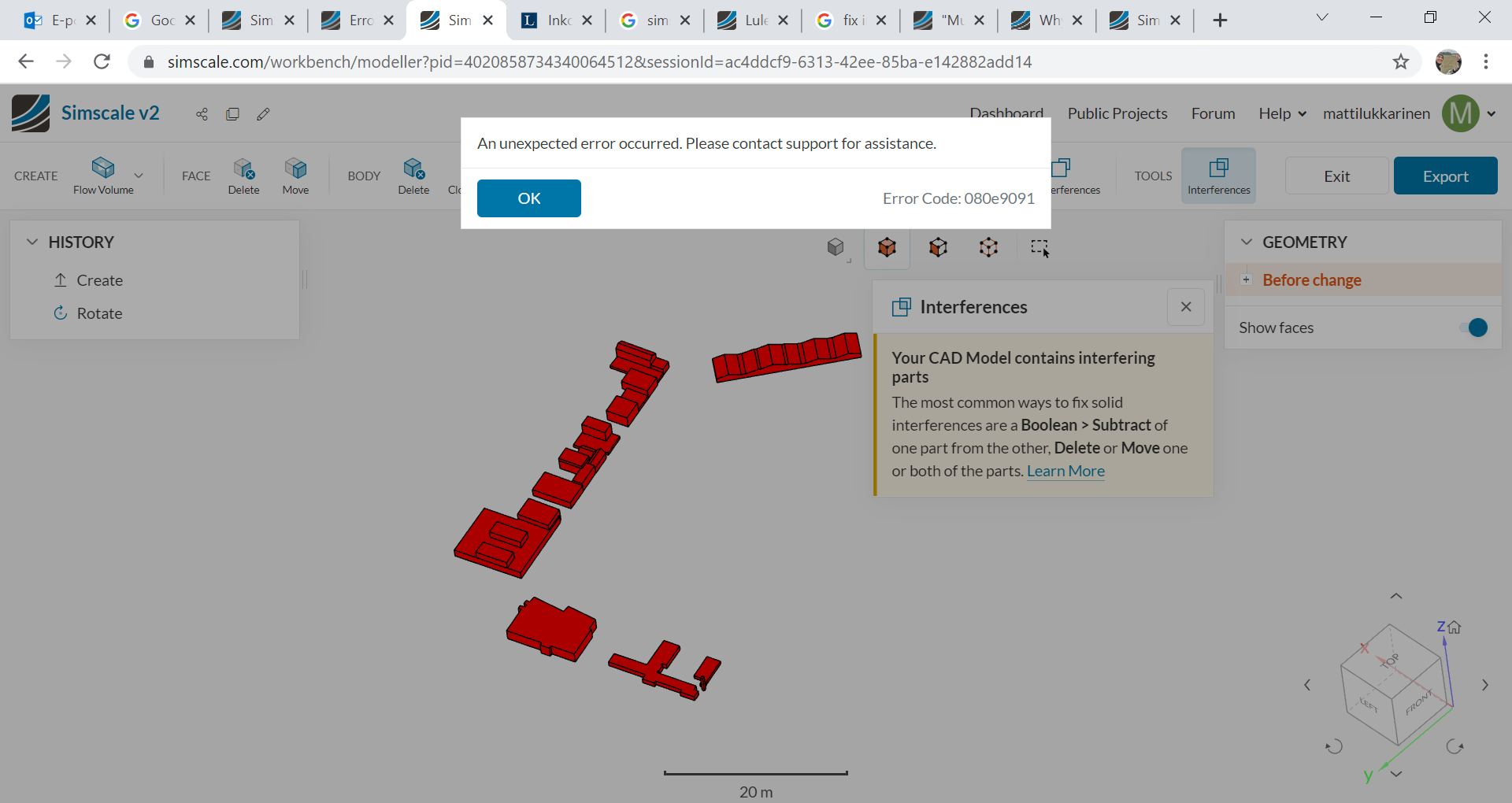

I receive a error message when trying to apply my external flow volume on my model:

image1920×1020 121 KB

Found in the forum it could be because of interferences, however I receive the following error message:

image1920×1020 113 KB

Do you know how to solve this?

My project:

Thanks
Matti

2

Hey Matti, and thanks for using the forum.

I will investigate the issue and reach back later.

1 Like
4

Hi,

have you found any solution to this?

Thanks
Matti

5

Hi Matti, and sorry for the late reply.

I made some tests and trials but could not find a solution.

Could you please try to export your model in a solid format such as Parasolid or STEP? Also make sure that all the exported parts in the model are solids and not surfaces.

6

Hi,

thank you for your reply!

I cant find any option in either Revit or AutoCAD to export those formats.

Is there any other solution?

Thanks

Matti

7

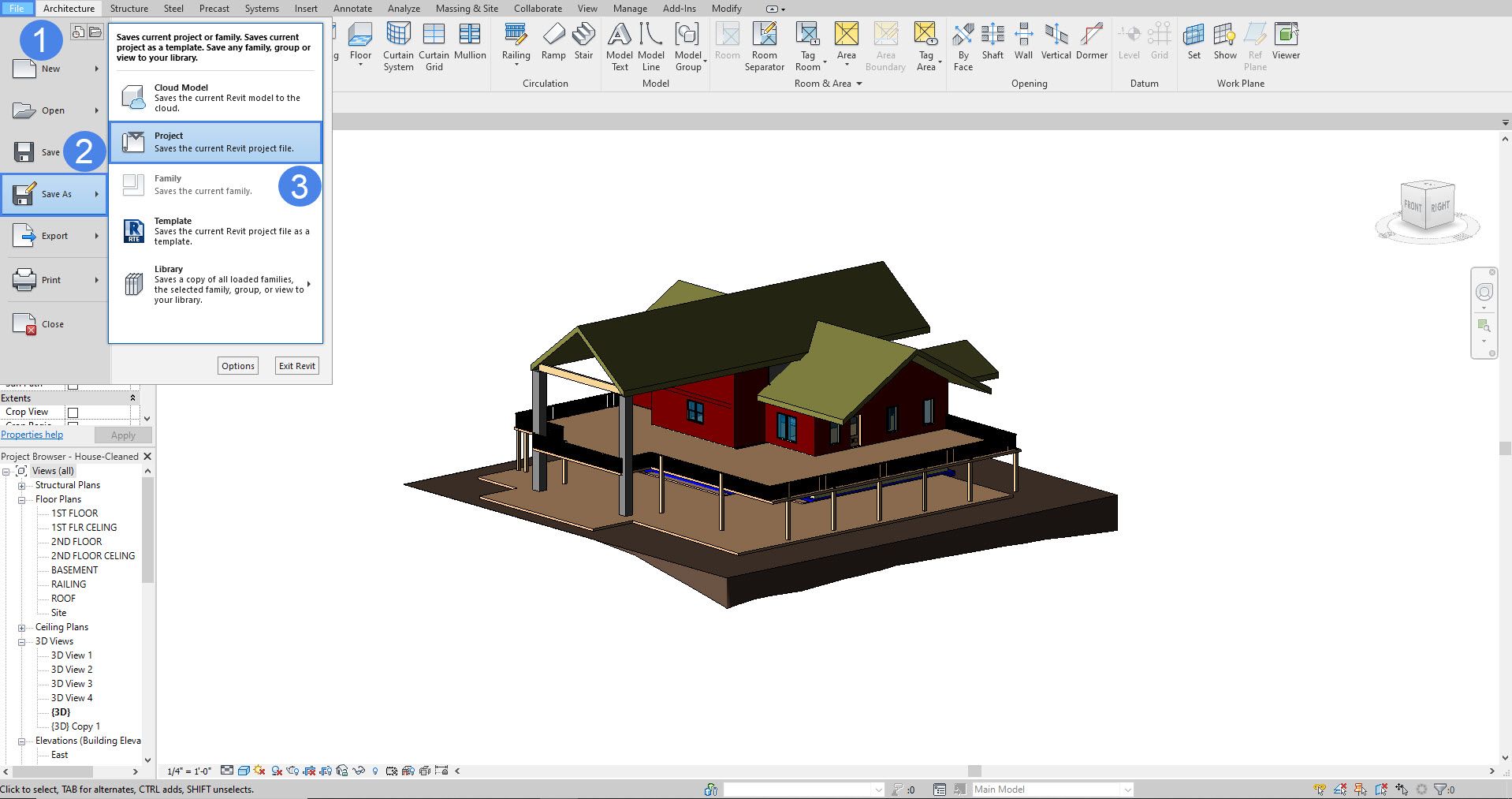

Perhaps this article could give you some ideas on how to use a Revit model for CFD:
