'Apenas Full_1' simulation project by ib01

#1

I created a new simulation project called 'Apenas Full_1':

Apenas Full simulacao escoamento externo


More of my public projects can be found here.

#2

Hi @ib01,

I just took a look at your model - there seems to be an issue at the front of the aircraft:

There is a face missing which means that the geometry is not watertight, which leads to the fact that mesh is actually generated on both sides of the model:

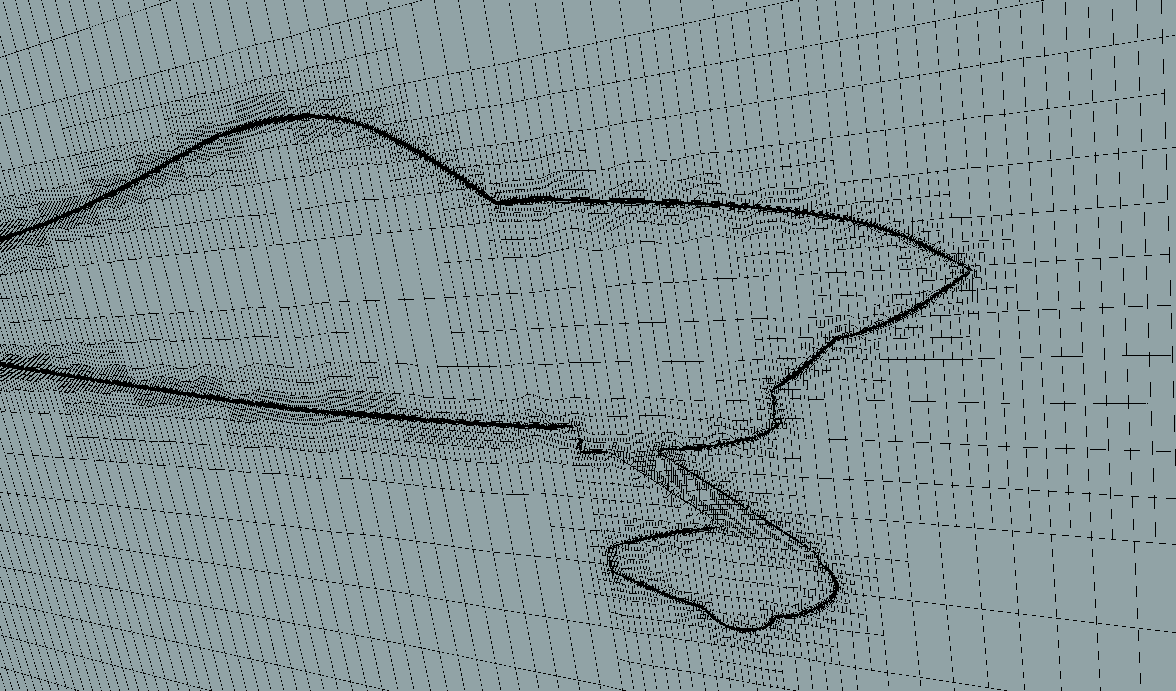

Screenshot - 19.10.2016 - 17:35:46.png1176x691 42.2 KB

Once you fix this face, the sim will be straightforward. What CAD system are you using? Where did you export this STEP file from?

Best,

David

#3

Hey David! Thank you for the heads up! Very thoughtful of you. Something probably went wrong during the file upload. Now it seems to be ok. Thanks again.

p.s.: I’m using solidworks.

Regards.

Igor
